Crimp J110, main harness: Location:

In branching point to the 24-pin connectors

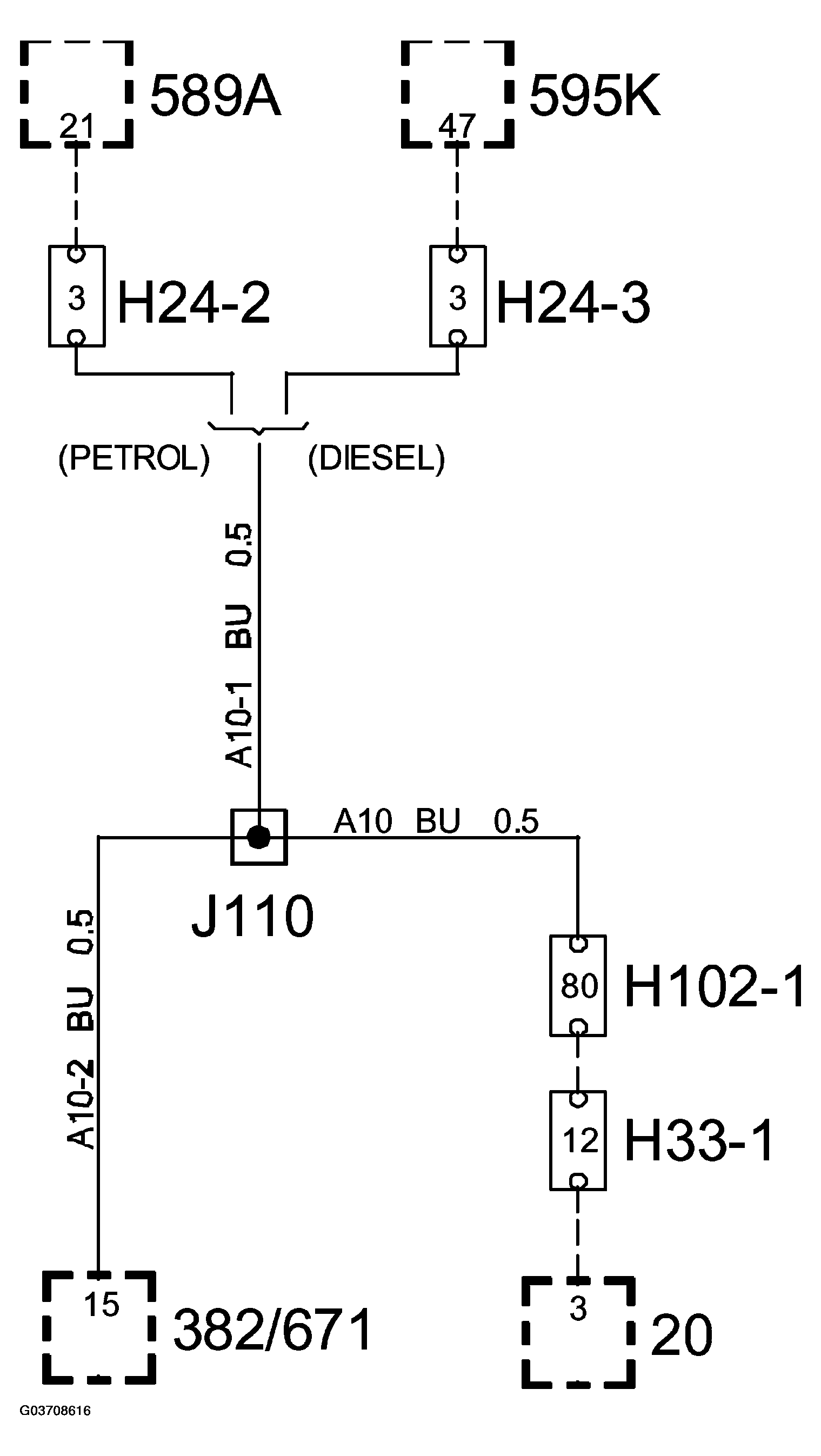

Fig 1: Crimp J110 Main Harness Wiring Diagram
G03708616Courtesy of SAAB-SCANIA OF AMERICA, INC.
