To fit

  1. Fit the sensor with a new O-ring sparingly lubricated with Vaseline.

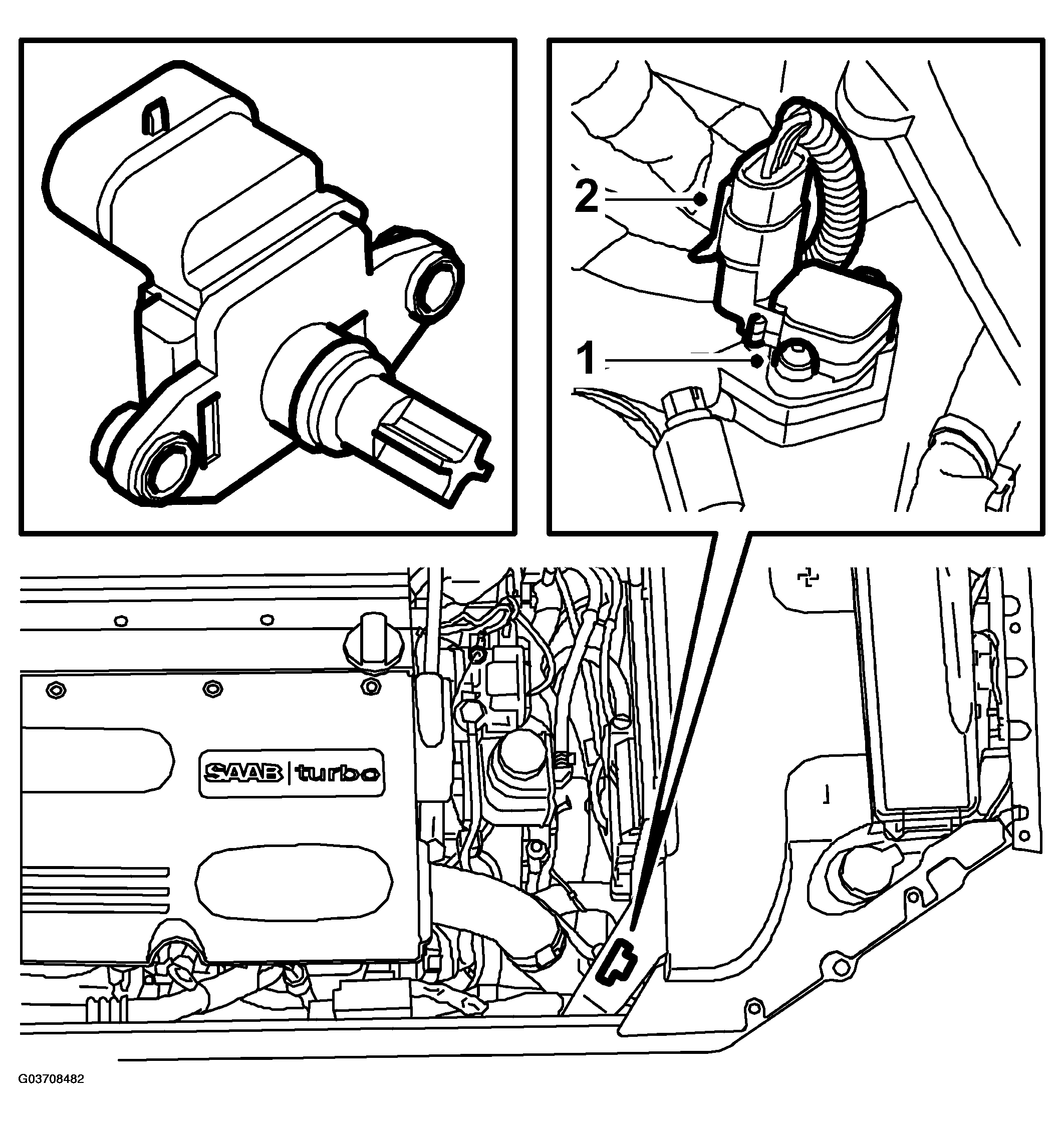

    Fig 1: Illustration For Step 1-2
    G03708482Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the connector.
