To remove

  1. Remove the upper engine cover.

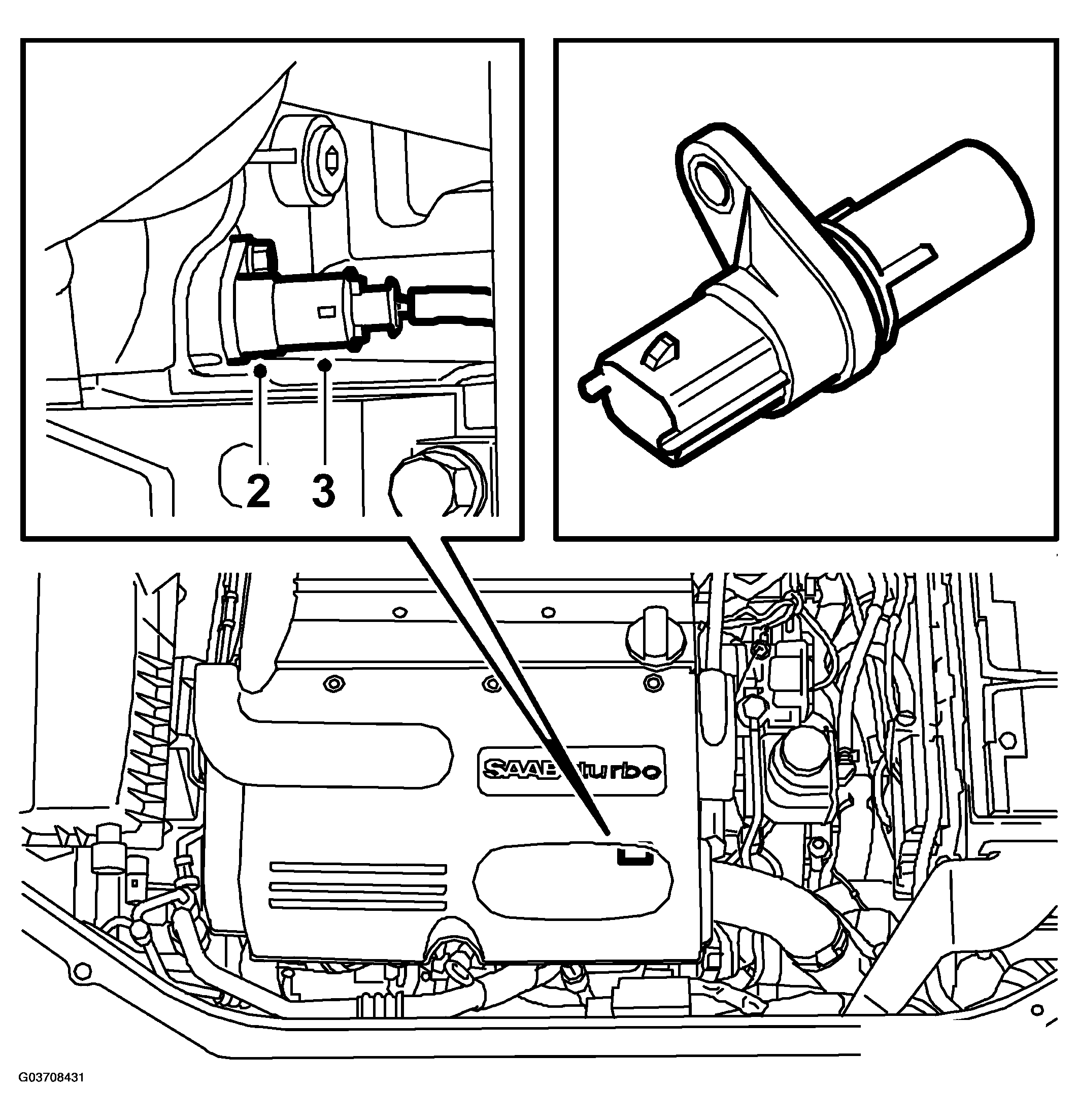

    Fig 1: Illustration For Step 2-3
    G03708431Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the crankshaft position sensor.
  3. Unplug the crankshaft position sensor connector.
