To fit

  1. Fit the sensor to the mounting.

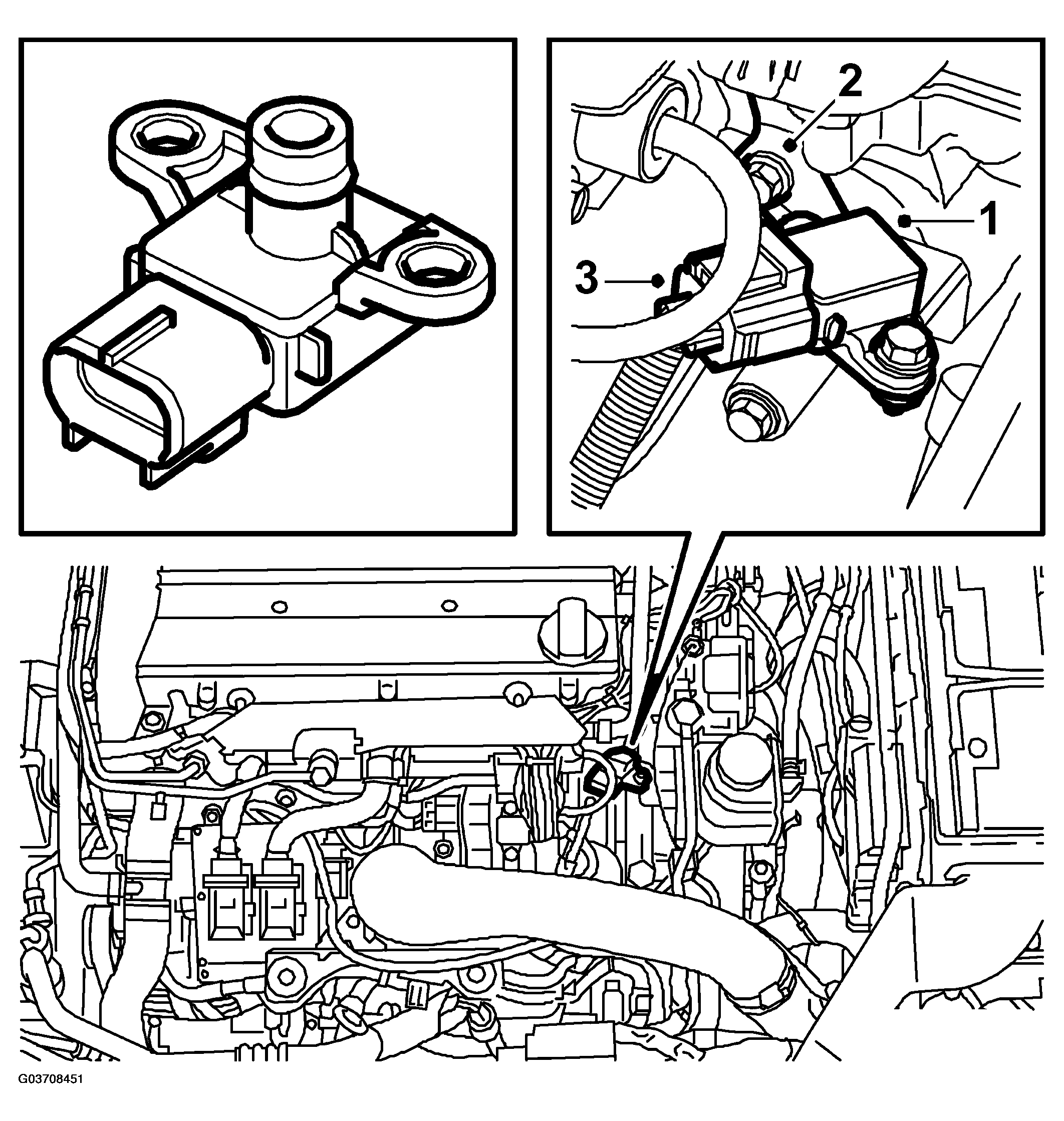

    Fig 1: Illustration For Step 1-3
    G03708451Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Tighten the mounting to the cylinder head.
  3. Attach the connector.
  4. Replace the upper engine cover.

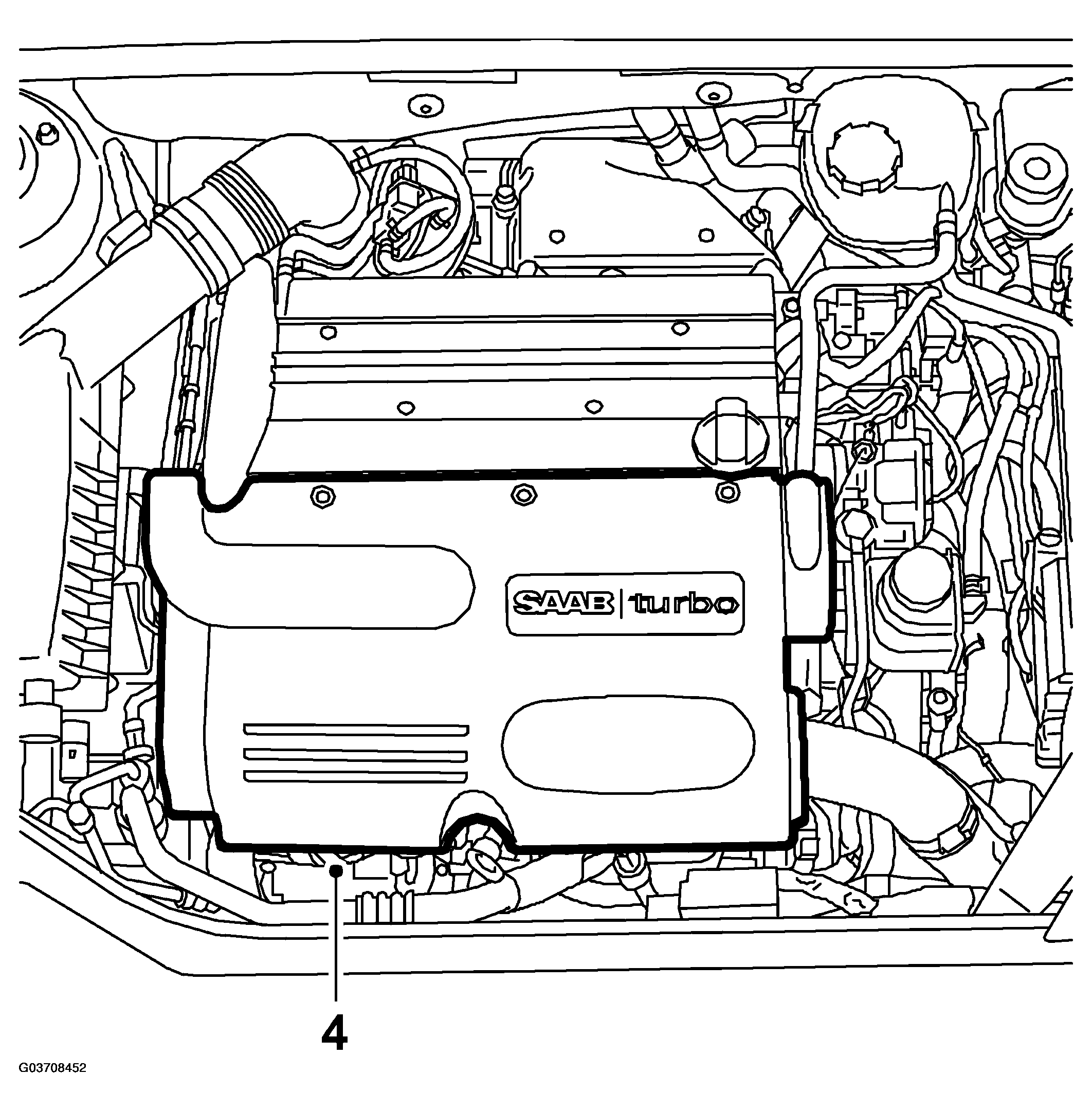

    Fig 2: Illustration For Step 4
    G03708452Courtesy of SAAB-SCANIA OF AMERICA, INC.
