Main components, cooling system

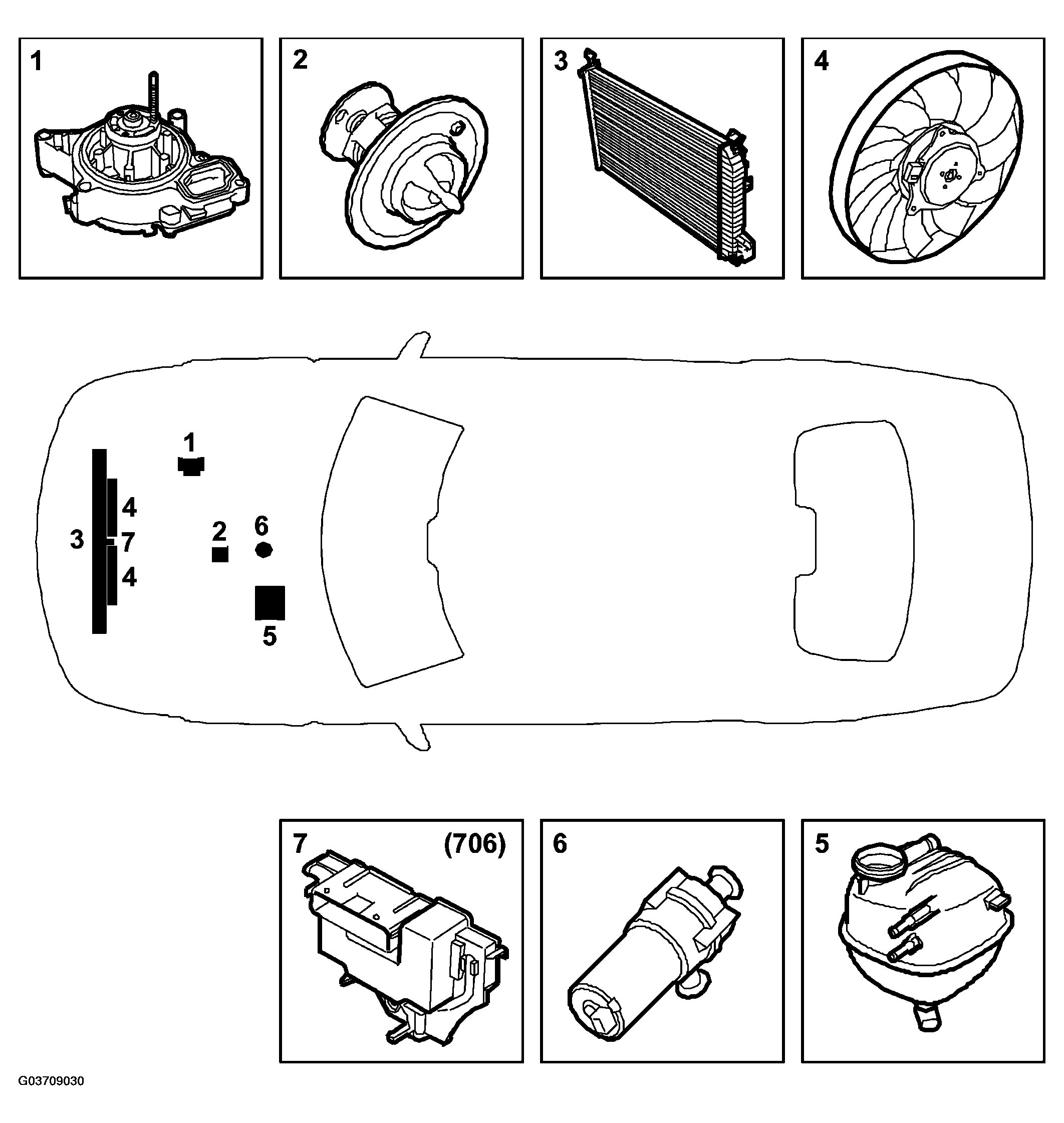

Fig 1: Identifying Cooling System Main Components
G03709030Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Water pump
  2. Thermostat
  3. Radiator
  4. Radiator fans (2 off)
  5. Expansion tank
  6. Coolant pump
  7. Radiator fan module (706)
