Power supply, ground and bus communication

PIN SIGNAL TYPE DESCRIPTION

Pin no. Signal type Description
1 (K18) I-bus
7 (K12) Power supply, +30 From main fuse box (701) in luggage compartment pin 1 via fuse 21
8 (K12) Ground Grounding point G3

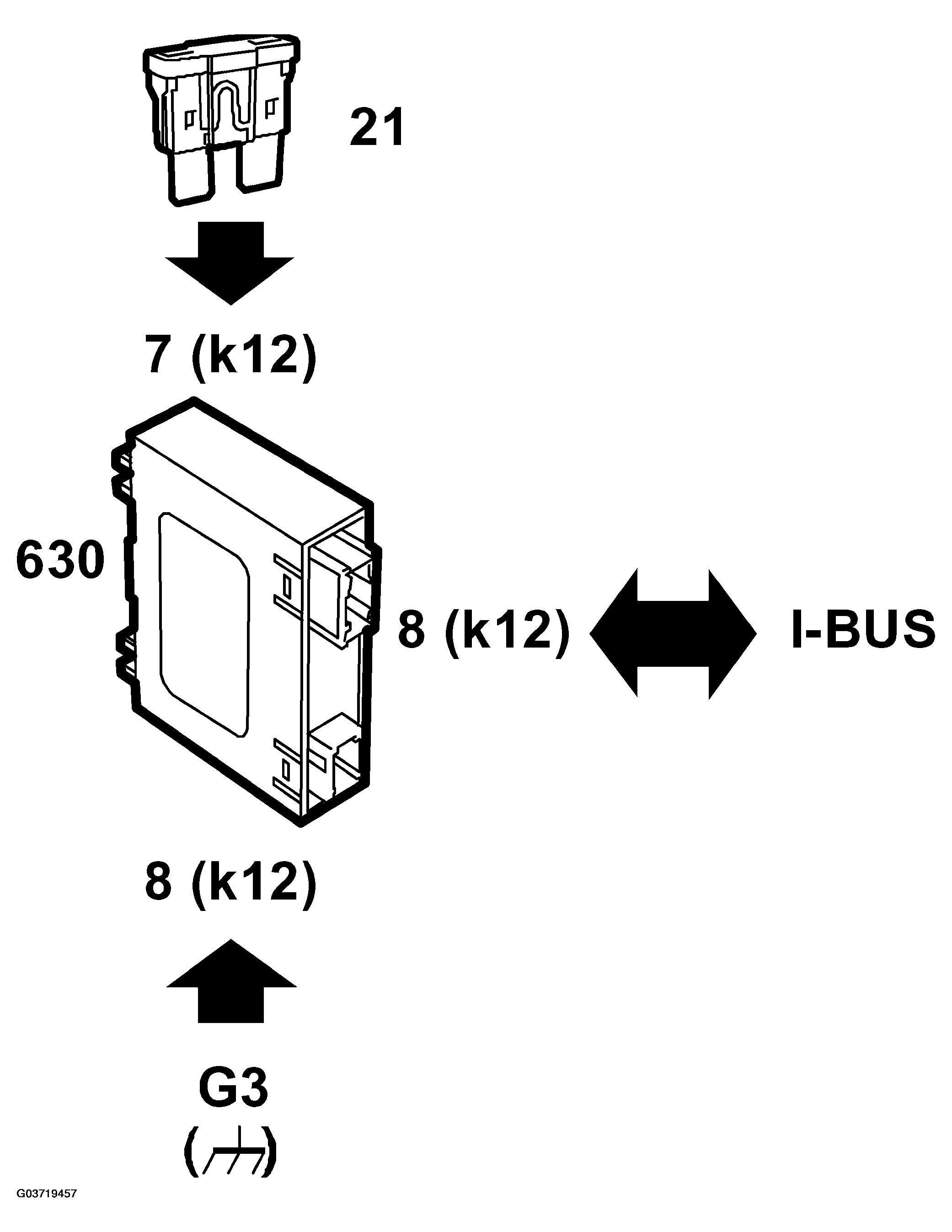

Fig 1: Identifying SPA Control Module Communication Diagram
G03719457Courtesy of SAAB-SCANIA OF AMERICA, INC.

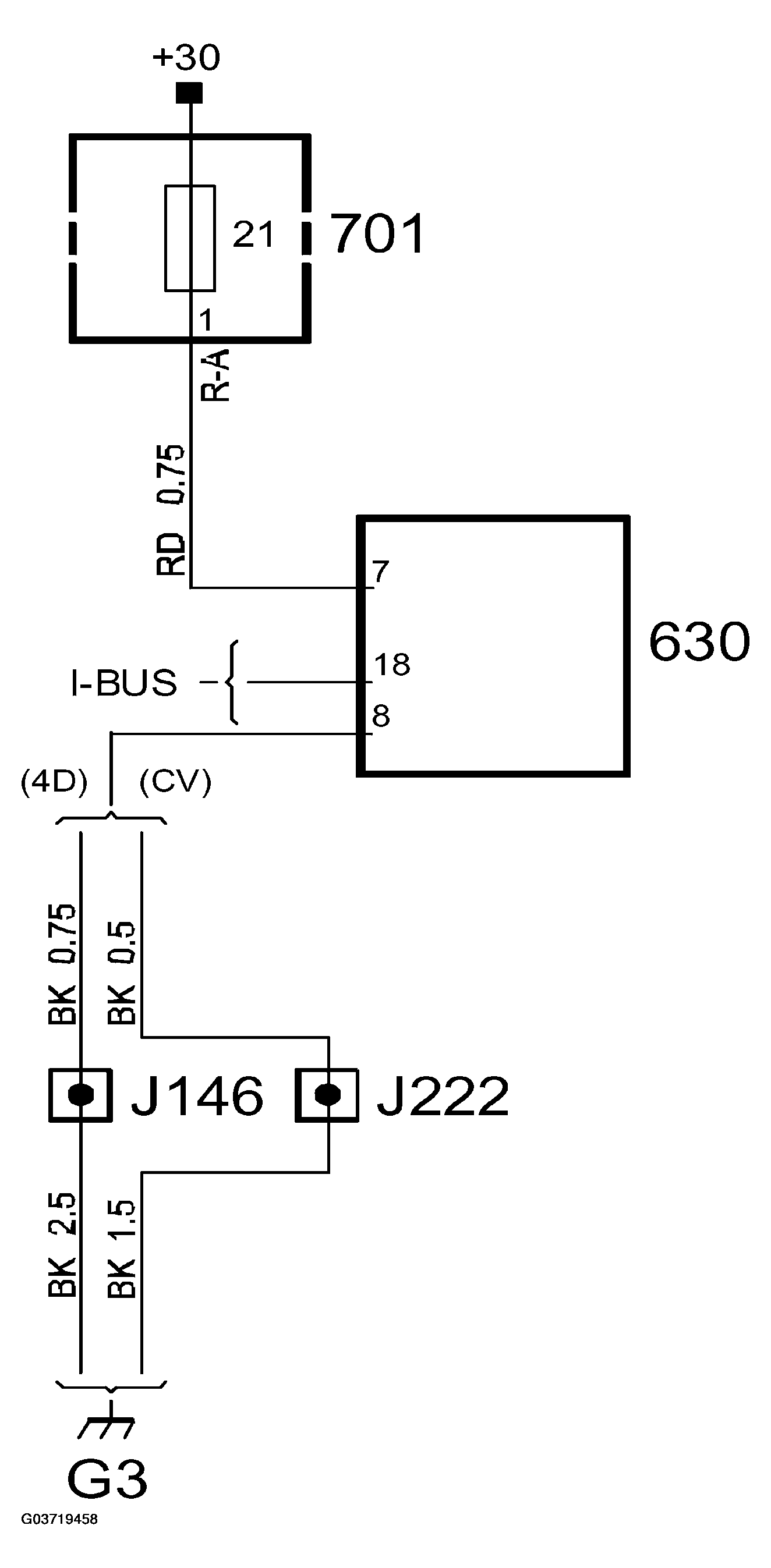

Fig 2: Identifying SPA Control Module Circuit Diagram
G03719458Courtesy of SAAB-SCANIA OF AMERICA, INC.
