Power supply, ground and bus communication

PIN NUMBER SPECIFICATION

Pin number Signal type Description
58 Power ground Power supply
59 +30 power Power supply
39 Instrument bus Signal to and from other control modules

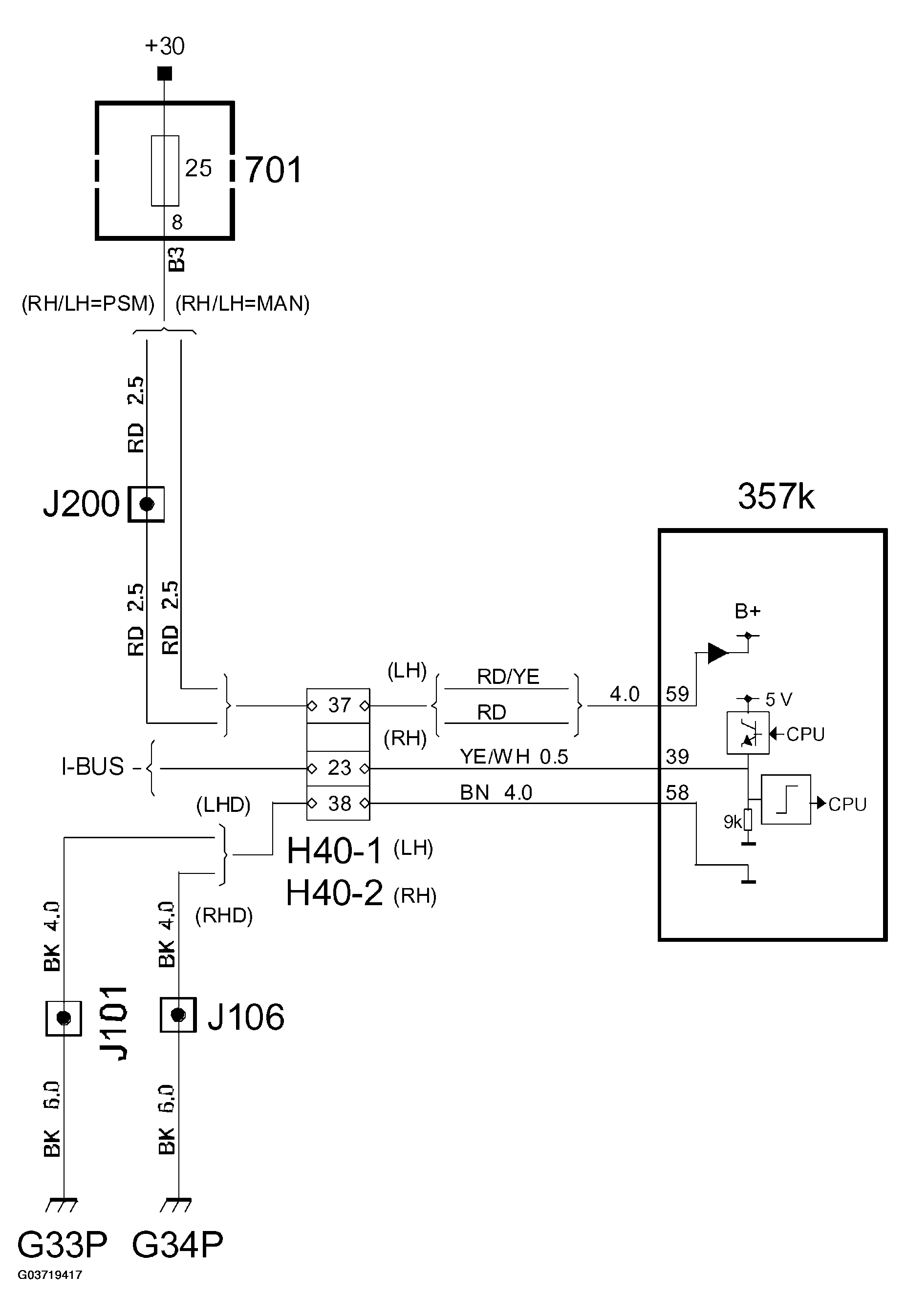

Fig 1: Identifying Seat Control Module Circuit Diagram
G03719417Courtesy of SAAB-SCANIA OF AMERICA, INC.
