Backrest rake motor: Removing

  1. Remove the seat.
  2. Remove front seat side panel.
  3. Remove the cover on the same side as the seatbelt buckle.
  4. Unplug the motor.
  5. Remove the upper and lower clip from the motor.

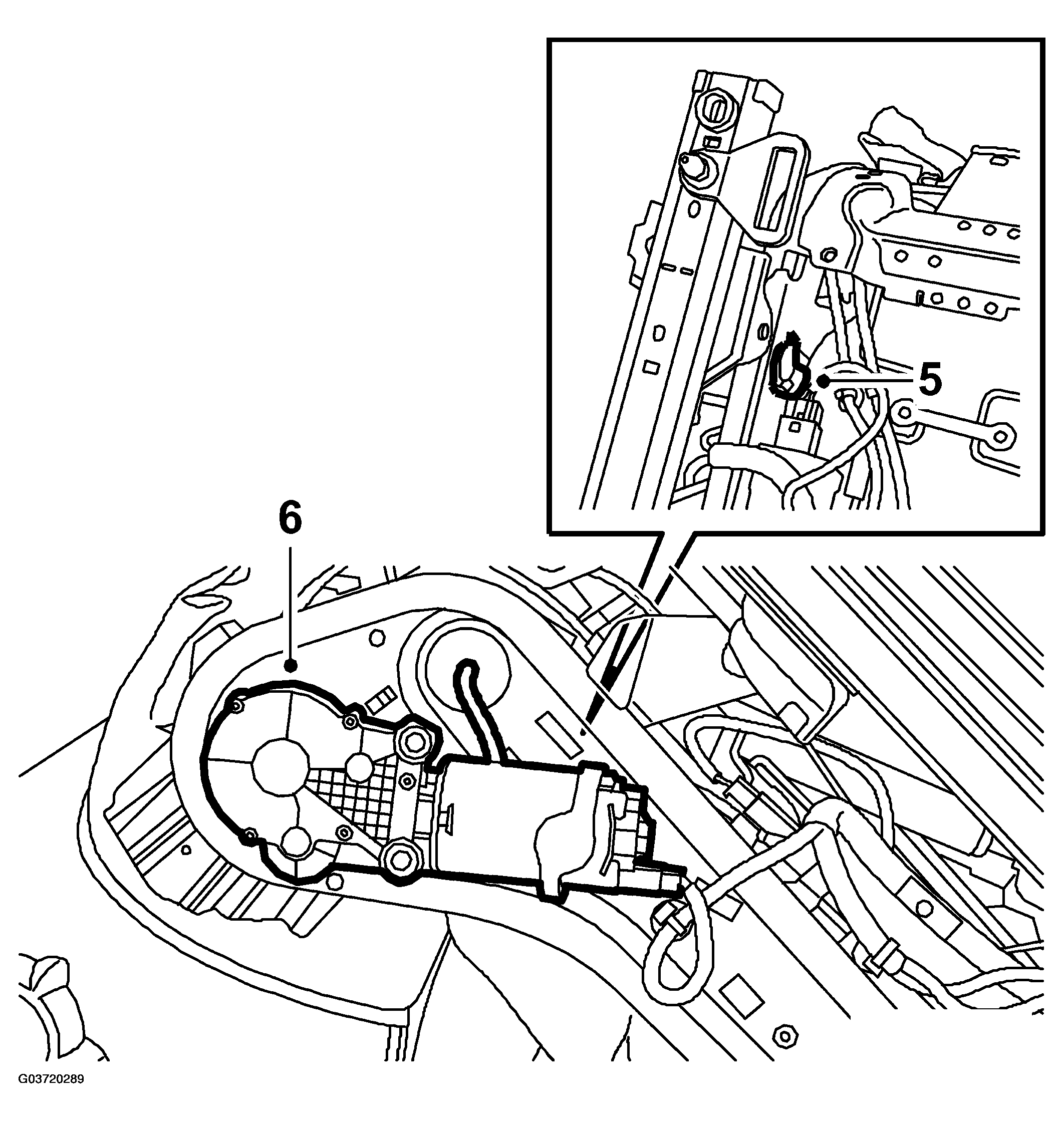

    Fig 1: Illustration For Steps 5-6
    G03720289Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Pull the backrest rake motor straight up.
