Main components

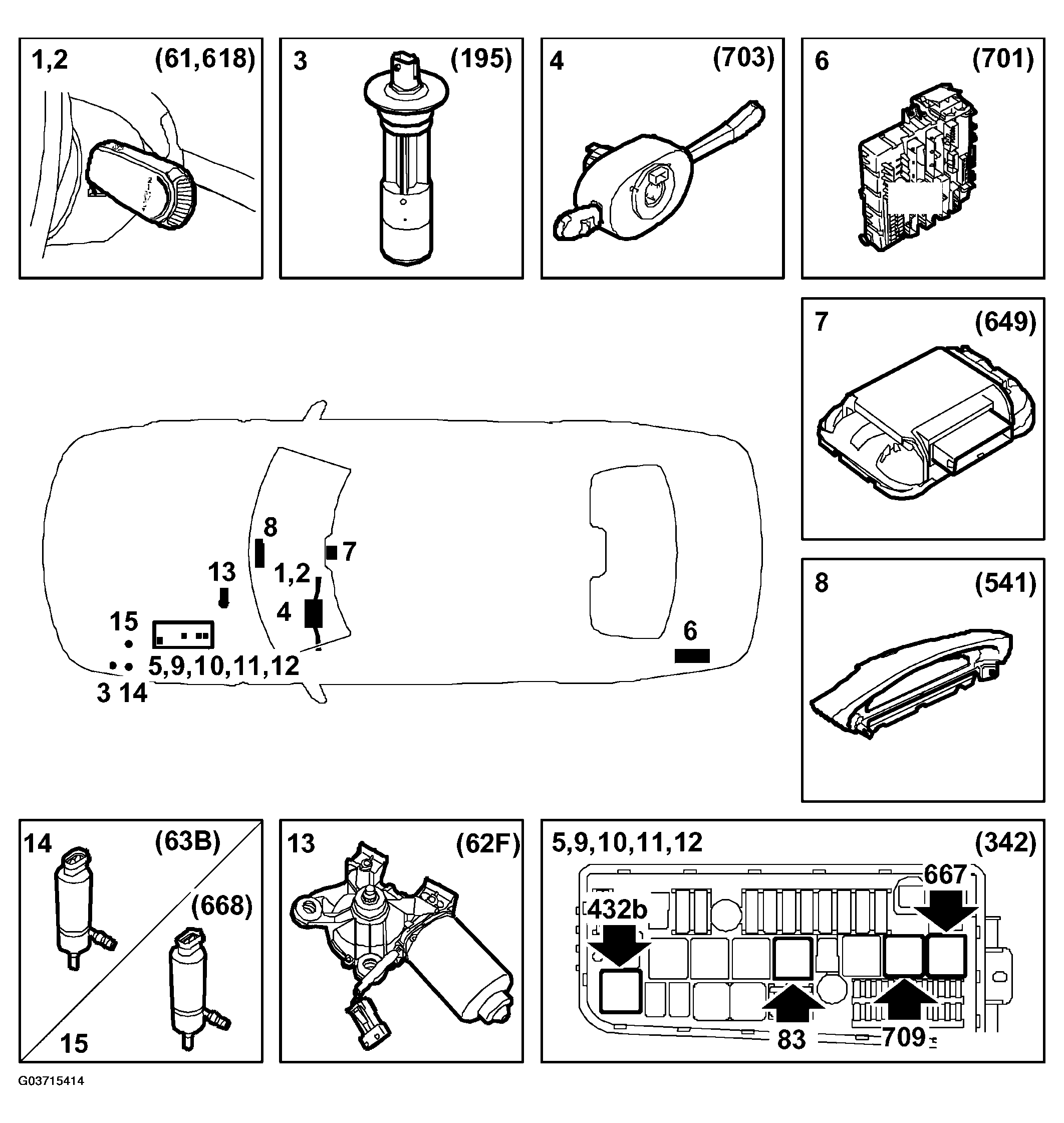

Fig 1: Identifying Main Components
G03715414Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Stalk-switch, windscreen wipers (61)
  2. Rheostat, intermittent wiping (618)
  3. Level switch, washer fluid (195)
  4. Column Integration Module, CIM (703a)
  5. Underhood Electrical Centre, UEC (342)
  6. Main fuse box, luggage compartment, REC (701)
  7. Rain sensor (649)
  8. SID (541)
  9. Relay, windscreen wipers, high/low speed (709)
  10. Relay, intermittent wiping, front (83)
  11. Relay, high-pressure headlamp washer fluid pump (667)
  12. Relay, windscreen washer fluid pump (432b)
  13. Motor, windscreen wipers (62F)
  14. Motor, windscreen washer fluid pump (63b)
  15. Motor, high-pressure headlamp washer fluid pump (668)
