Engine oil level switch (243): Location: Simtec

at the bottom of front edge of the oil pan

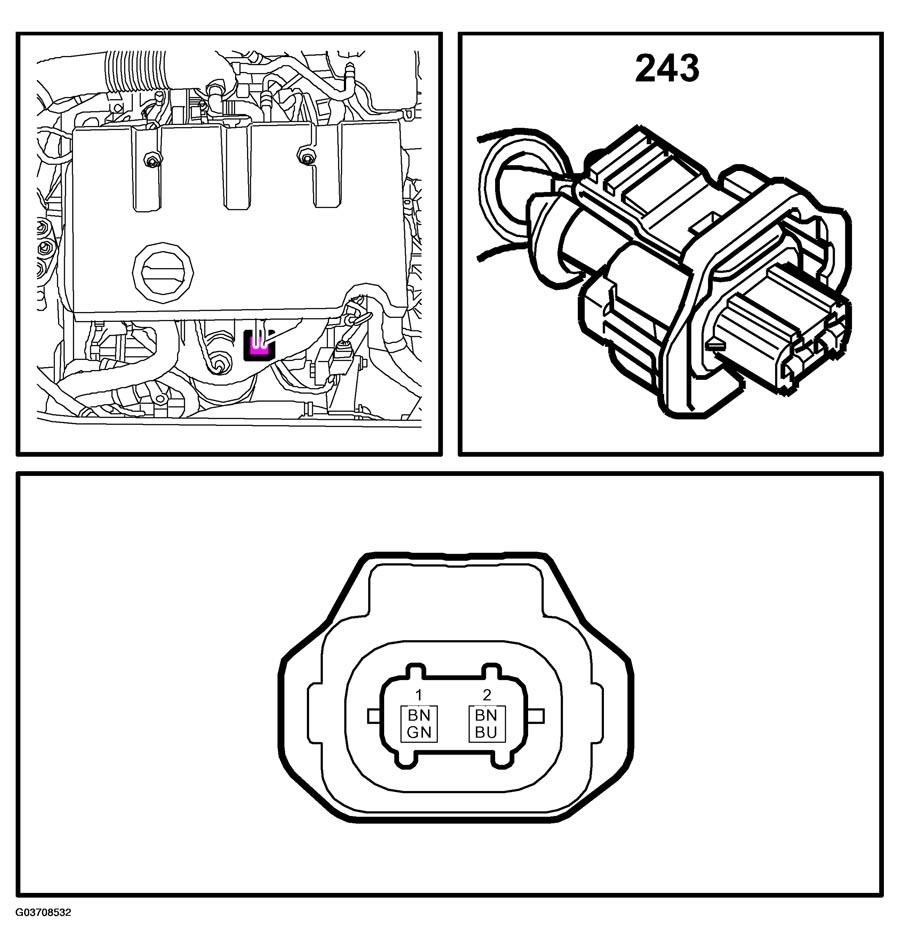

Fig 1: Identifying Engine Oil Level Switch Connector Pinout (Simtec)
G03708532Courtesy of SAAB-SCANIA OF AMERICA, INC.
