Phase 4 Release

The criteria for TCS modulation have ceased. All valves resume their rest positions, i.e. the pressure relief valves are open, the pressure increase valves are closed, the inlet valves are open and the outlet valves are closed. The pump stops.

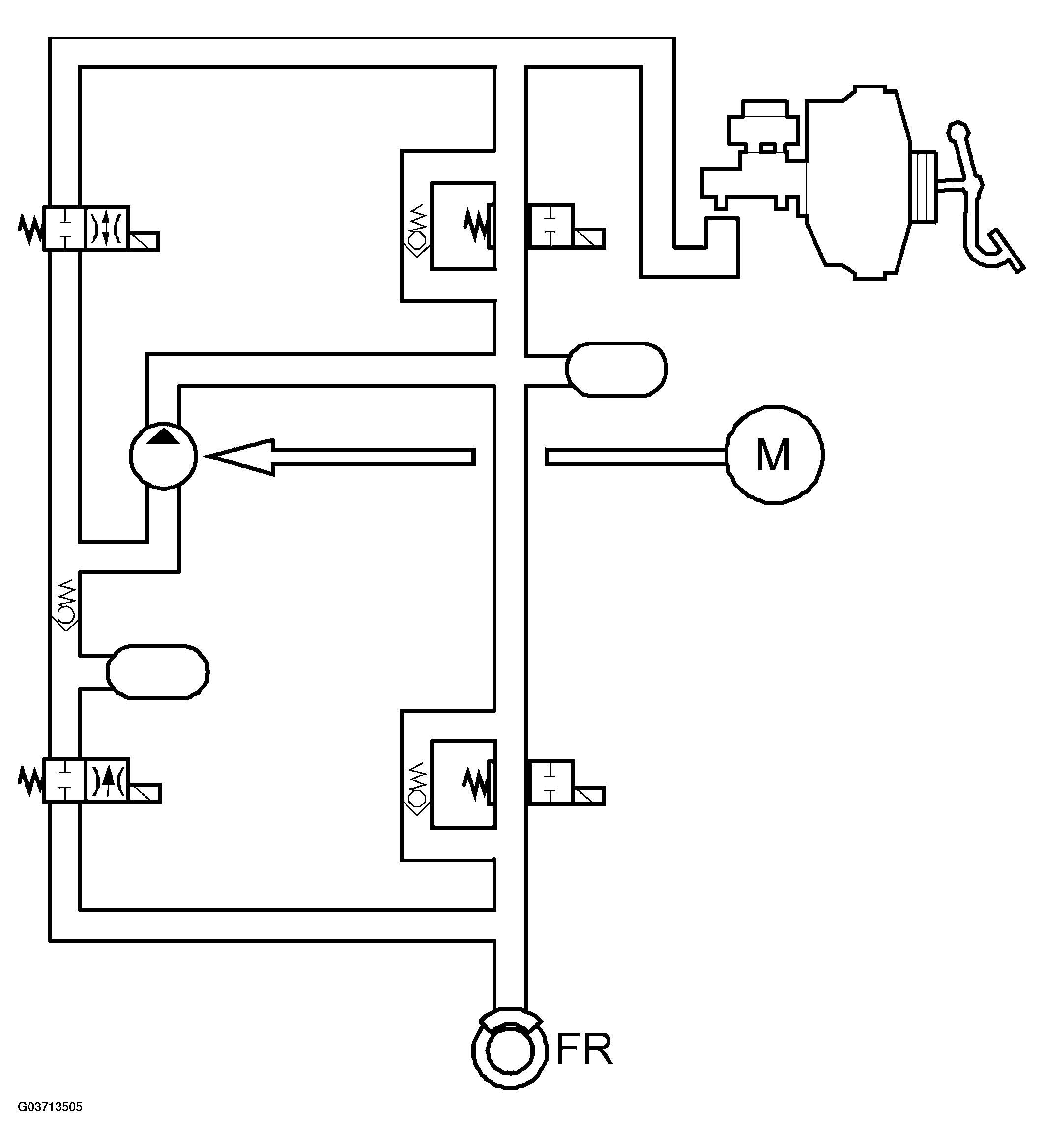

Fig 1: Release - Phase 4
G03713505Courtesy of SAAB-SCANIA OF AMERICA, INC.
