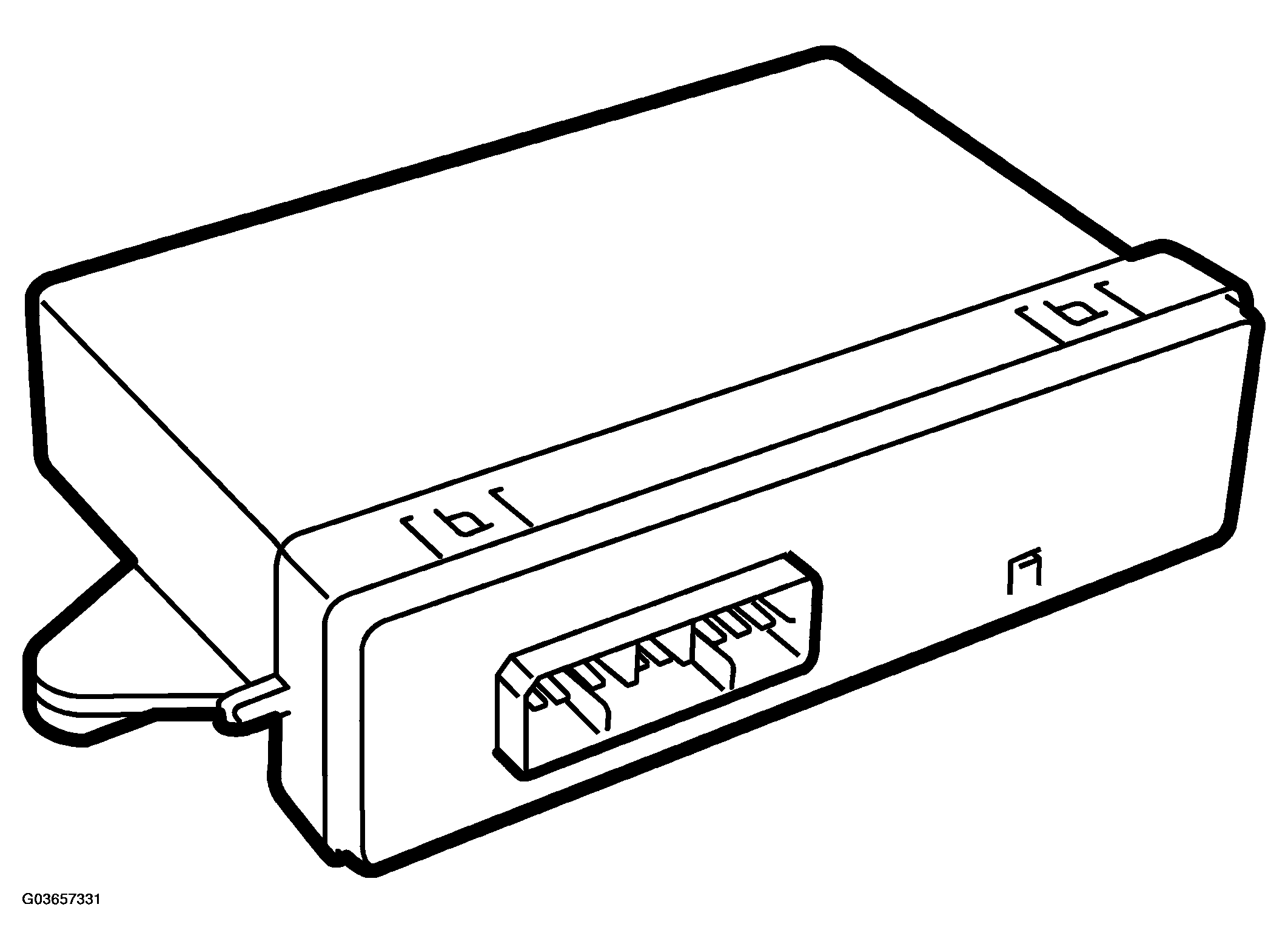

PMM control module
Courtesy of SAAB-SCANIA OF AMERICA, INC. PMM CONTROL MODULE CONNECTOR REFERENCE
| Number of connectors |
qty |
1 |
| Number of connector pins |
qty |
20 |
| Power supply +30 |
pin |
1 |
| Power supply +15 |
pin |
2 |
| Ground |
pin |
8 |
| I bus (+) |
pin |
19 |
| I bus (-) |
pin |
20 |
