To remove

IMPORTANT: ESD-SENSITIVE COMPONENT
Earth yourself by touching the car body before plugging in / unplugging components. Do not touch the component pins  . Read BEFORE CHANGING A CONTROL MODULE  before changing a control module.

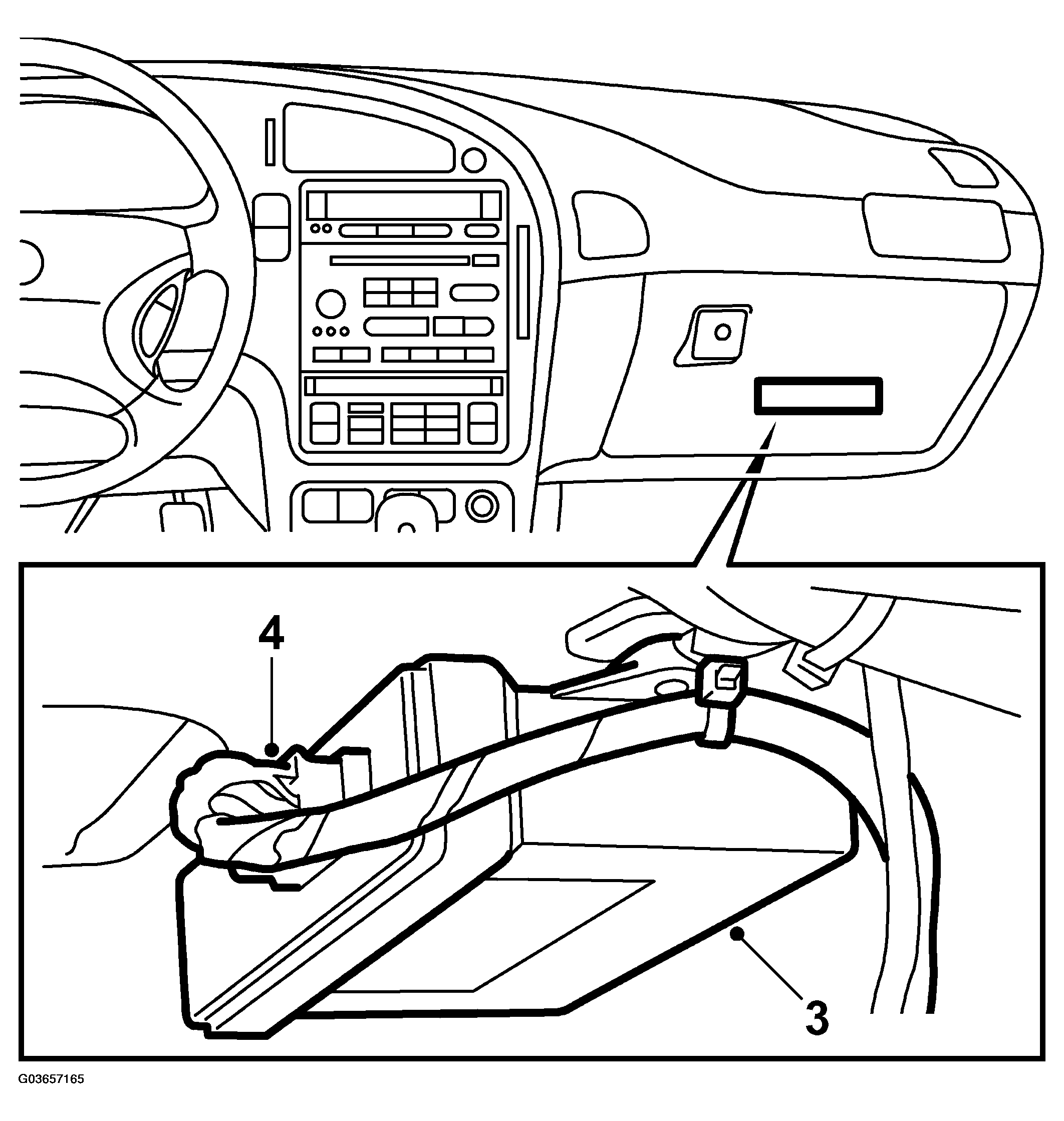

Fig 1: Illustration For Step 3-4
G03657165Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the glove box, see "GLOVE BOX " TO REMOVE .
  2. Remove the air duct.
  3. Unhook the control module from the plastic clip.
  4. Unplug the connector.
