To remove

WARNING: This page is about a different variant/trim than selected.
  1. Drape wing protectors over the wings and remove the cover over the battery.

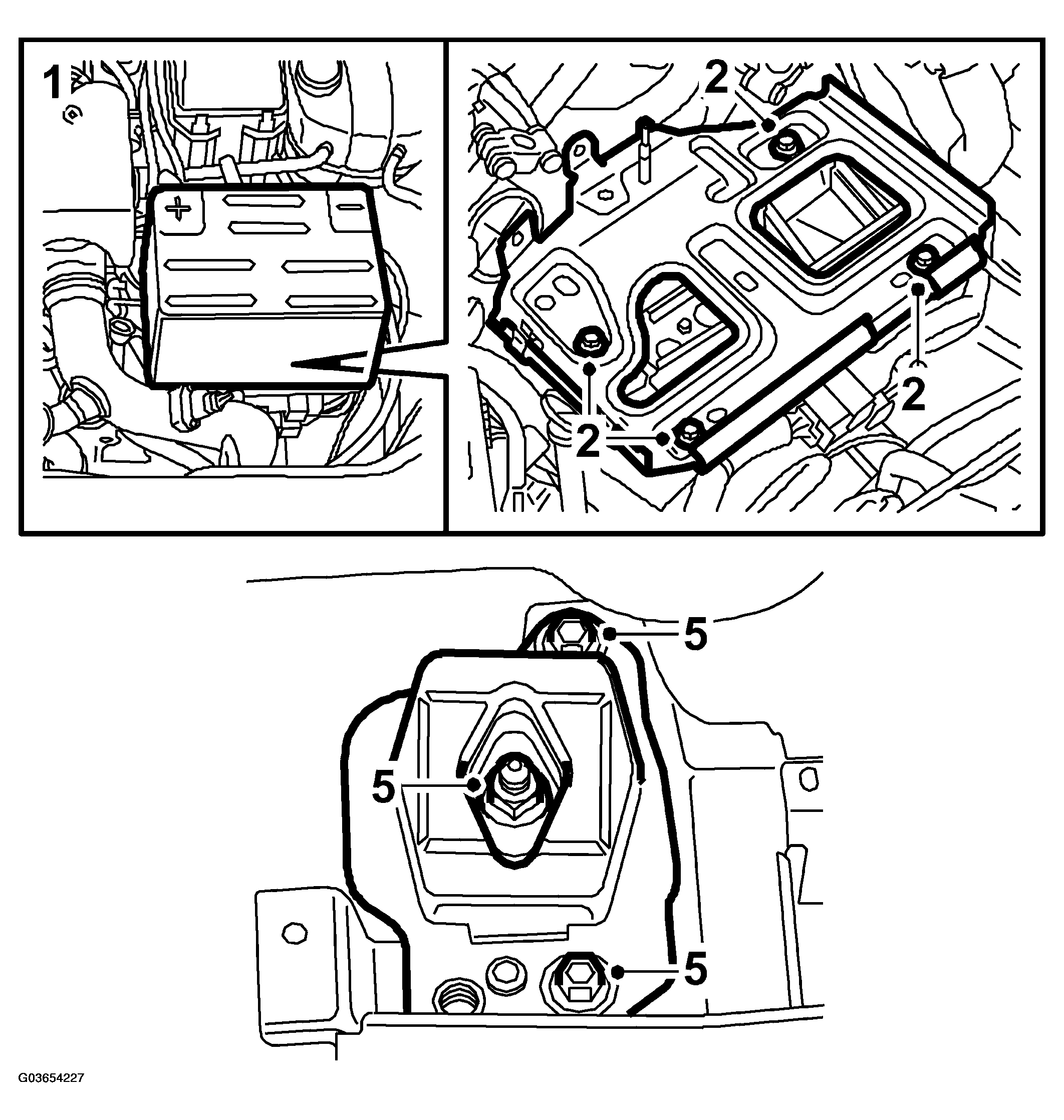

    Fig 1: Illustration For Steps 1-2, 5
    G03654227Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Disconnect the battery cables, remove the battery and its tray.
  3. Position a jack under the gearbox and take the weight off the engine mounting.
  4. Mark the position of the engine mounting in the bracket to retain the engine's centering.
  5. Remove the engine mounting.
