Main components, PSM system

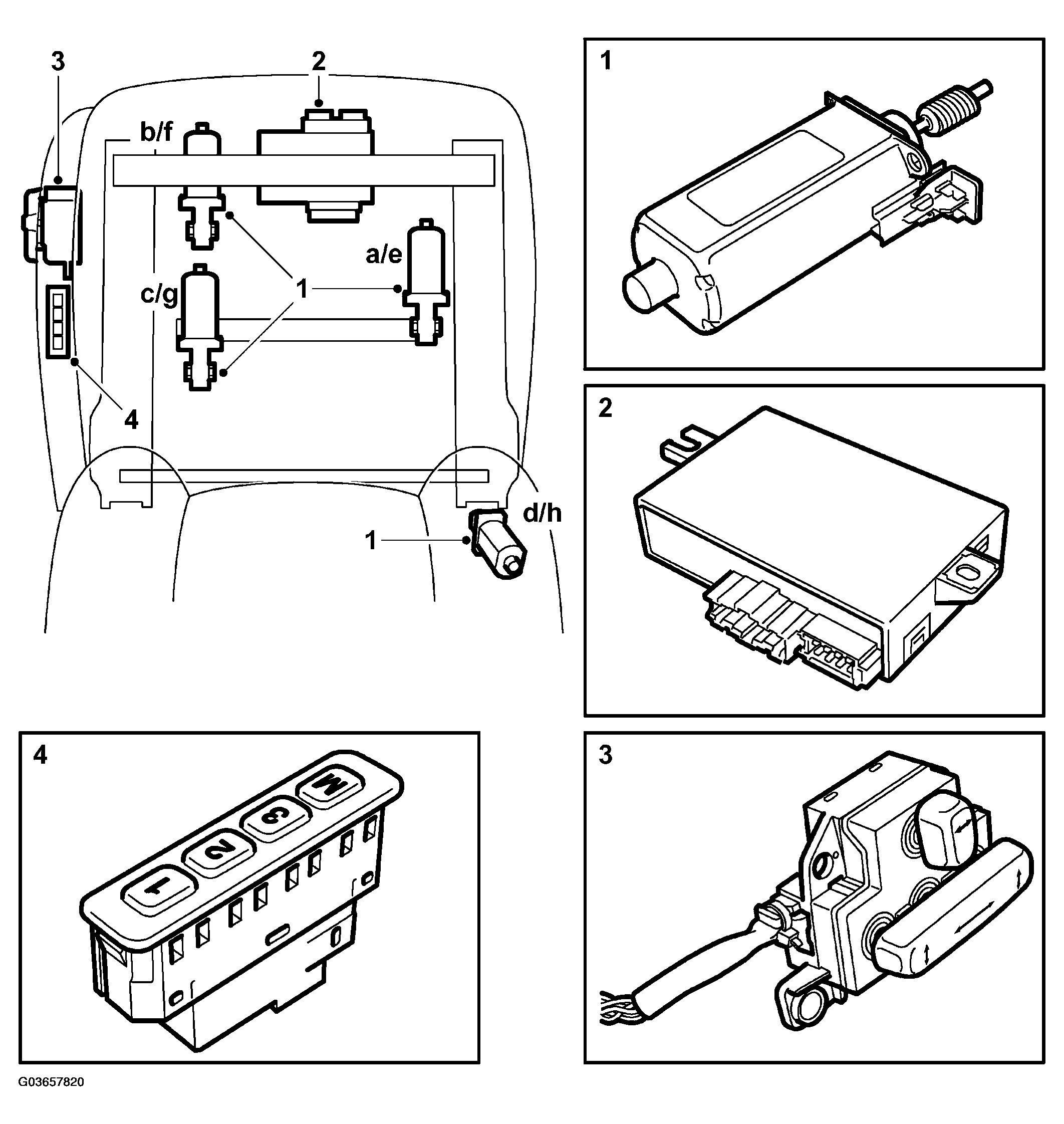

Fig 1: Illustration For Step 1-4
G03657820Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Electric motors with Hall sensors for driver's seat adjustment (357De-Dh)
  2. PSM control module (357Dk)
  3. Switch unit for seat adjustment (357D)
  4. Memory buttons (357Dj)
