To remove

  1. Remove the fuel tank. See FUEL TANK .
  2. Blow clean around the pressure sensor.

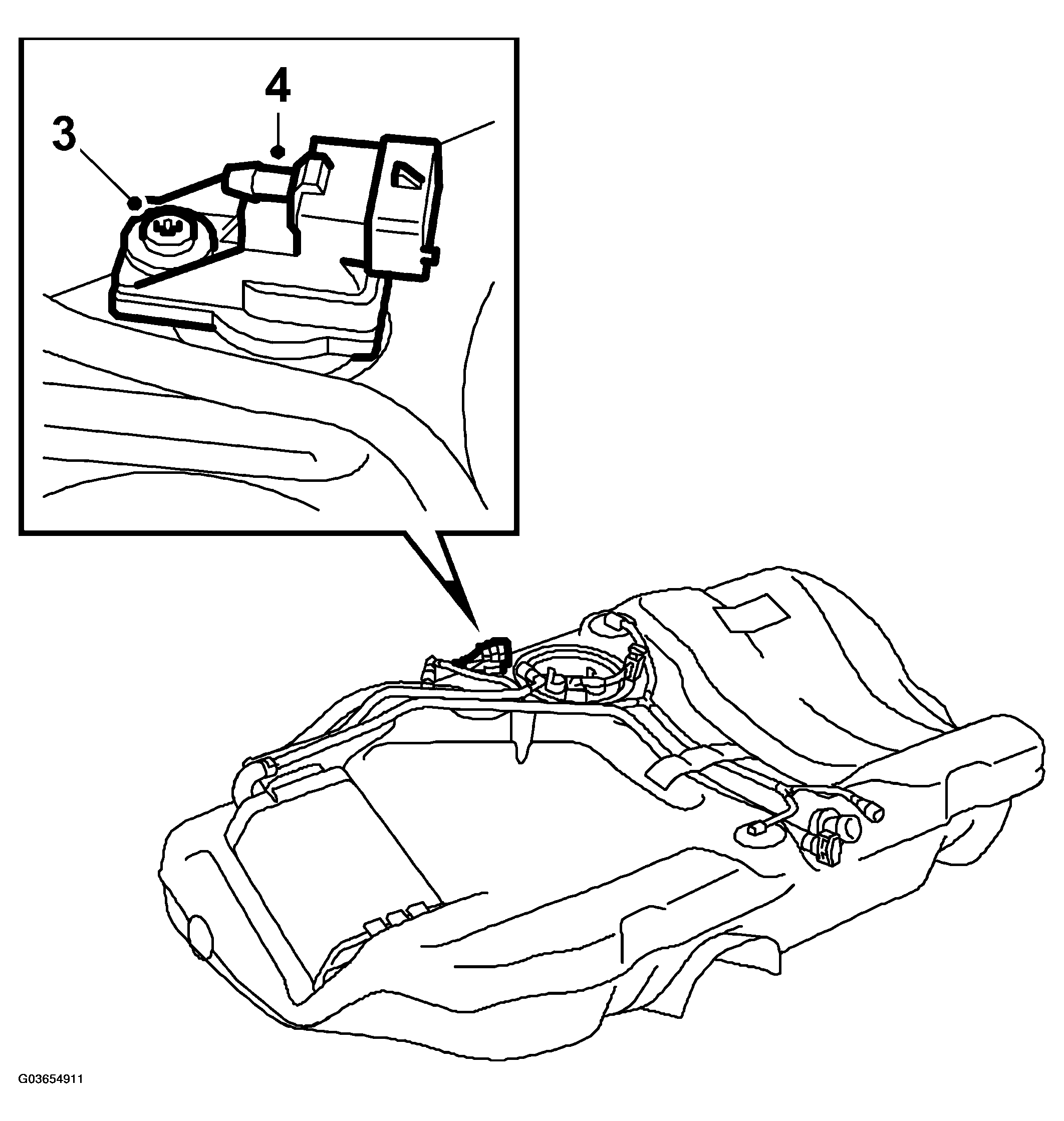

    Fig 1: Illustration For Steps 3-4
    G03654911Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Undo the screw on the pressure sensor.
  4. Carefully remove the pressure sensor.
