Control module bus outputs

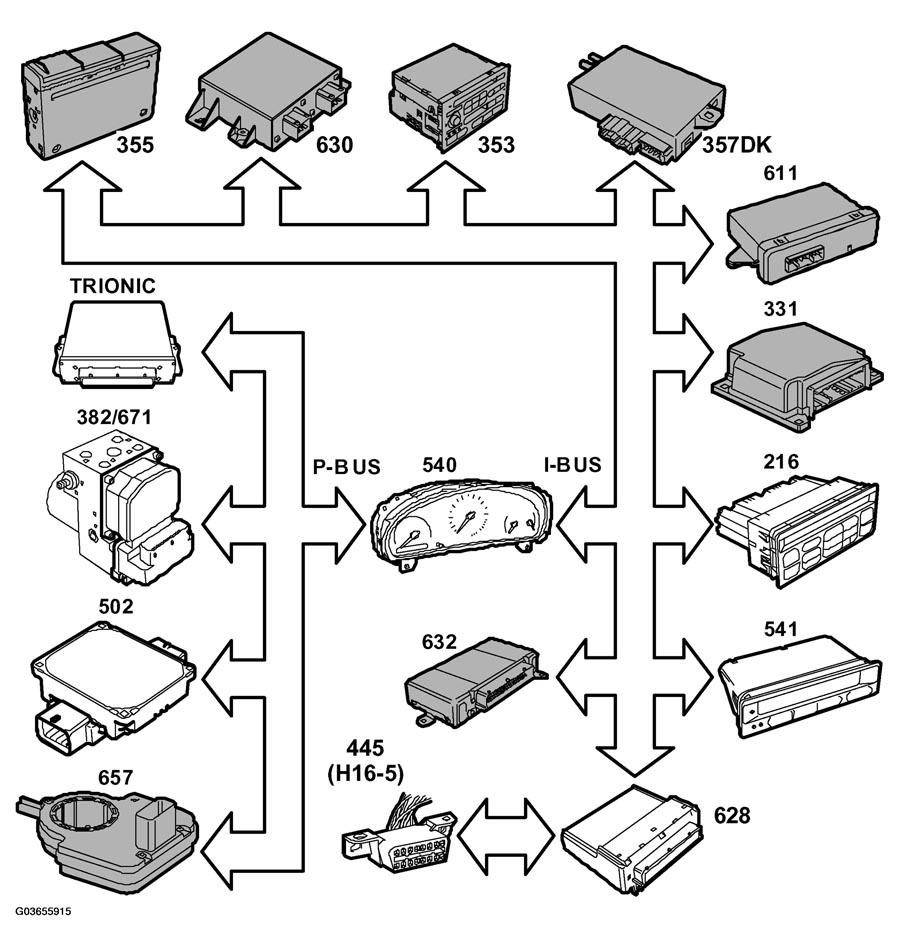

Fig 1: Identifying Control Module Bus Outputs

G03655915

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Engine torque, used by TCM (502)
Accelerator position, used by TCM (502)
Kickdown, used by TCM (502)
Engine speed, used by TCM (502), ACC (216) and MIU (540)
Coolant temperature, used by ACC (216), MIU (540) and DICE (628)
Engine running, used by ACC (216)
Tighten fuel filler cap, used by SID (541)
Turbo gauge reading, used by MIU (540)
CHECK ENGINE, used by MIU (540)
SHIFT UP, used by MIU (540)
CRUISE lamp, used by MIU (540)
Pedal position, used by TC/ABS (382)
Engine torque, used by TC/ABS (382), see
Engine speed, used by TC/ABS (382), see
Fuel consumed since start, used by MIU (540)
Diagnostics, used by DICE (628)/ diagnostic tool
