Direction indicators malfunctioning: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

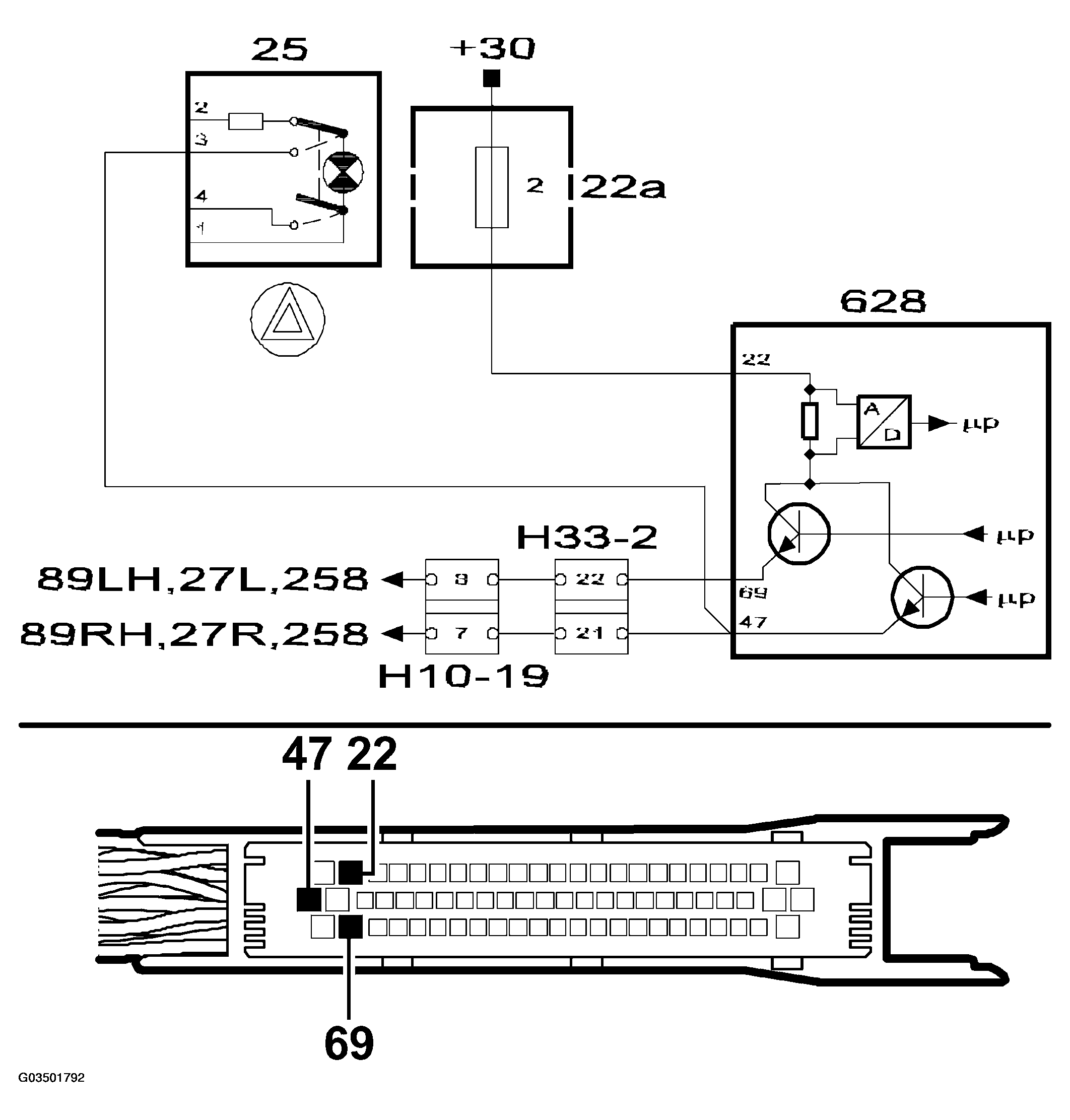

Fig 1: Identifying Direction Indicators Circuit Diagram (1 Of 2)
G03501792Courtesy of SAAB-SCANIA OF AMERICA, INC.

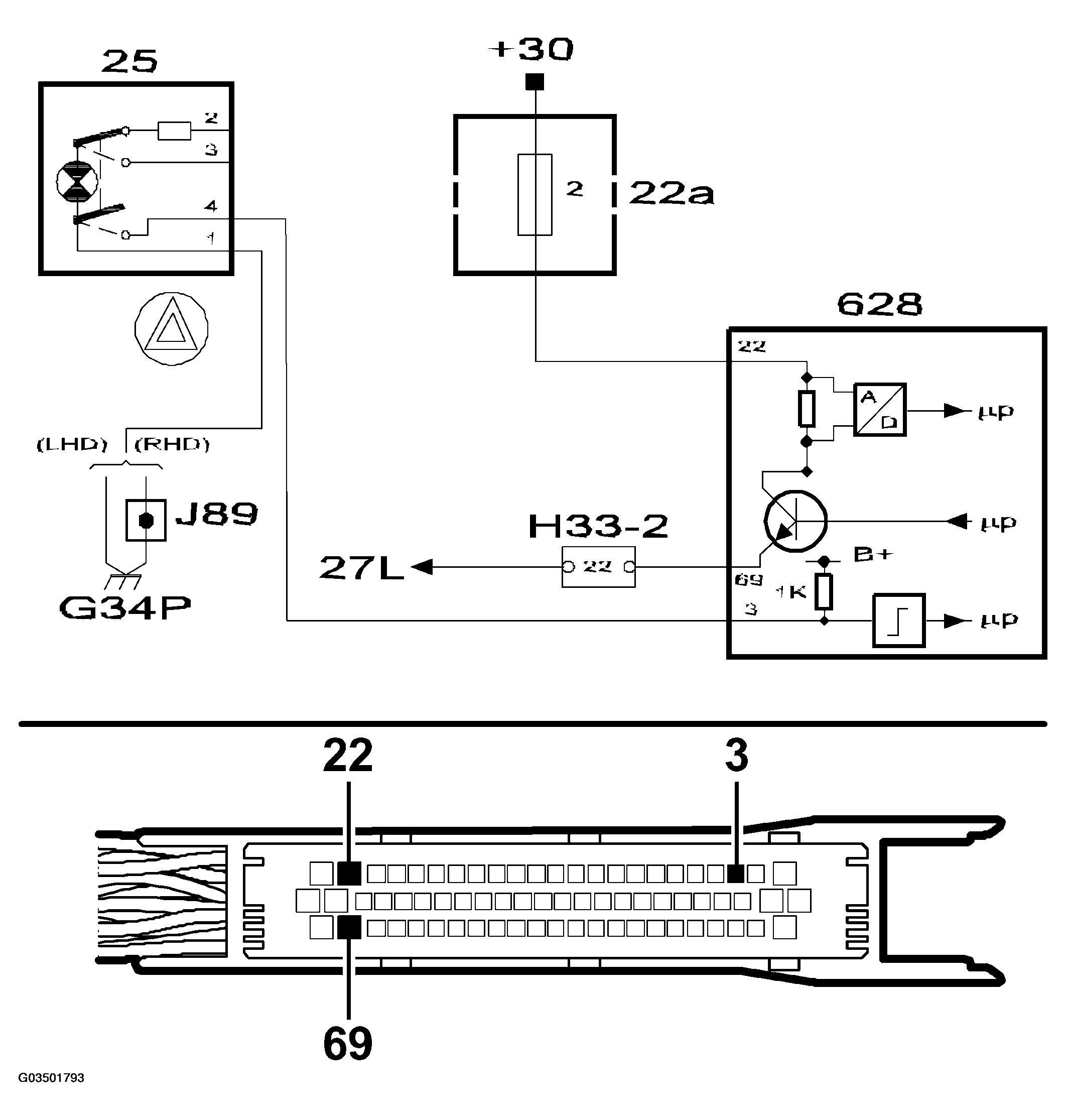

Fig 2: Identifying Direction Indicators Circuit Diagram (2 Of 2)
G03501793Courtesy of SAAB-SCANIA OF AMERICA, INC.
