To Fit

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

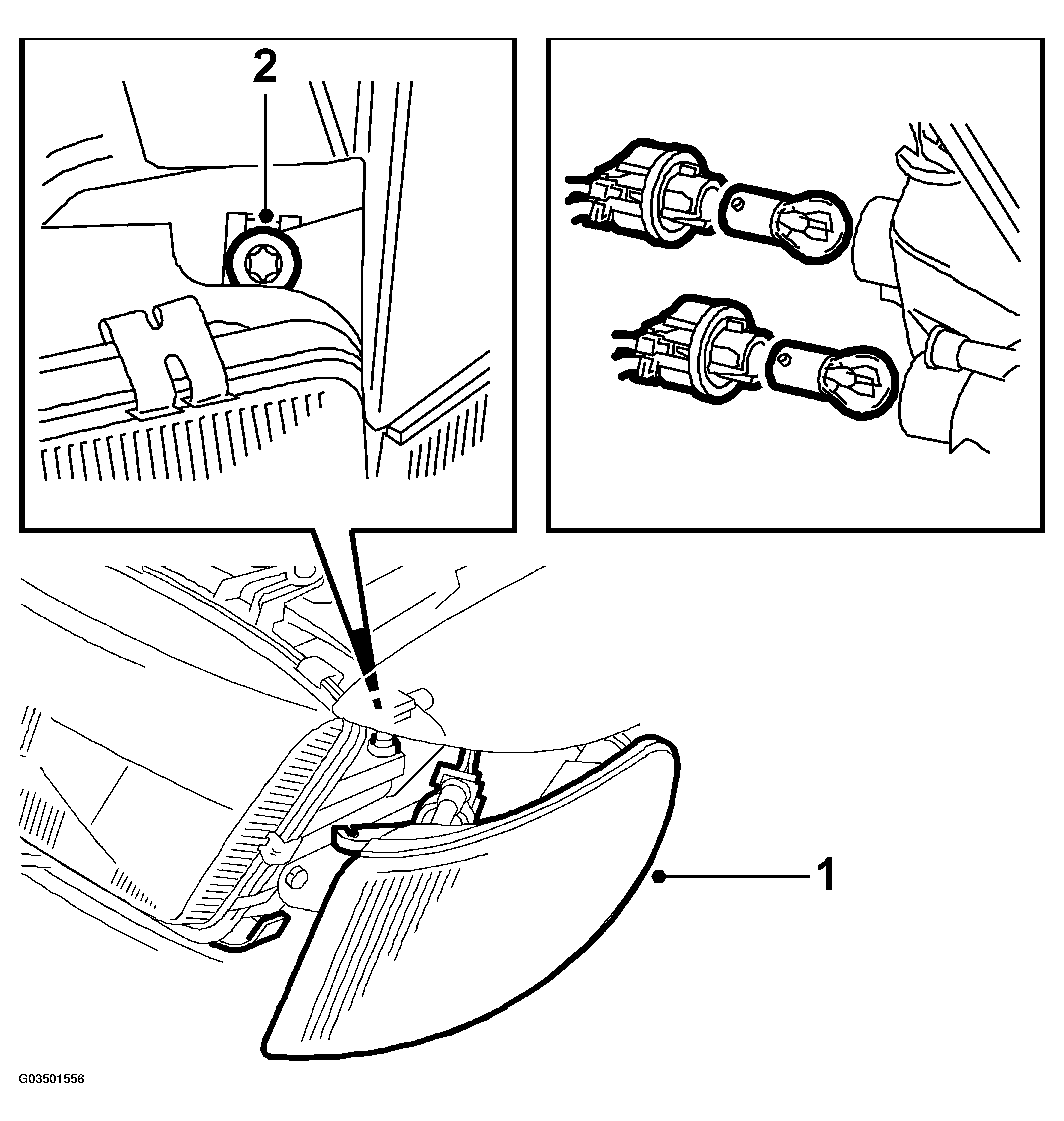

Fig 1: Illustration For Step 1-2
G03501556Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Insert the lamp and lamp holder into the light cluster and turn it clockwise to fasten it.
    NOTE: Be careful when fitting the light cluster so that the hook in the front edge and the guide in the rear edge are aligned with the headlamp.
  2. Position the light cluster correctly and screw it in place. Make sure the plate nut is in the correct position.
