Fuse 4, main fuse box 727: Notes

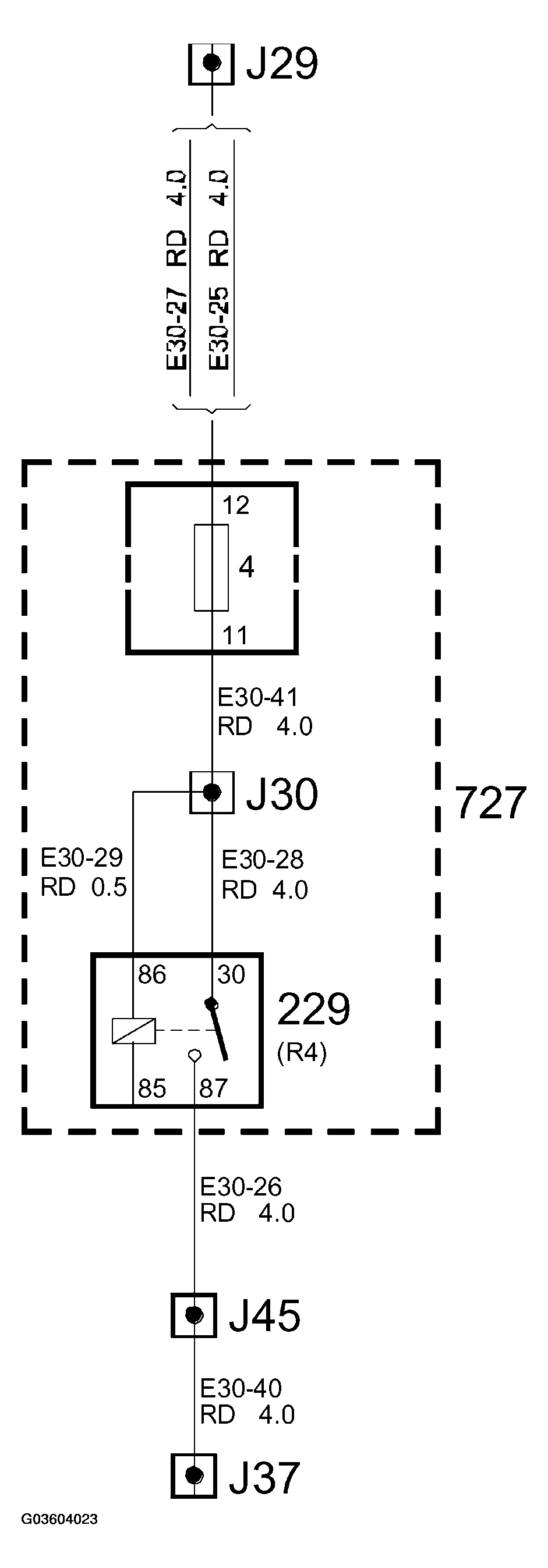

Fig 1: Identifying Fuse 4 And Main Fuse Box 727 Wiring Diagram
G03604023Courtesy of SAAB-SCANIA OF AMERICA, INC.
