Electrical System/Charging System/Technical Data
>>
Battery, 70Ah
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Battery, 70Ah

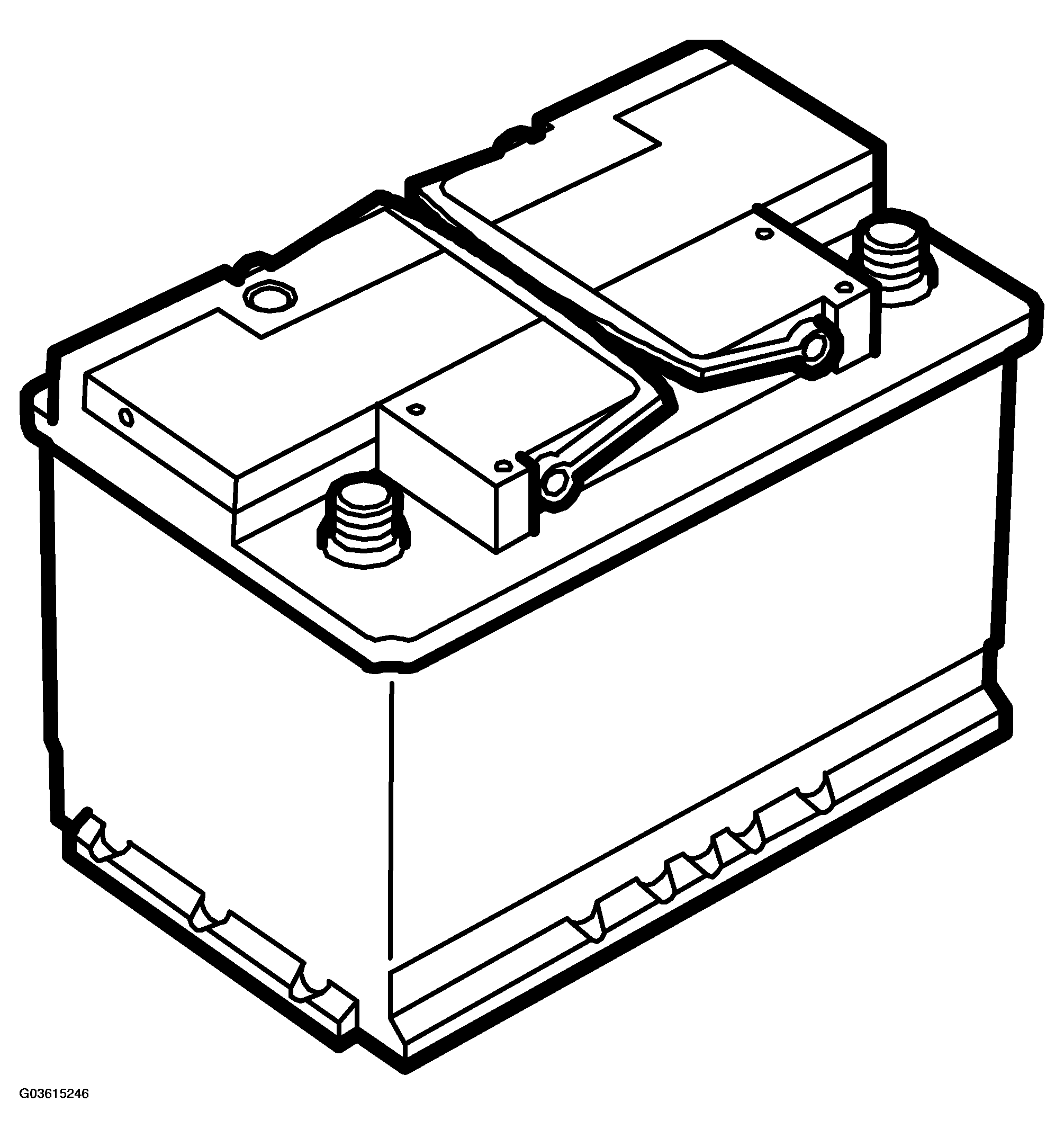

Fig 1: Identifying Battery, 70Ah
Courtesy of SAAB-SCANIA OF AMERICA, INC.
BATTERY SPECIFICATION
Type designation
Exide 127 99 752
Voltage
V
12
Capacity
Ah
70
Grounding
Negative
Specific gravity of electrolyte
When recharging advisable
When battery fully charged
1,21
1,28
Starting current
EN (European Norm)
SAE
A
A
700
700
