Main use: Activation

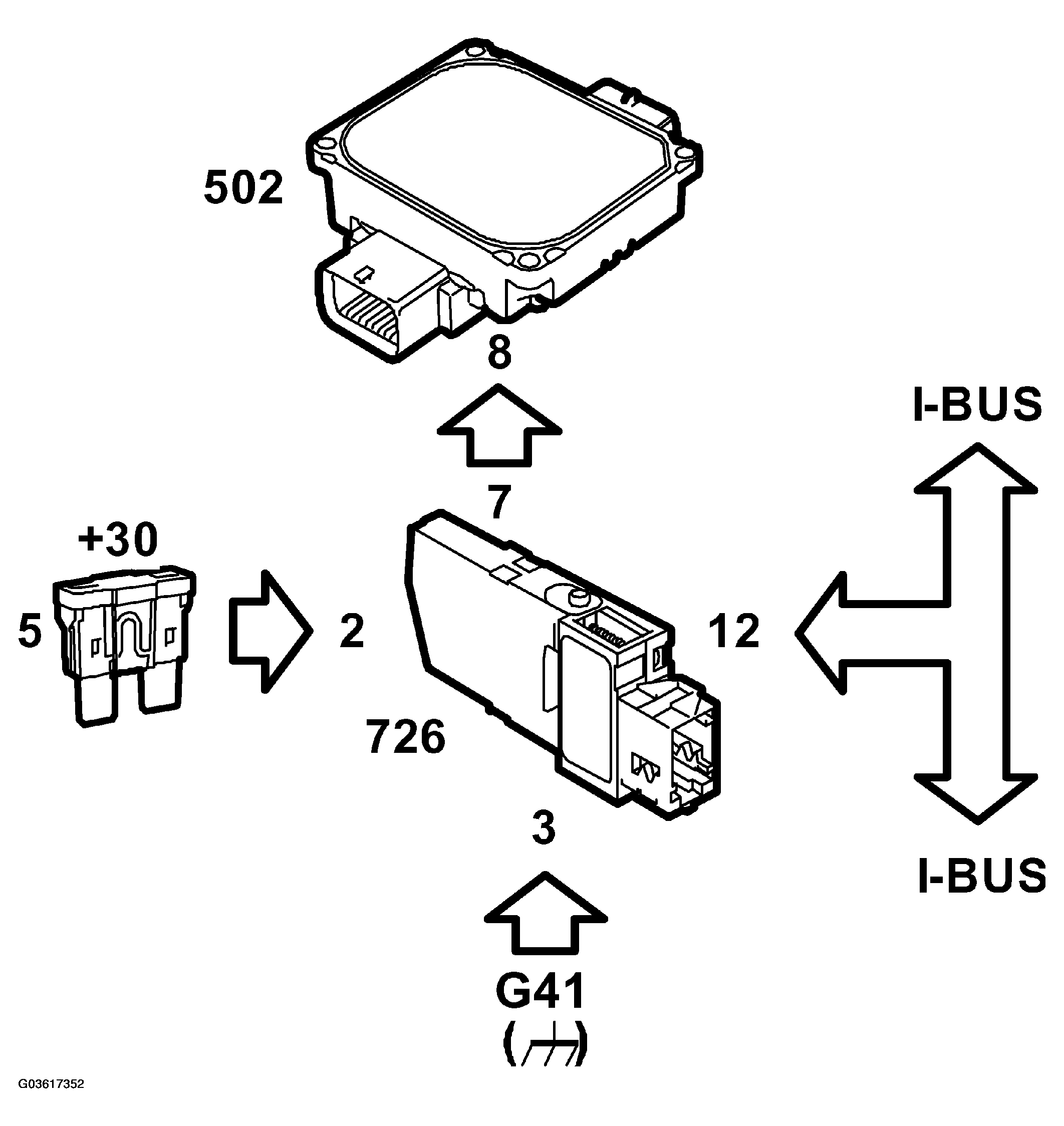

The SLM control module is powered with +30 on pin 2 from main fuse box 22, fuse 5. Grounding takes place on pin 3, grounding point G41. Bus communication (I-bus) takes place on pin 12. Communication regarding up or down shifting in position "M" takes place from pin 7 on SLM to pin 8 (A) on TCM.

Fig 1: Identifying Fuse Location

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Power supply, ground and bus connection

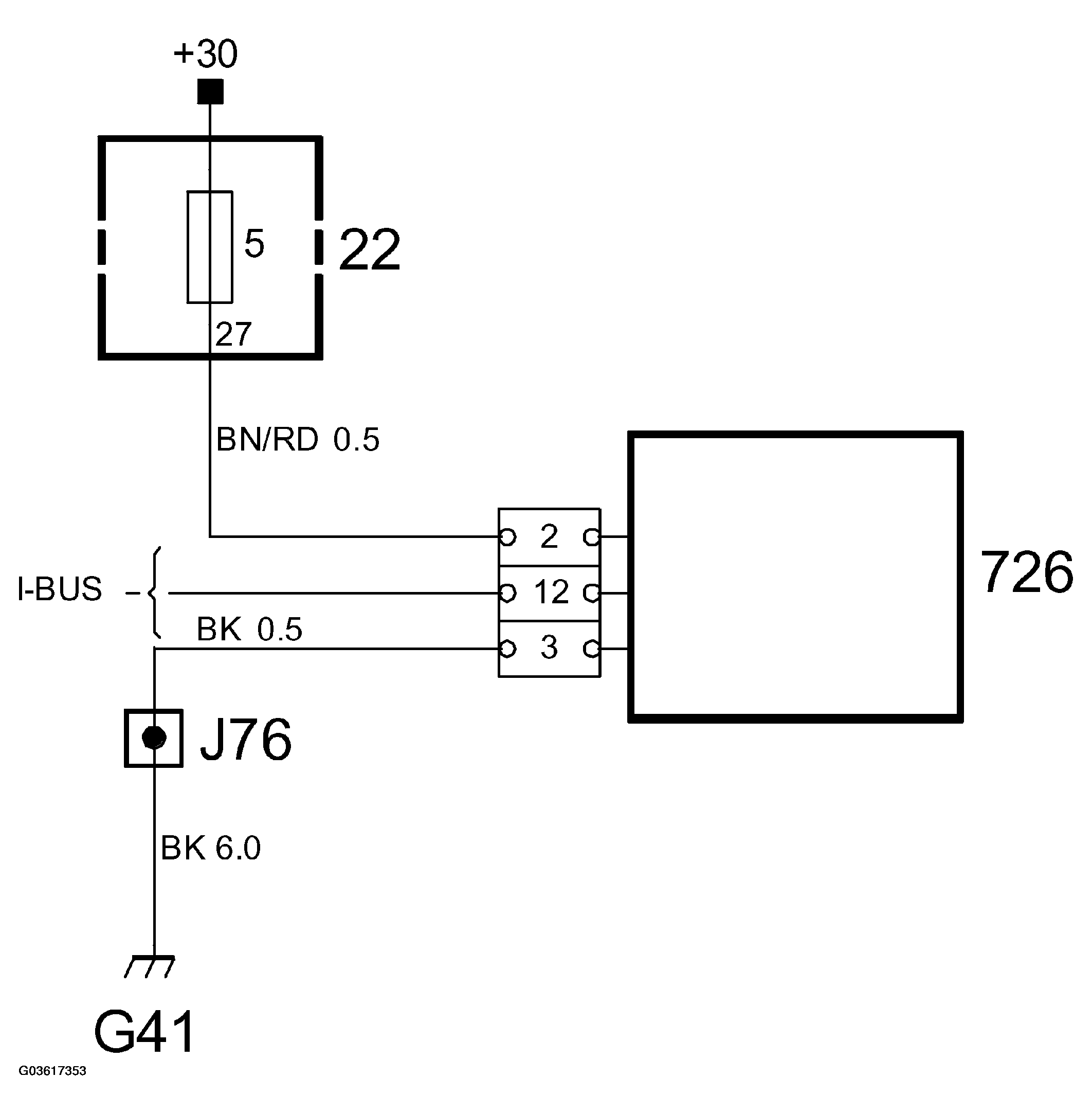

  Fig 2: Power Supply, Ground And Bus Connection (1 Of 2)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
• Communication with TCM

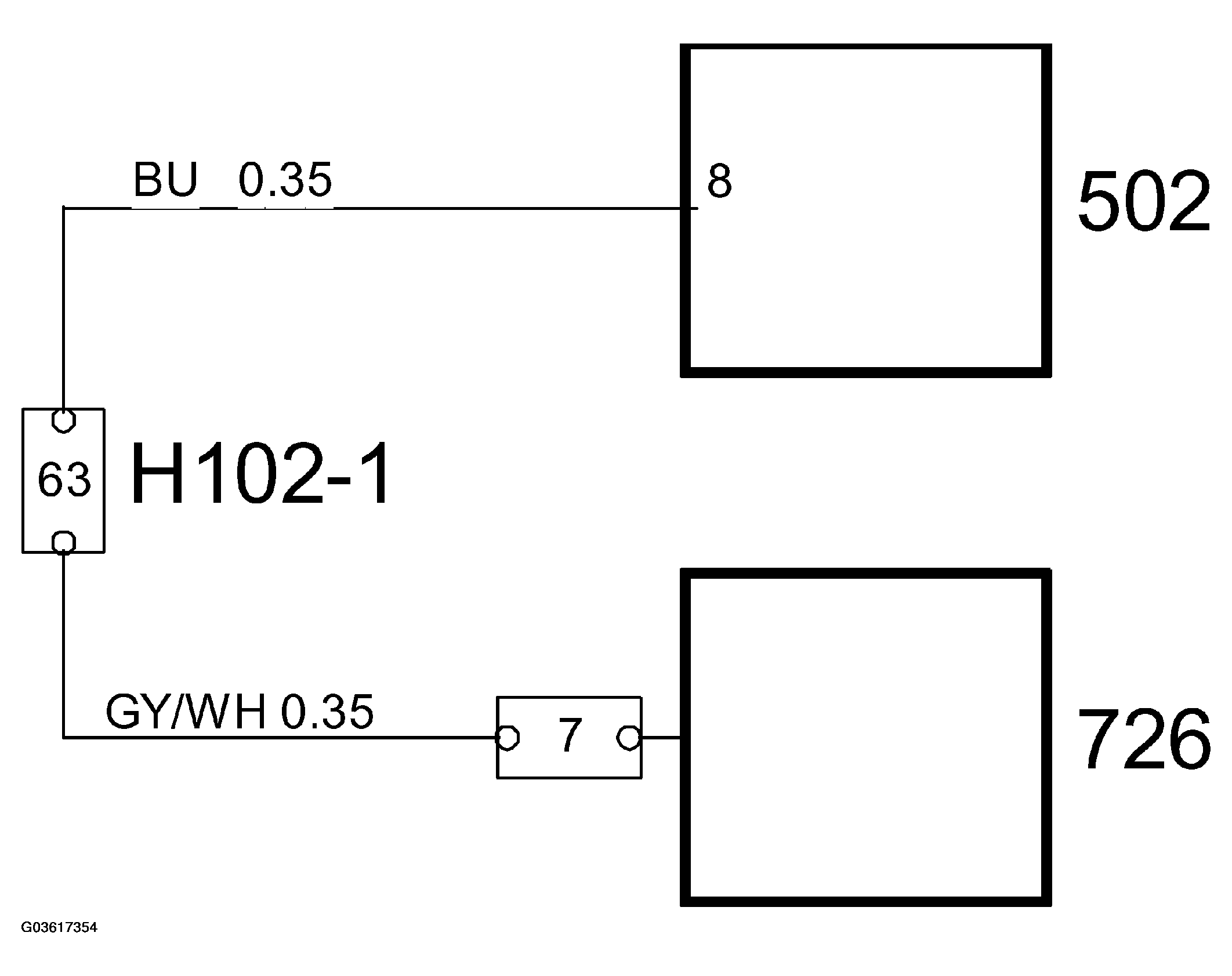

  Fig 3: Power Supply, Ground And Bus Connection (2 Of 2)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
