To fit

  1. Slide in the CD player until it locks in position.

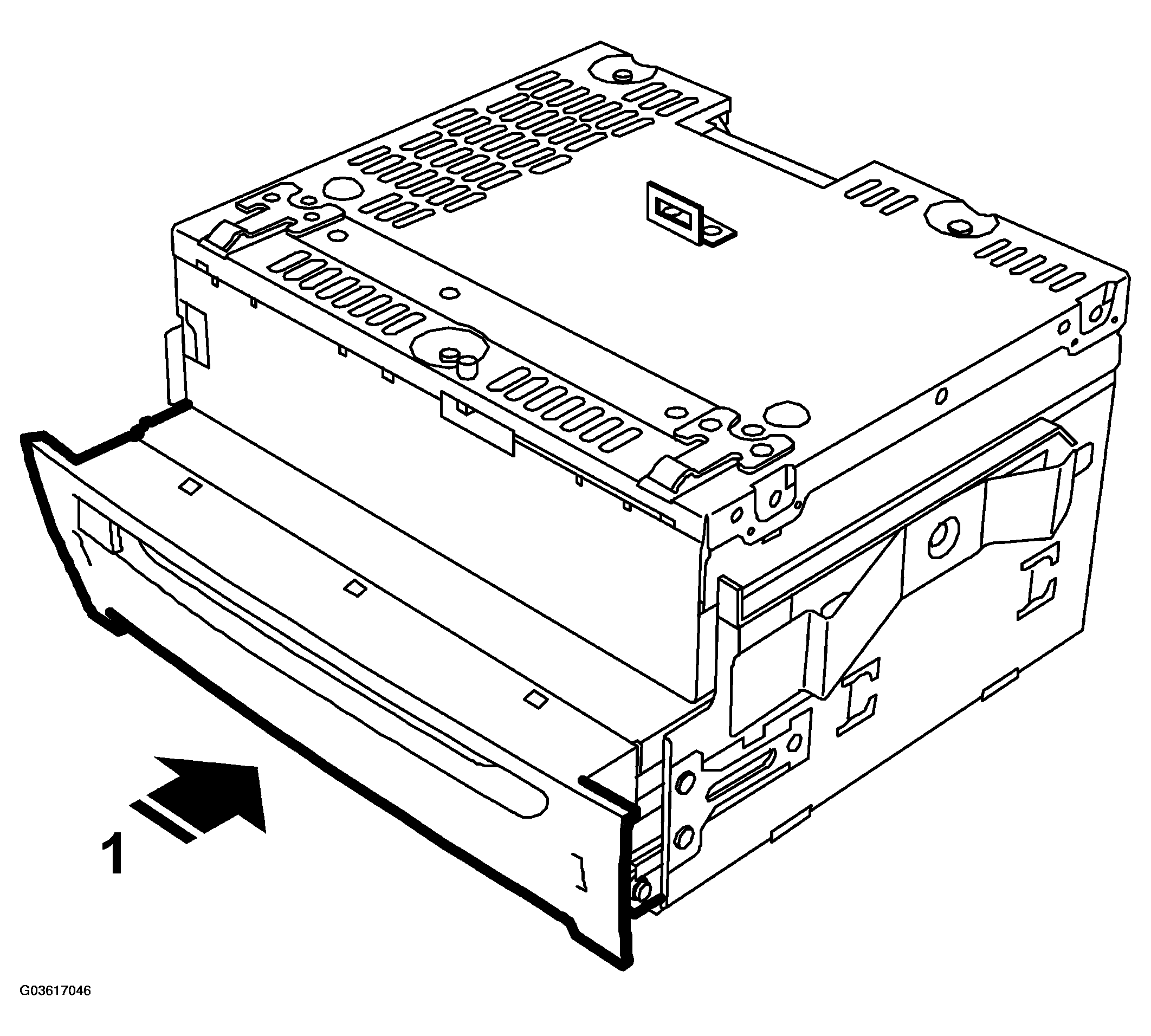

    Fig 1: Illustration For Step 1
    G03617046Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
  2. Plug in the CD player.

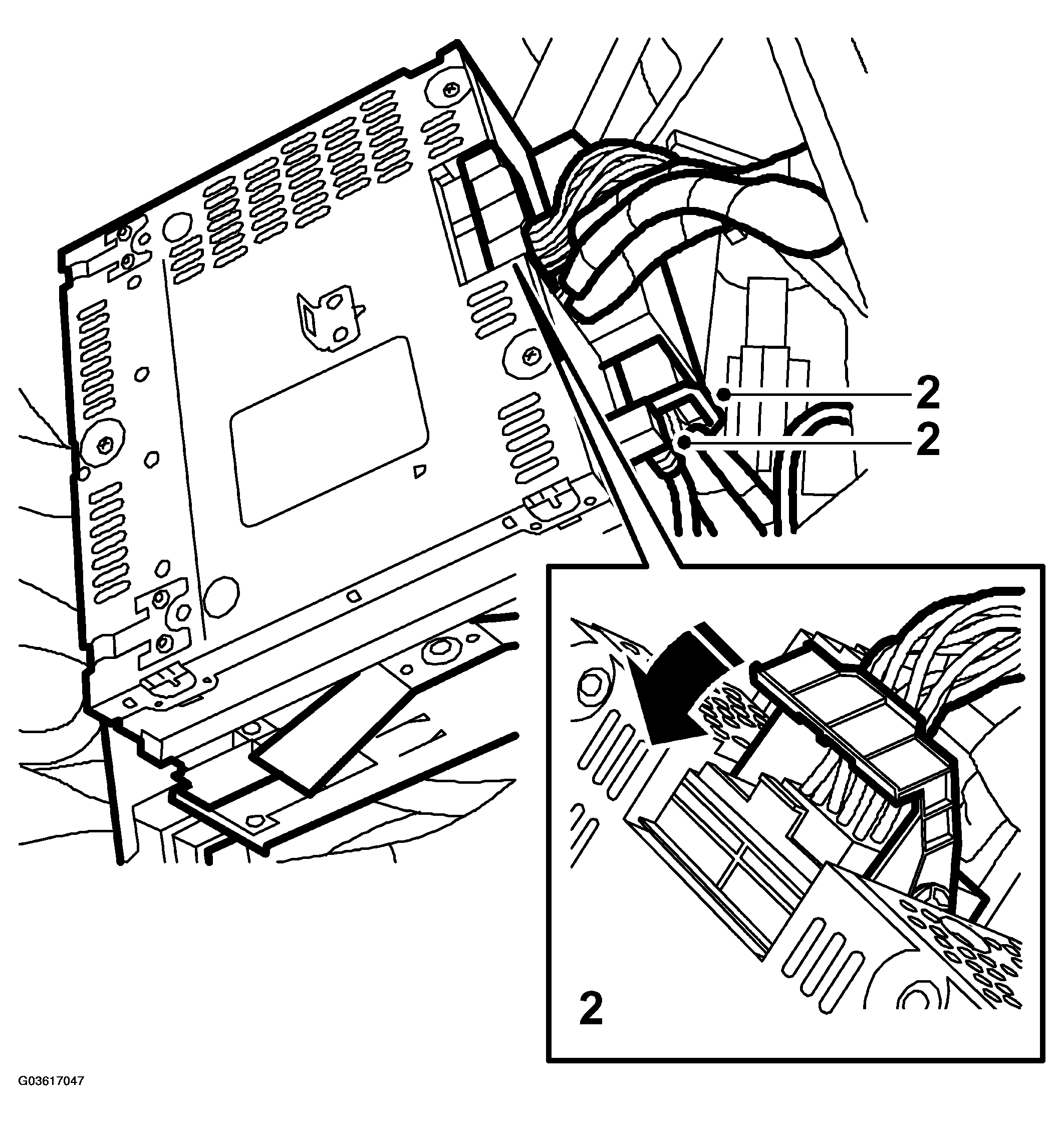

    Fig 2: Illustration For Step 2
    G03617047Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the EHU. You should hear a click.

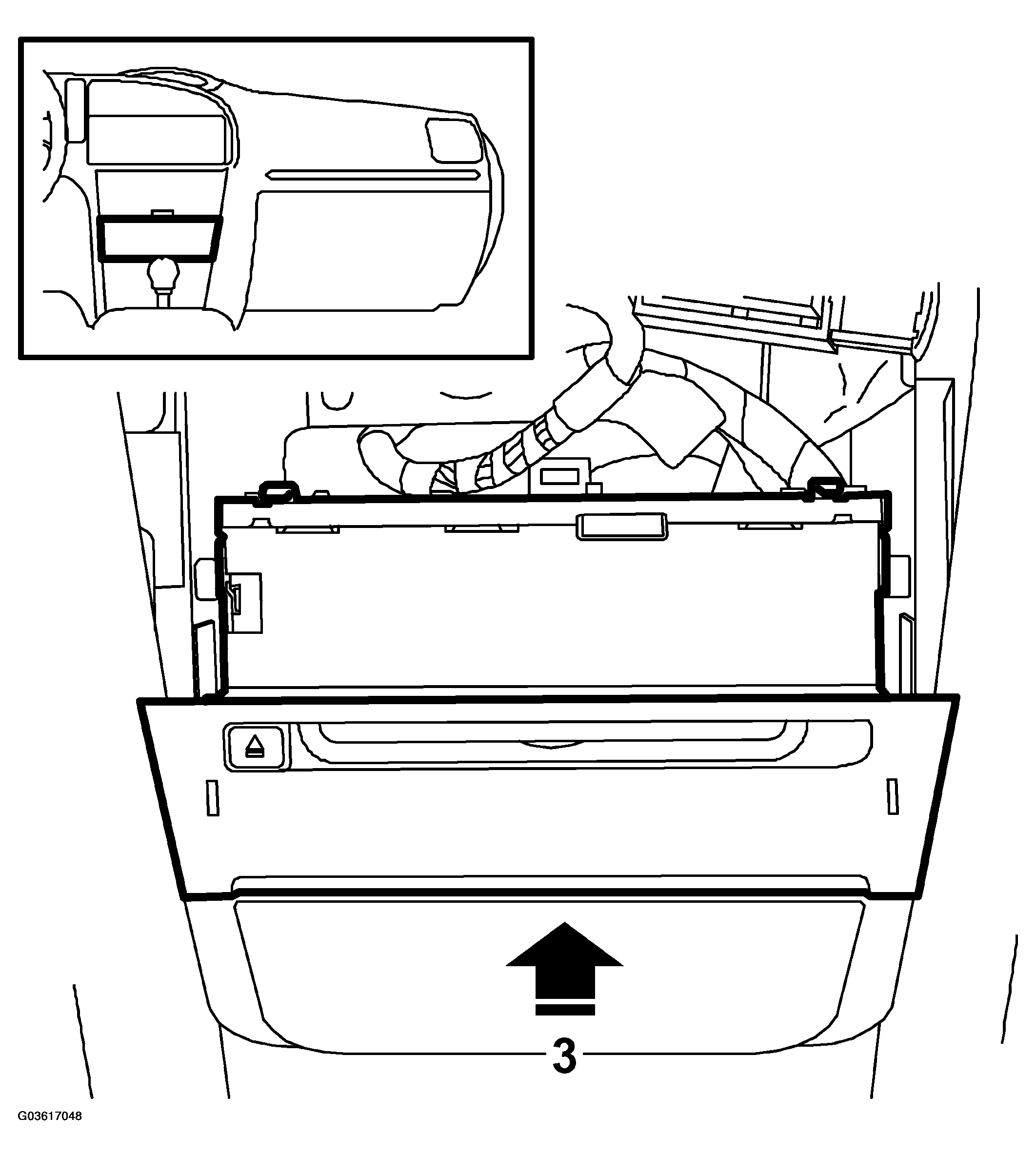

    Fig 3: Illustration For Step 3
    G03617048Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
  4. Plug in the connector to the ACC/MCC unit.

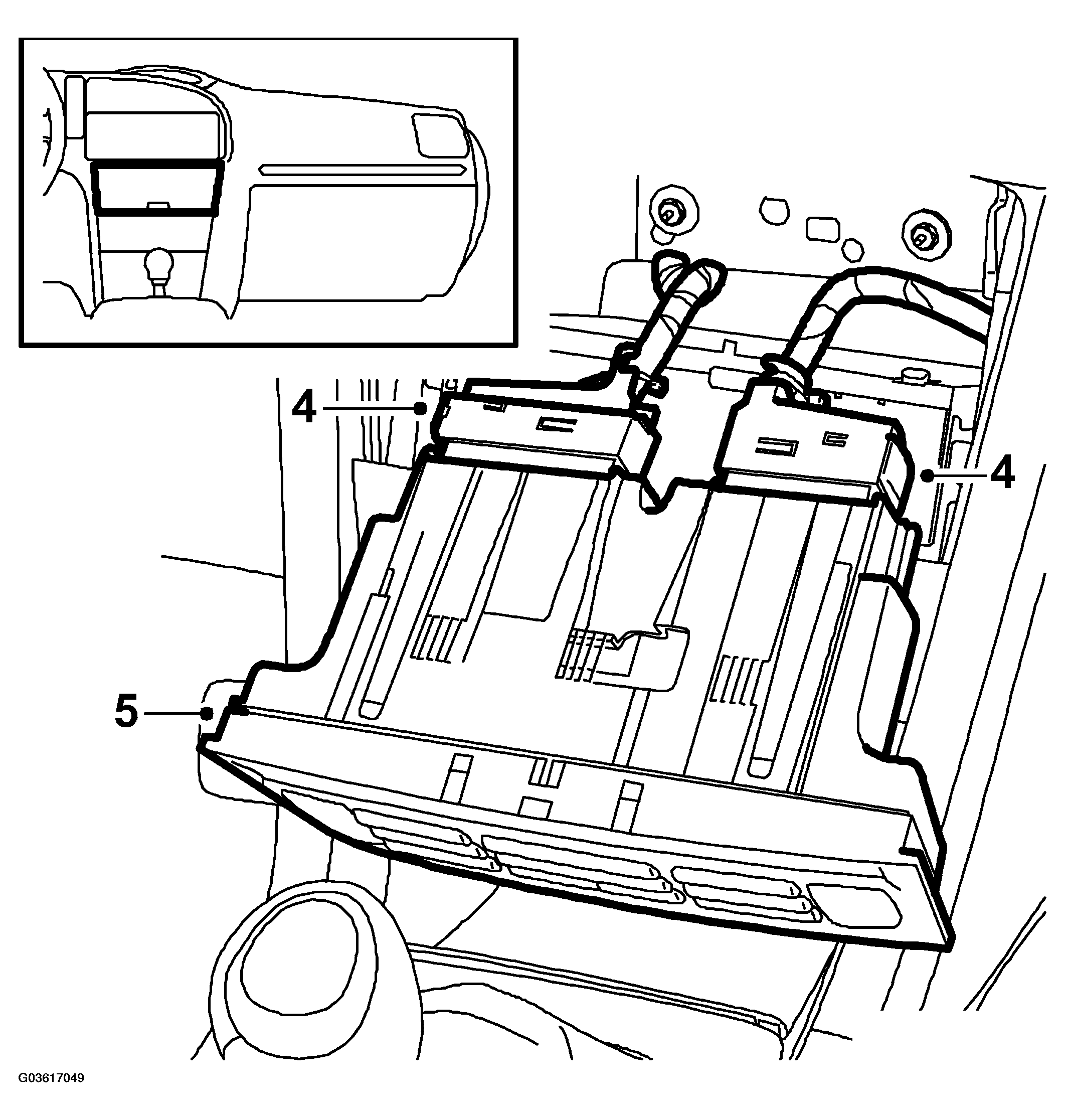

    Fig 4: Illustration For Step 4 And 5
    G03617049Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the ACC/MCC unit.
  6. Carry out actions after replacement of control module.
  7. Check the function
