To fit

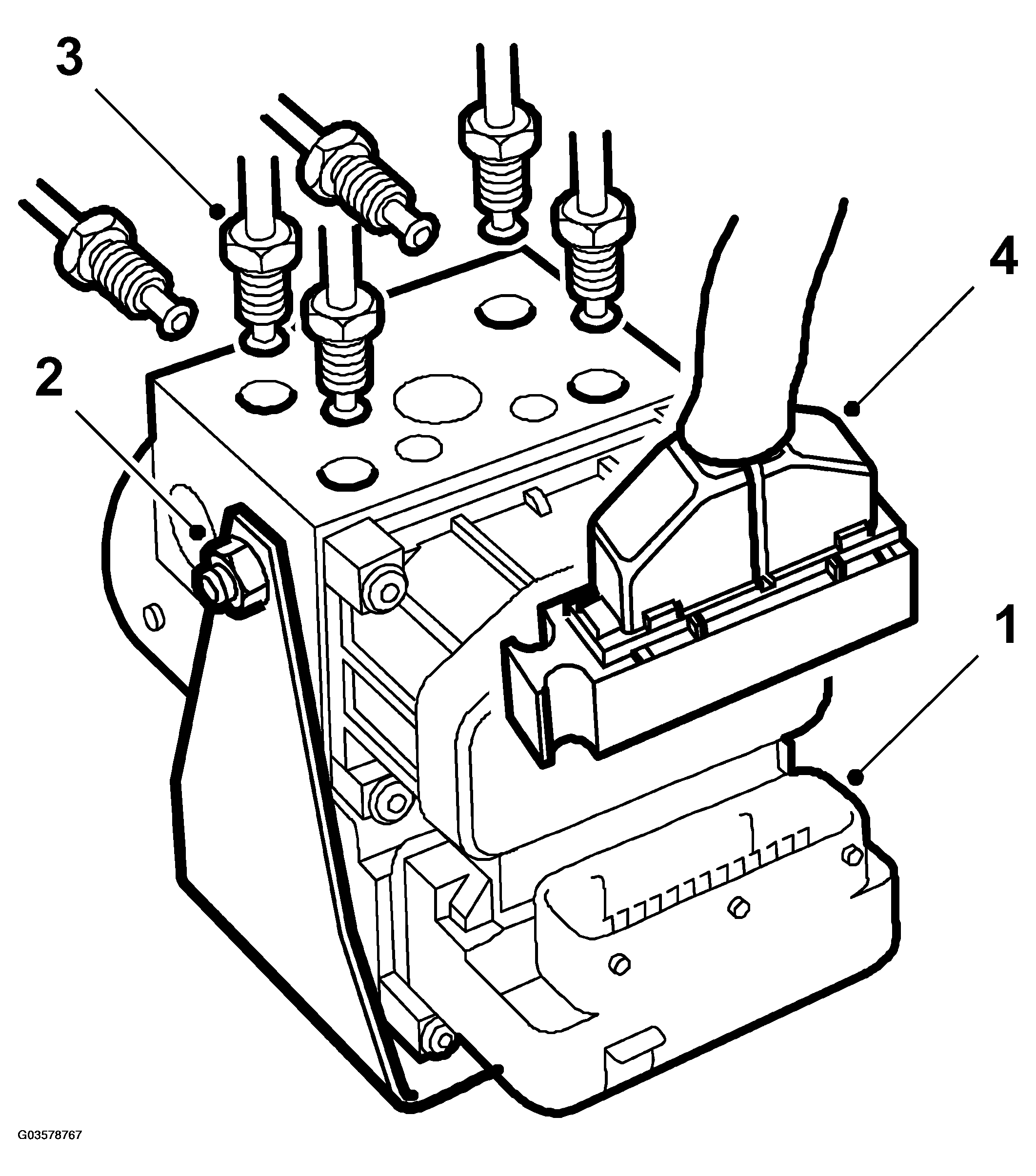

Fig 1: Illustration For Steps 1-4
G03578767Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Lift the hydraulic unit into position, taking care not to damage the pipes.
  2. Fit the two nuts.

    Tightening torque 20 Nm (15 lbf ft)

  3. Remove the plugs and reconnect the pipes. Fit the brake-pipe nipples (rear pipes first) finger tight and then tighten with a spanner.
  4. Plug in the connector.
  5. Fit the main fuse box in place.

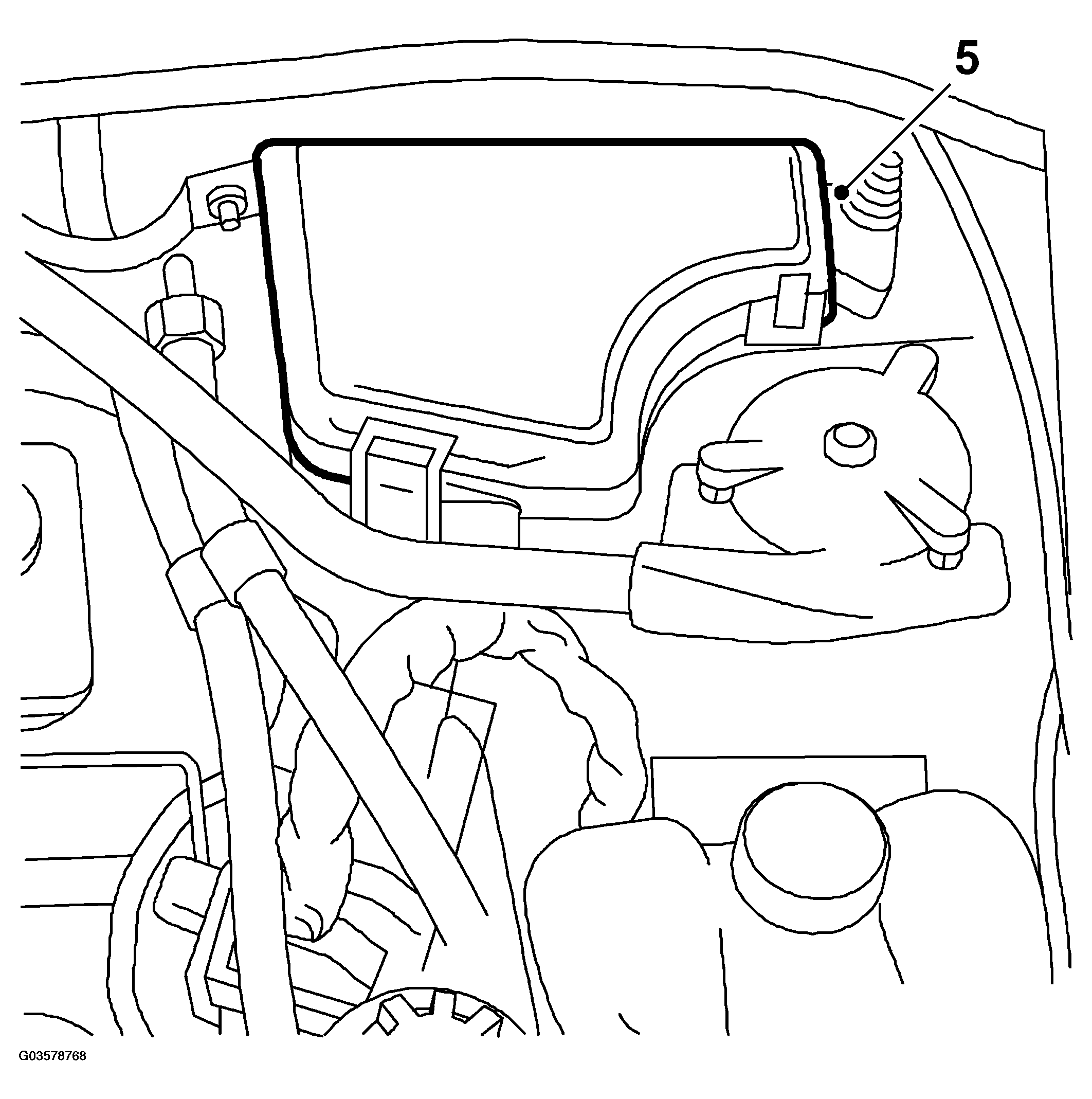

    Fig 2: Illustration For Step 5
    G03578768Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Bleed the brake system. See BLEEDING in DISC - EARLY MODEL or DISC - LATE MODEL .
