Diesel engine: Notes

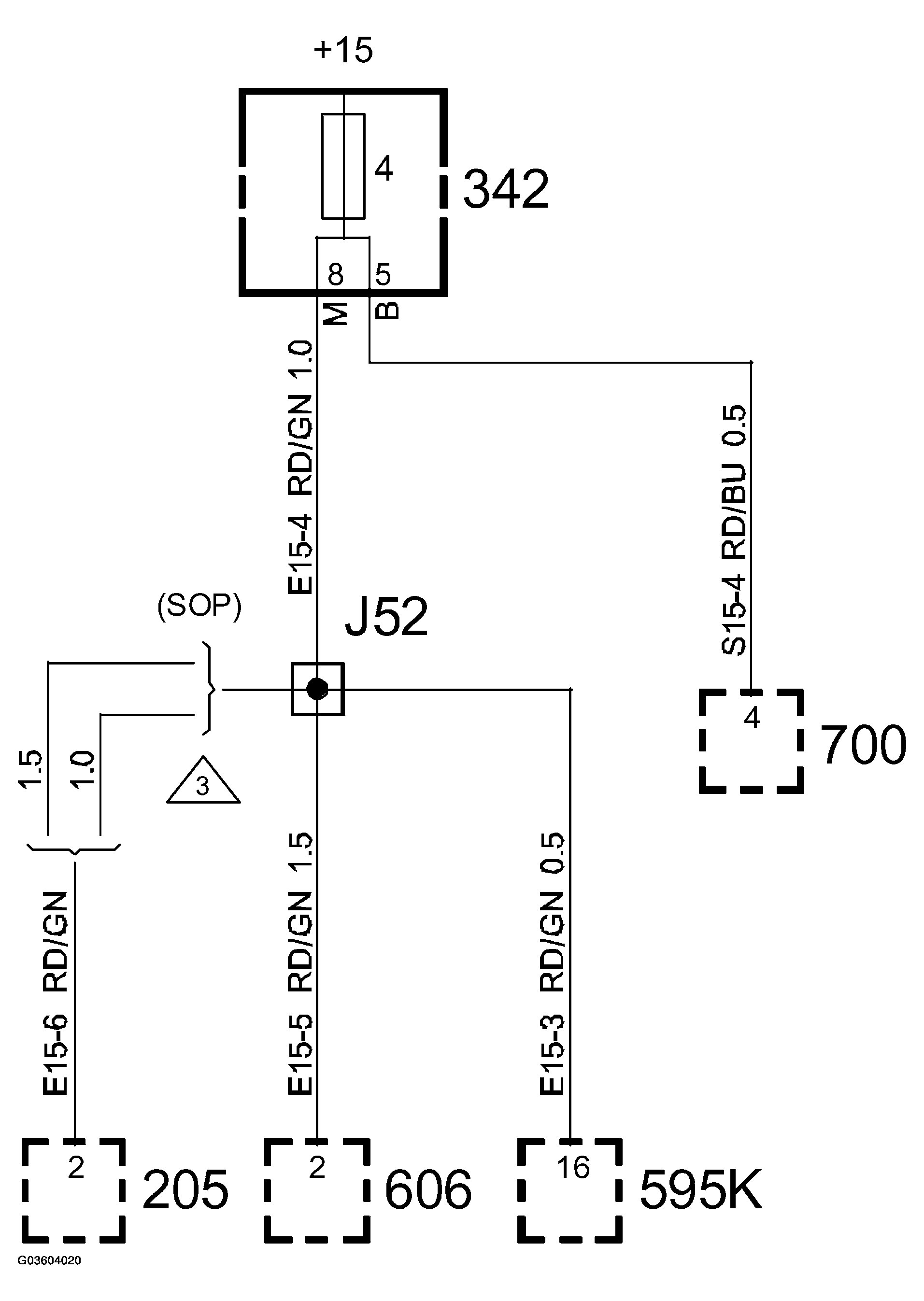

Fig 1: Identifying Fuse 4 Engine Bay Fuse Box 342 Wiring Diagram - Diesel Engine
G03604020Courtesy of SAAB-SCANIA OF AMERICA, INC.
