TRIONIC T8 Fuel Control System (Late; 9440)
>>
Component Location
>>
Power steering fluid pressure sensor (739)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Power steering fluid pressure sensor (739)
Location
: on the top of the servo pump

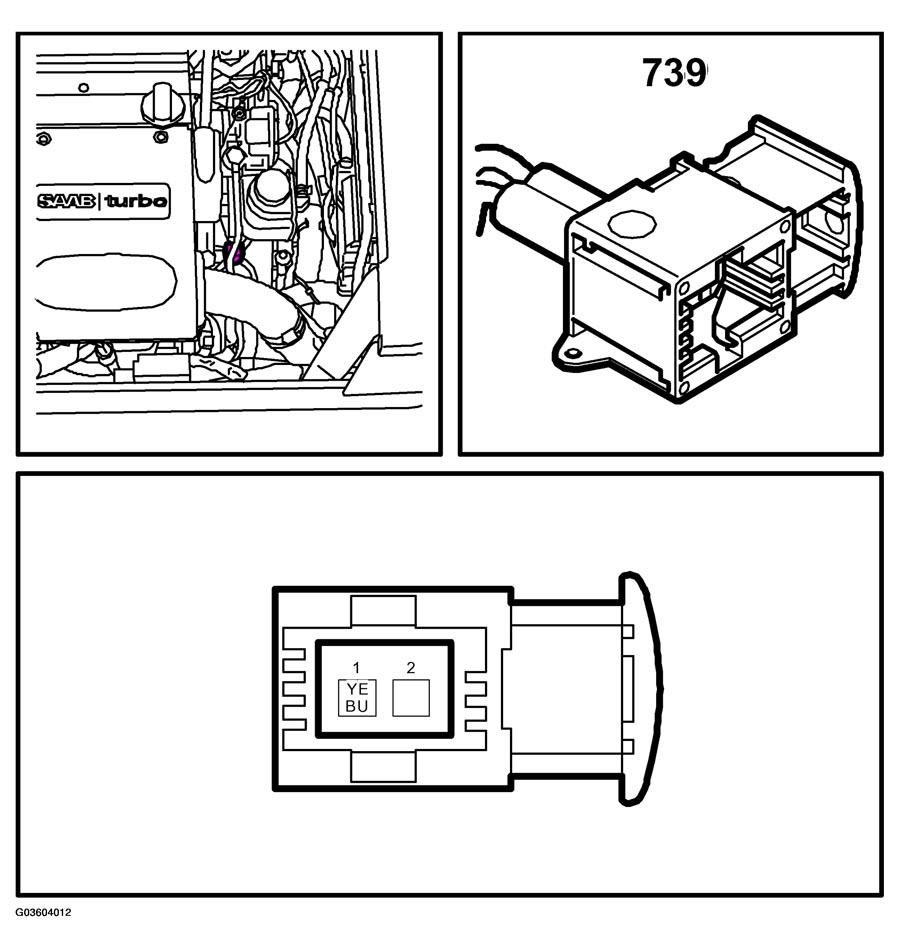

Fig 1: Locating & Identifying Power Steering Fluid Pressure Sensor (739)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
