DTC P1492: EVAP Tank Pressure Sensor. Value Too Low In Depressurized State At The Same Time As The Fuel Level Sensor Diagnosis Has Reported A Fault.: Notes

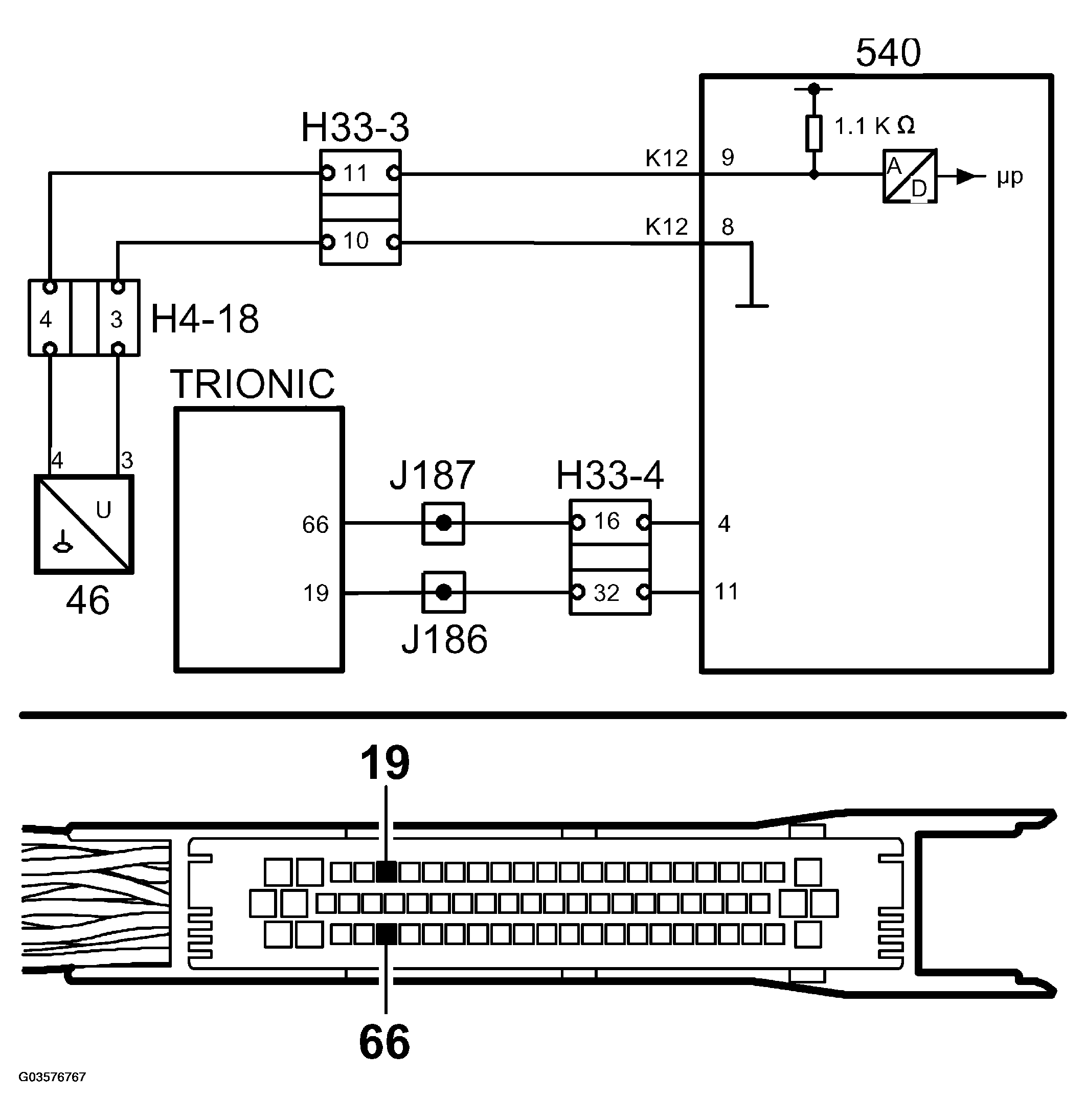

Fig 1: Circuit Diagram - EVAP Tank Pressure Sensor Value Too Low In Depressurized State

Courtesy of SAAB-SCANIA OF AMERICA, INC.
