Electrically adjustable driver's seat with memory control module (357Dk)

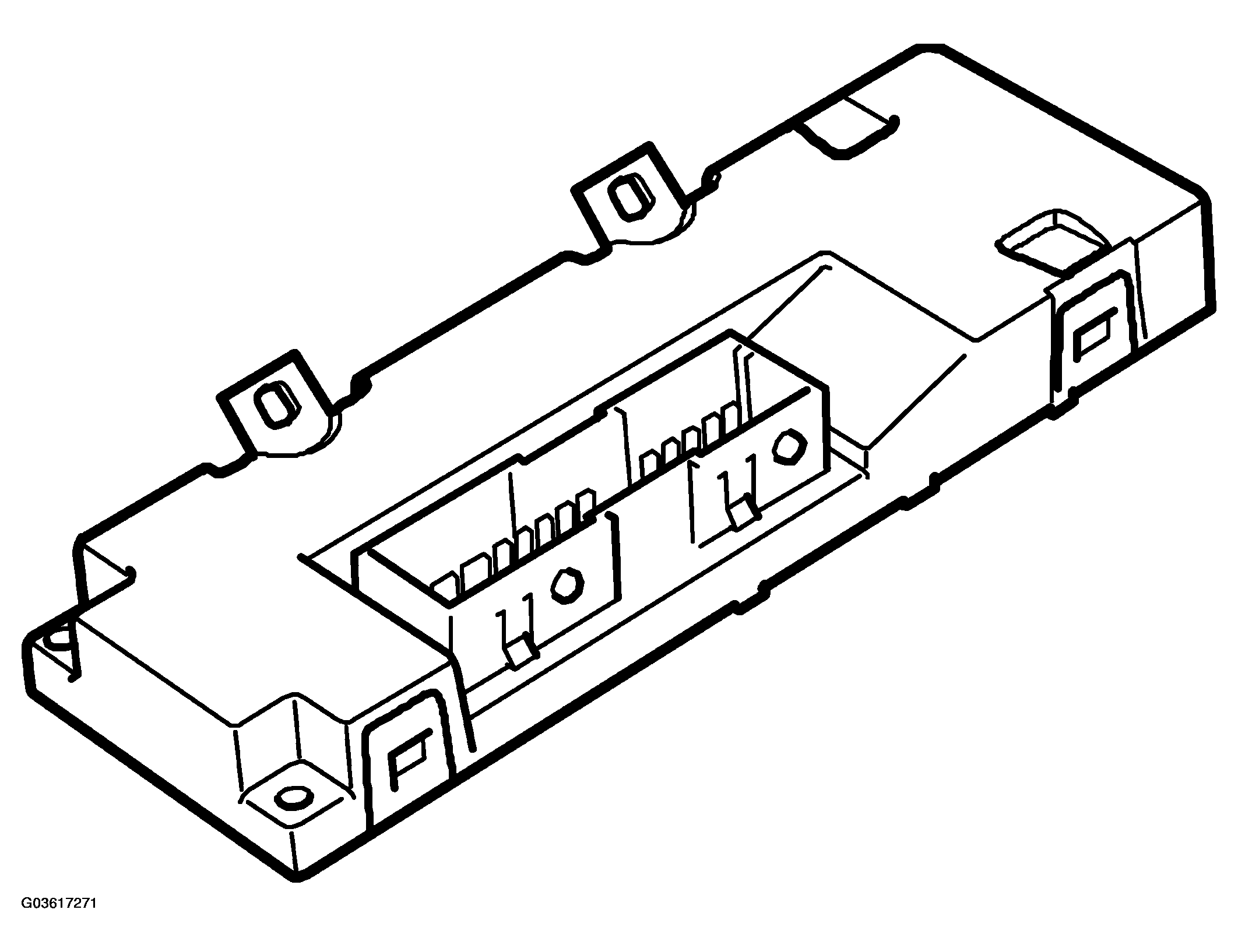

Fig 1: Identifying Memory Control Module (357Dk)
G03617271Courtesy of SAAB-SCANIA OF AMERICA, INC.
PINS DESCRIPTION

Power supply +30 pin 59
Ground pin 58
