PSM Control Module Inputs

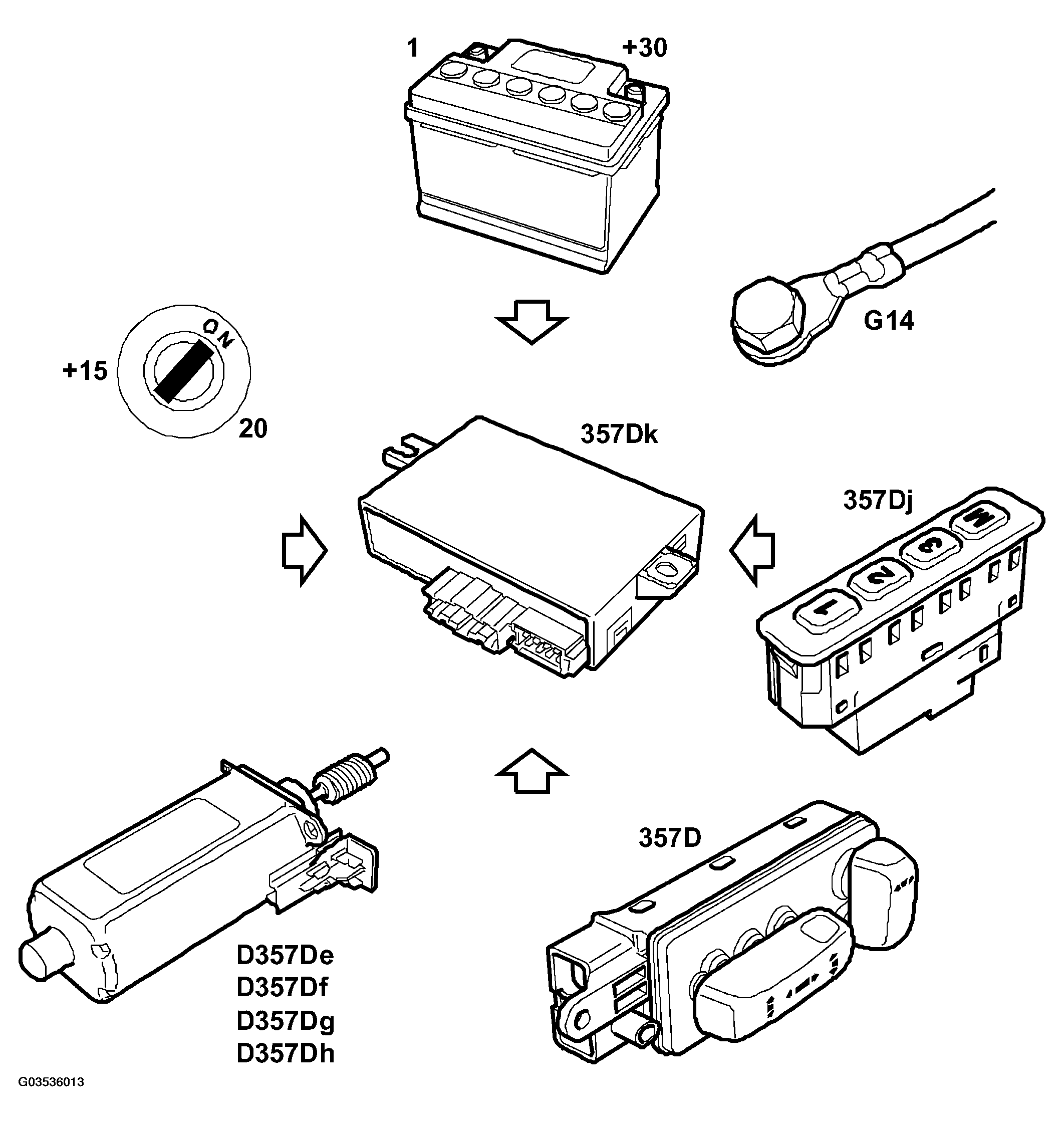

Fig 1: Identifying PSM Control Module Inputs

G03536013

Courtesy of SAAB-SCANIA OF AMERICA, INC.

POWER SUPPLY +15 (20)
POWER SUPPLY +30 (1)
GROUNDING (G14)
SWITCH UNIT (367D), seat adjustment
POSITION SENSOR (357De-Dh), seat adjustment
MEMORY BUTTONS (357Dj)
