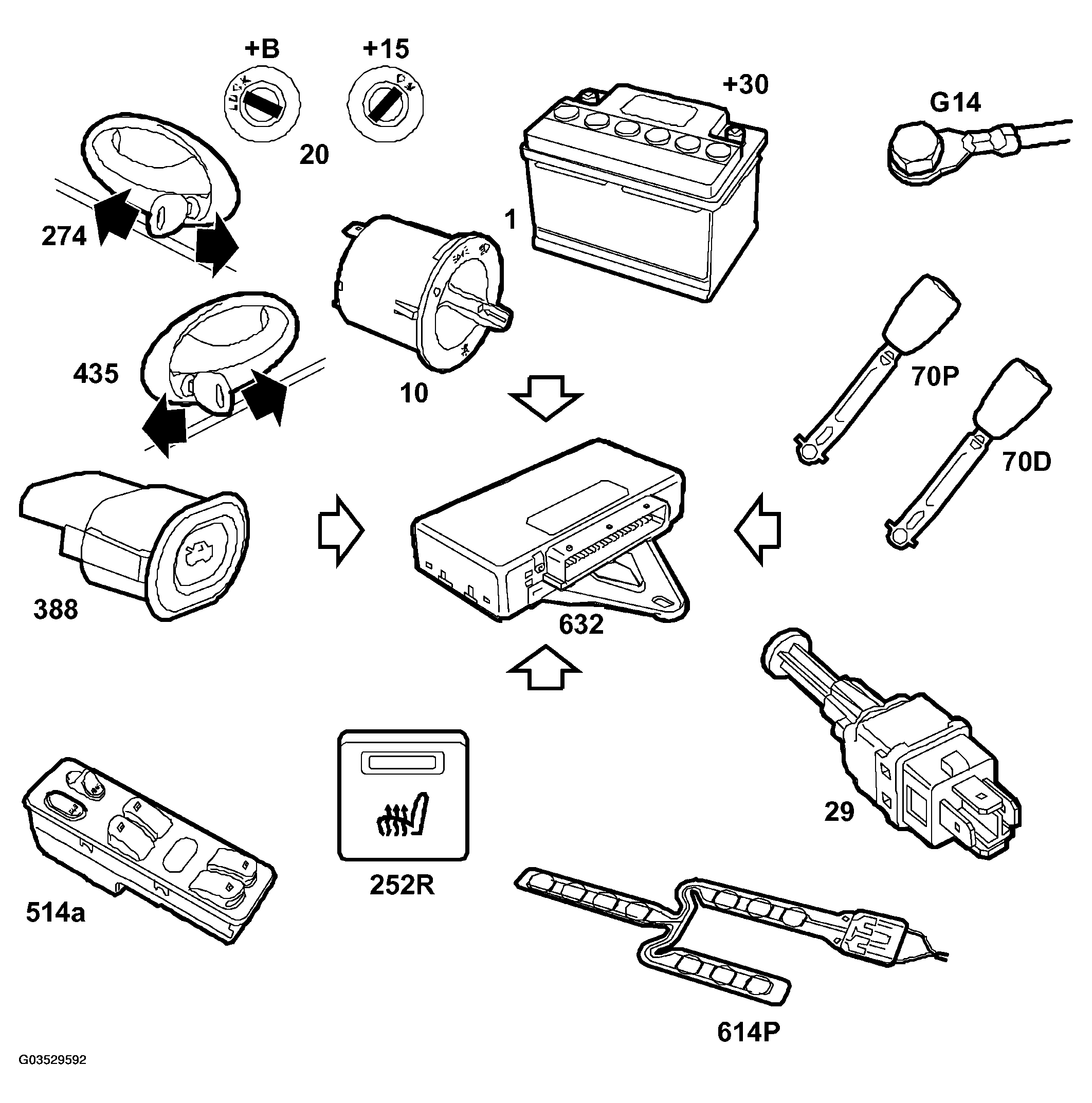

Control Module Inputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Power supply +B (20)
- Power supply +15 (20)
- Power supply +30 (1)
- Power ground (G14)
- Signal ground (G14)
- Lamps, parking lights rear left/right, power supply from switch (10)
- Lamps, brake lights, power supply (29)
- Seat belt switch, driver (70D)
- Seat belt switch, passenger (70P)
- Sensor for occupied seat cushion, front passenger (614P)
- Switch, heated rear seat, request (252R)
- Switch, simultaneous closure central locking system (514a)
- Central locking system, driver's door locking button (184D)
- Switch, luggage compartment unlocking (388)
- Central locking system, power supply (25/22A)
- Microswitch, central locking system, driver's door locking/unlocking with key (274)
- Microswitch, central locking system, passenger door locking/unlocking with key (435)
Courtesy of SAAB-SCANIA OF AMERICA, INC.

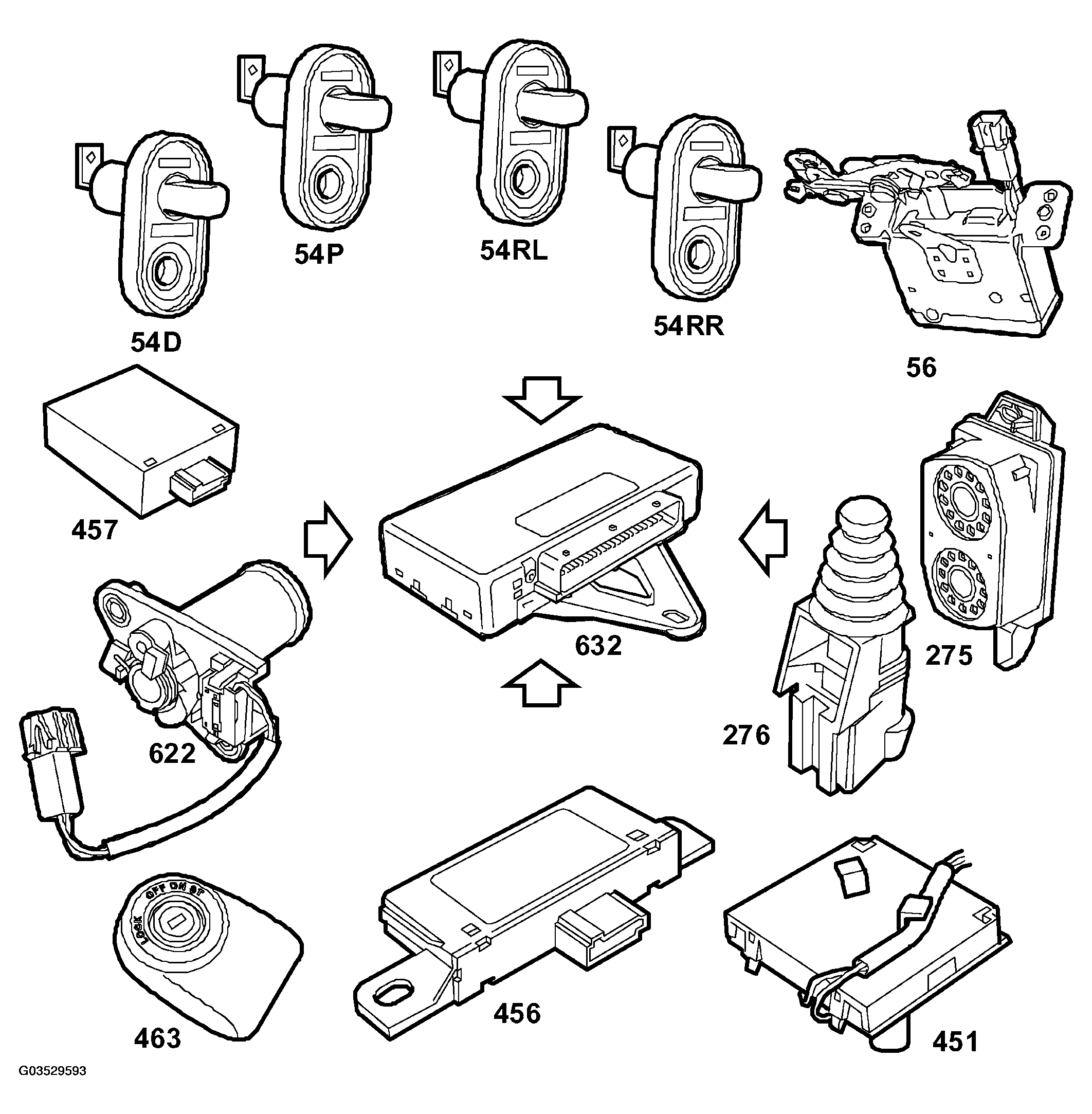

- Door switch, front left (54D)
- Door switch, front right (54P)
- Door switch, rear left (54RL)
- Door switch, rear right (54RR)
- Bonnet switch, anti-theft alarm (276)
- Switch, luggage compartment illumination 3D/5D (56)
- Switch, luggage compartment illumination, convertible (56)
- Glass breakage sensor (451)
- Tilt sensor (457)
- Antenna, remote control, central locking system (456)
- Antenna unit, immobilizer (463)
- Microswitch, luggage compartment lock (622)
- Siren, anti-theft alarm (275)
