Engine speed: Notes

The TCM control module receives information about the current engine speed via the bus. It compares the engine speed with the speed of the input shaft when lock-up is activated. Deviations greater than 100 rpm between the engine speed and the speed of the input shaft will cause diagnostic trouble code P0741 to be generated.

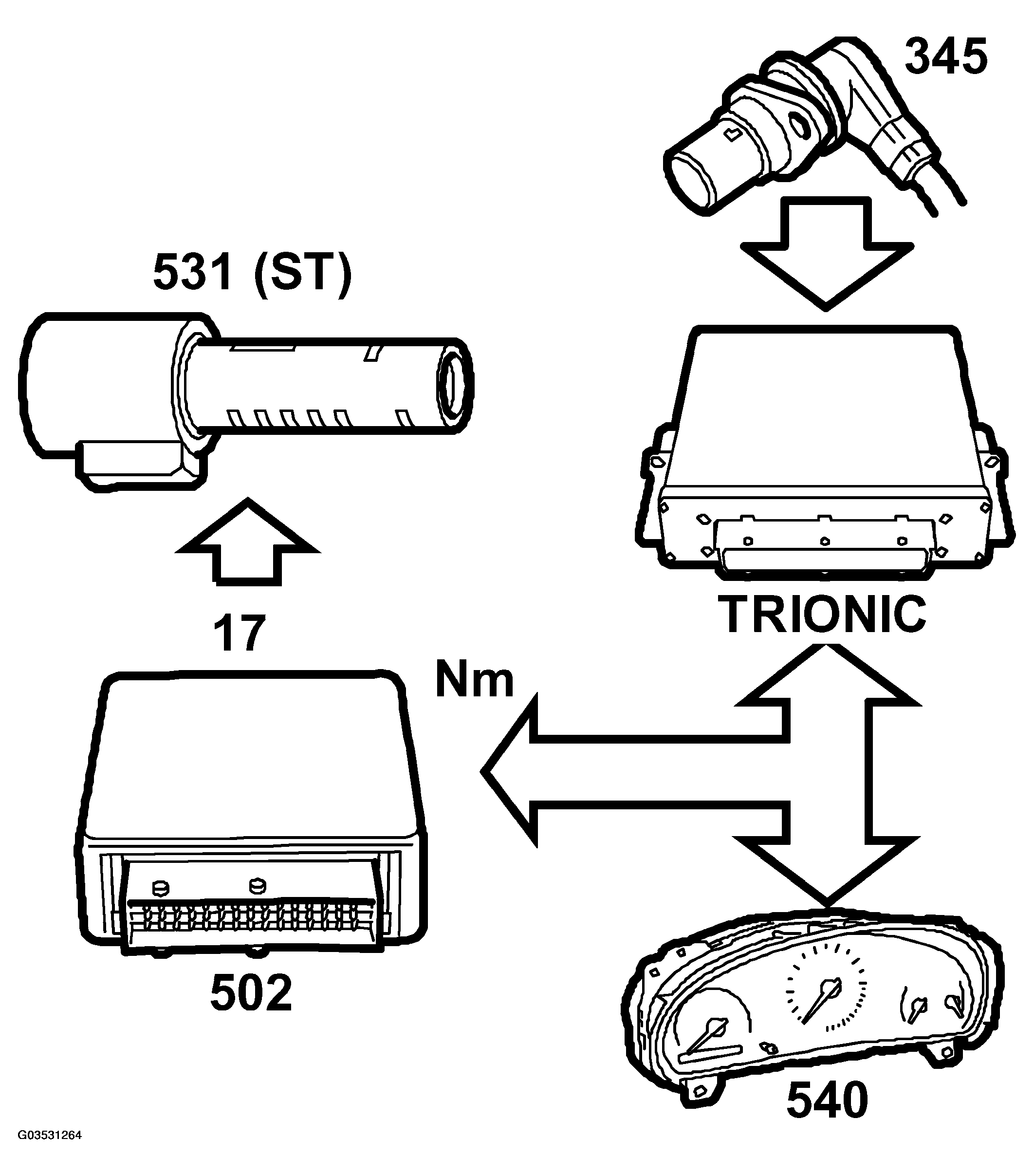

Fig 1: Identifying Engine Speed Communication Flow
G03531264Courtesy of SAAB-SCANIA OF AMERICA, INC.
