Control module inputs, bus

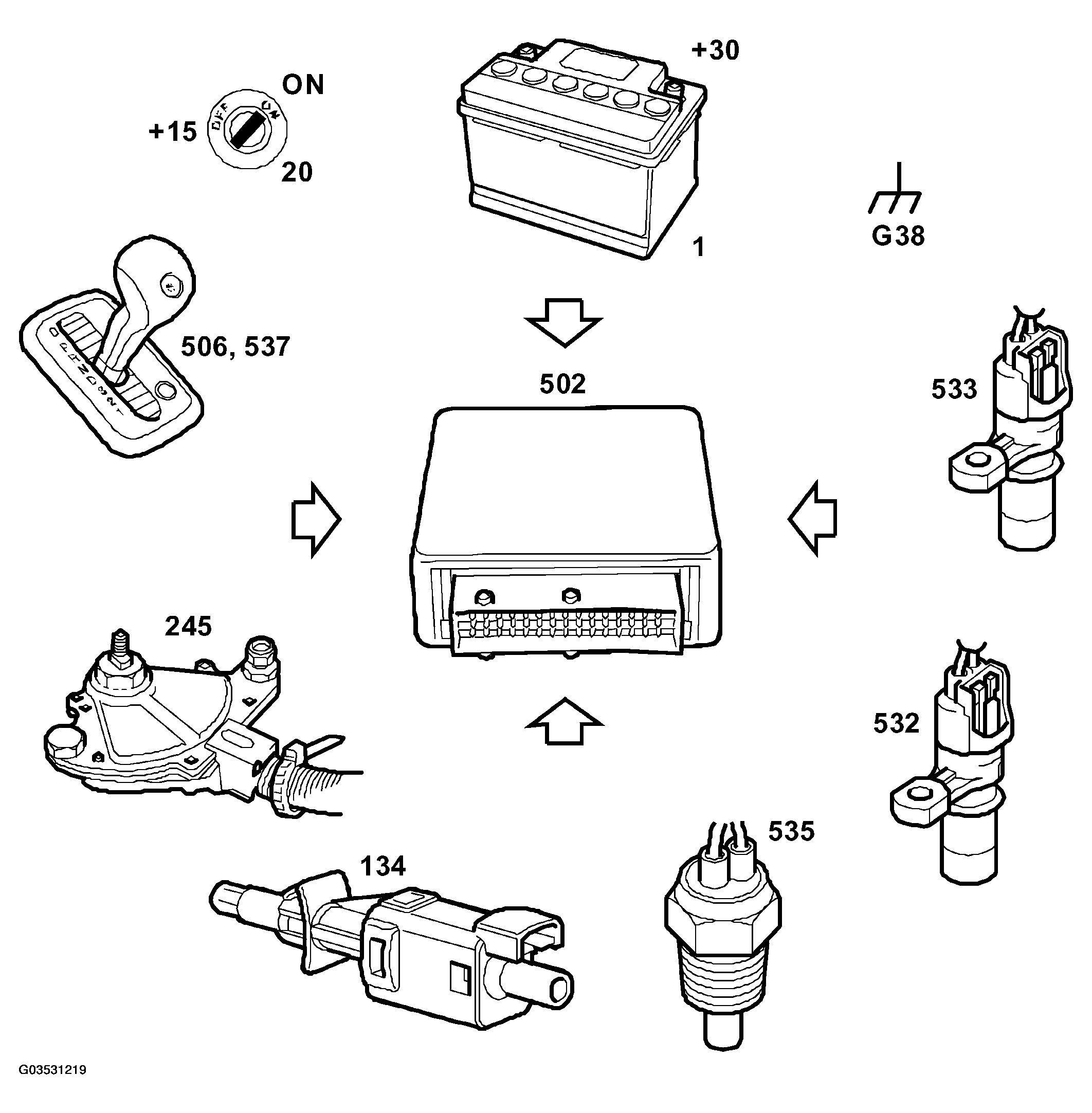

Fig 1: Identifying Control Module Inputs Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Battery voltage +30 (1), see CONTROL MODULE POWER SUPPLY
Battery voltage +15 (30), see CONTROL MODULE POWER SUPPLY
Ground (G38), see CONTROL MODULE GROUND
Input shaft speed sensor (532), see INPUT SHAFT SPEED SENSOR
Output shaft speed sensor (533), see OUTPUT SHAFT SPEED SENSOR
Engine oil temperature sensor (535), see TRANSMISSION FLUID TEMPERATURE SENSOR
Gear selector position sensor (245), see GEAR SELECTOR POSITION SENSOR - GEAR ENGAGED
SPORT switch (537), see SPORT SHIFTING PROGRAM
WINTER switch (506), see SHIFTING PROGRAM, WINTER

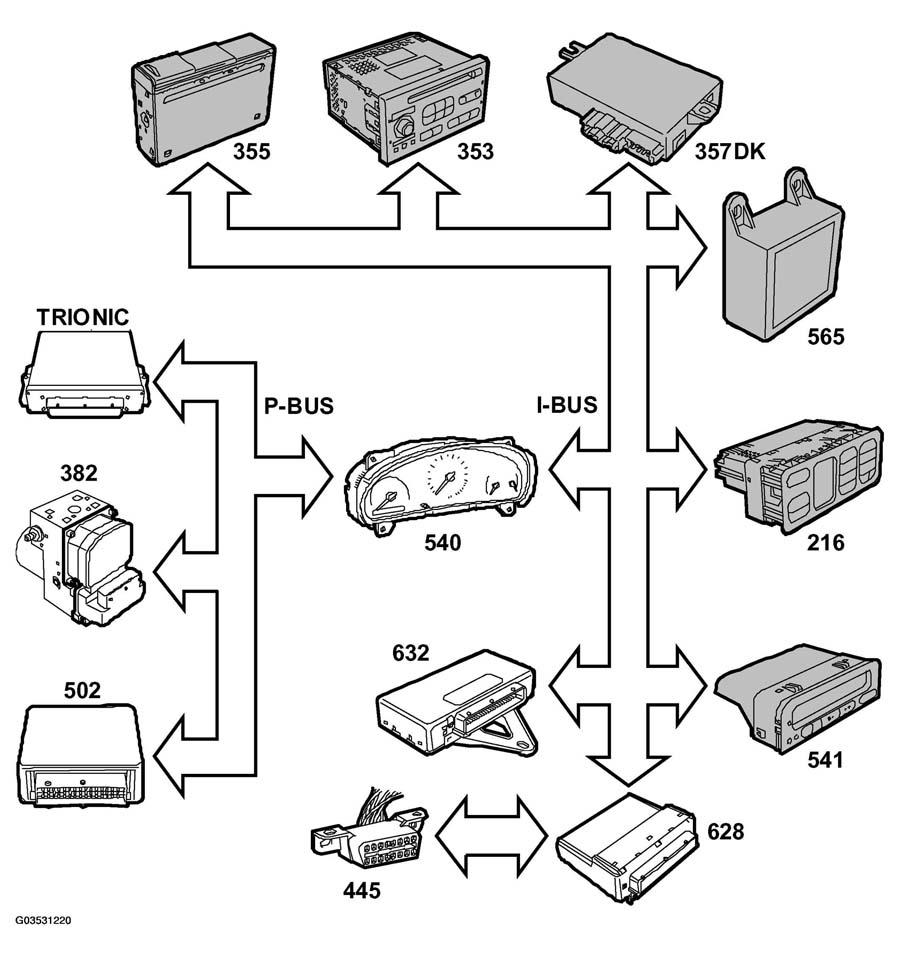

Fig 2: Identifying Control Module Bus Inputs Components
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Bus communication, see BUS COMMUNICATION
Accelerator pedal position (Bus from Trionic) (430), see ACCELERATOR PEDAL POSITION
Engine torque (Bus from Trionic) (430), see MAXIMUM PERMITTED TORQUE
Kickdown (Bus from Trionic) (430), see KICKDOWN FUNCTION
Engine speed (Bus from Trionic) (430), see ENGINE SPEED
Brake lights (Bus from TWICE) (632), see BUS COMMUNICATION
