Principal components

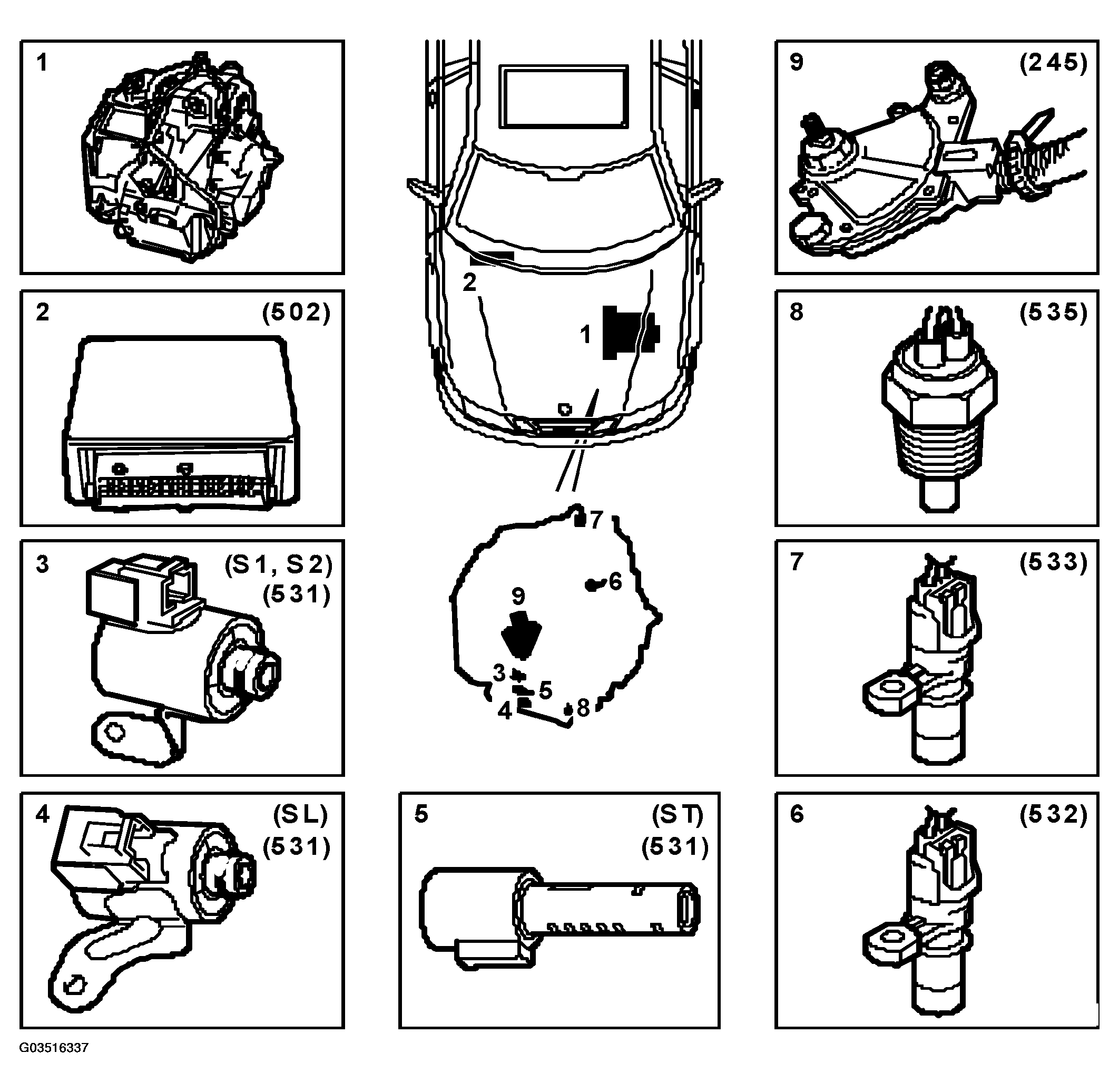

Fig 1: Illustration For Steps 1-9

G03516337

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The automatic transmission consists of the following principal components:

Gearbox
Control module, (TCM) 502
Solenoid valves for shifting, (S1 and S2) 531
Solenoid valve for Lock-up, (SL) 531
Solenoid valve for system pressure, (ST) 531
Input shaft speed sensor, 532
Output shaft speed sensor, 533
Transmission fluid temperature sensor 535
Gear selector position sensor 245
