To remove

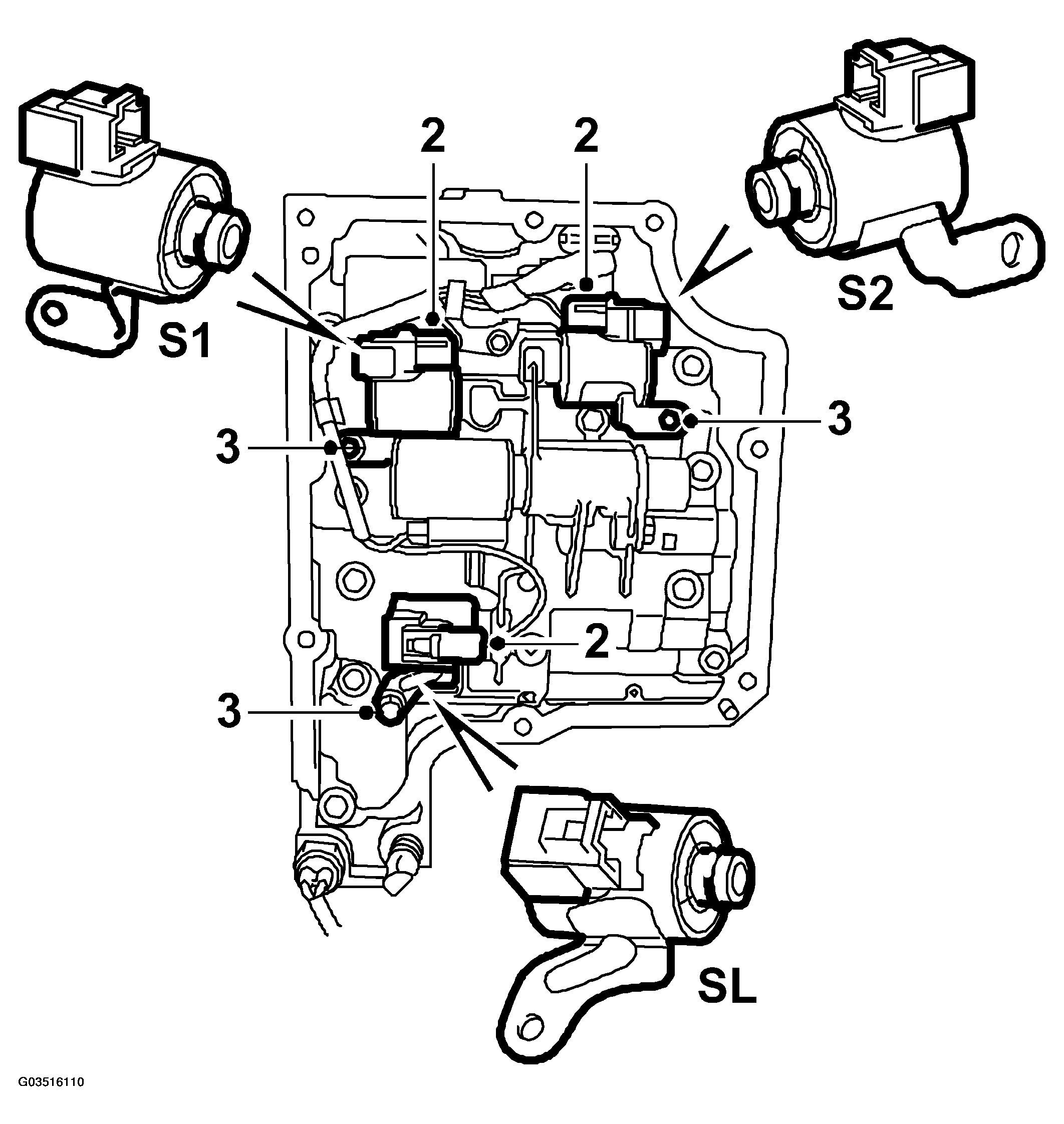

Fig 1: Illustration For Steps 2-3
G03516110Courtesy of SAAB-SCANIA OF AMERICA, INC.
IMPORTANT: Solenoid ST, which controls system pressure, must not be removed!
  1. Remove the valve housing cover. see VALVE HOUSING COVER .
  2. Unplug the relevant solenoid's connector.
  3. Remove the solenoid's retaining bolt.
  4. Pry the solenoid loose, using a screwdriver.
