Indicator Lamp TCS OFF: Notes

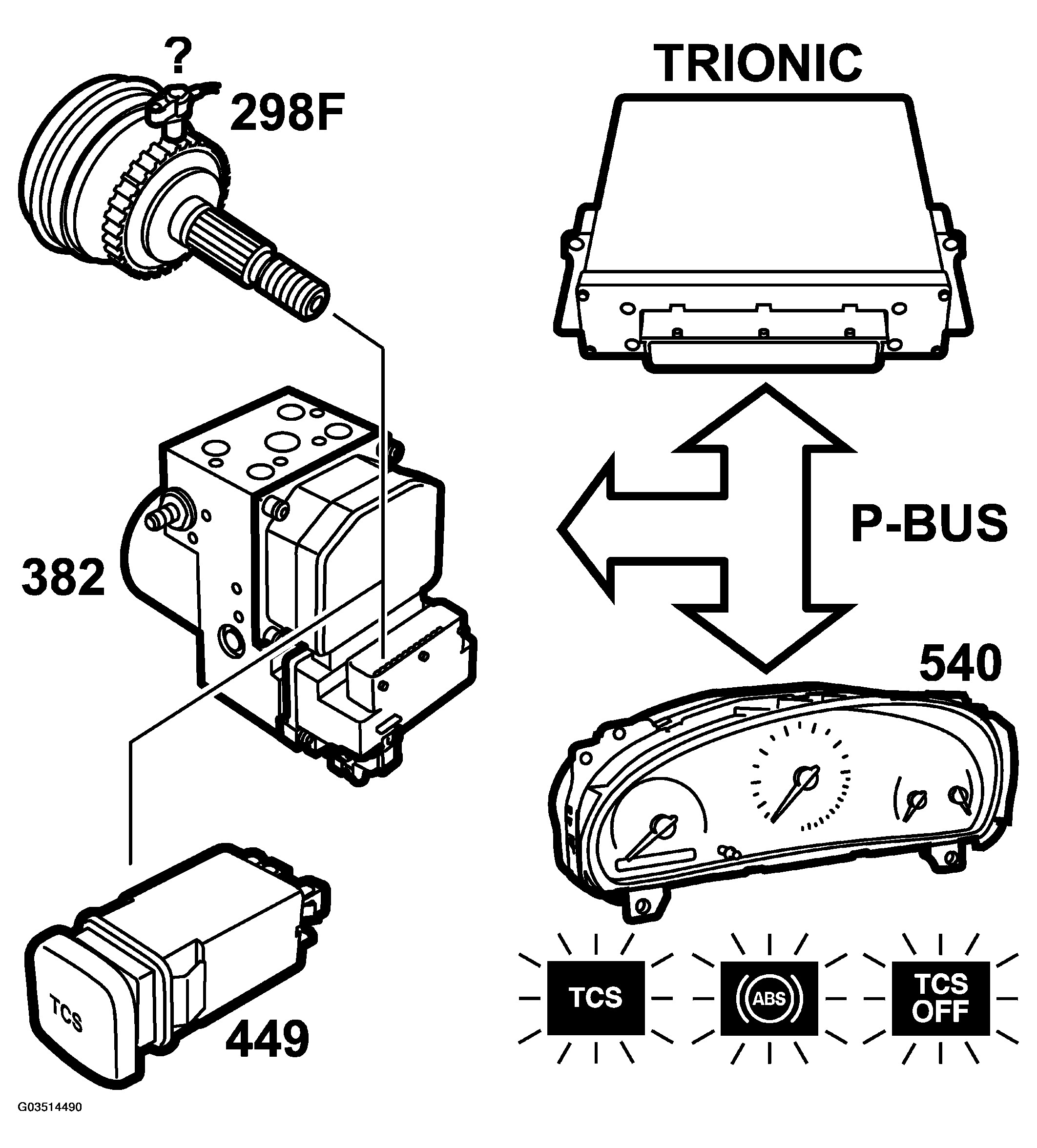

Fig 1: TCS Indicator Lamp OFF - Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

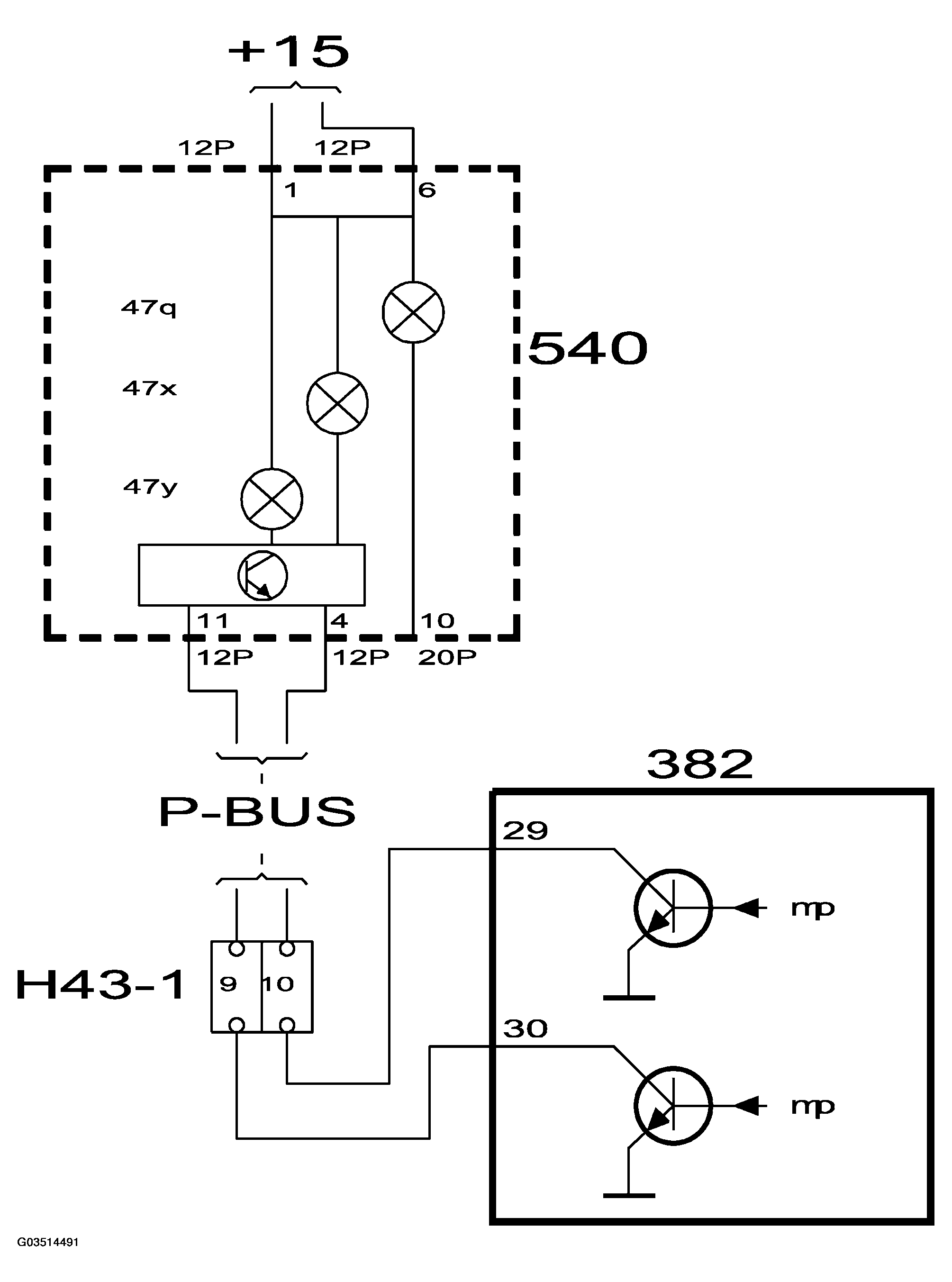

Fig 2: TCS Indicator Lamp OFF - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

If a fault occurs in the TC/ABS system, the TCS OFF indicator lamp will be turned on via the P-bus. The warning lamp is also turned on when the system is disabled manually, which can be done at speeds below 60 km/h (37.5 mph) by pressing the TCS switch. The system can be engaged by pressing the TCS switch at any speed, whereby the TCS OFF lamp will go out again.

The lamp lights up when the ignition is switched on. If no fault is detected it goes out after 3-5 seconds.
