To remove

  1. Remove the retaining bolt and pull up the sensor.

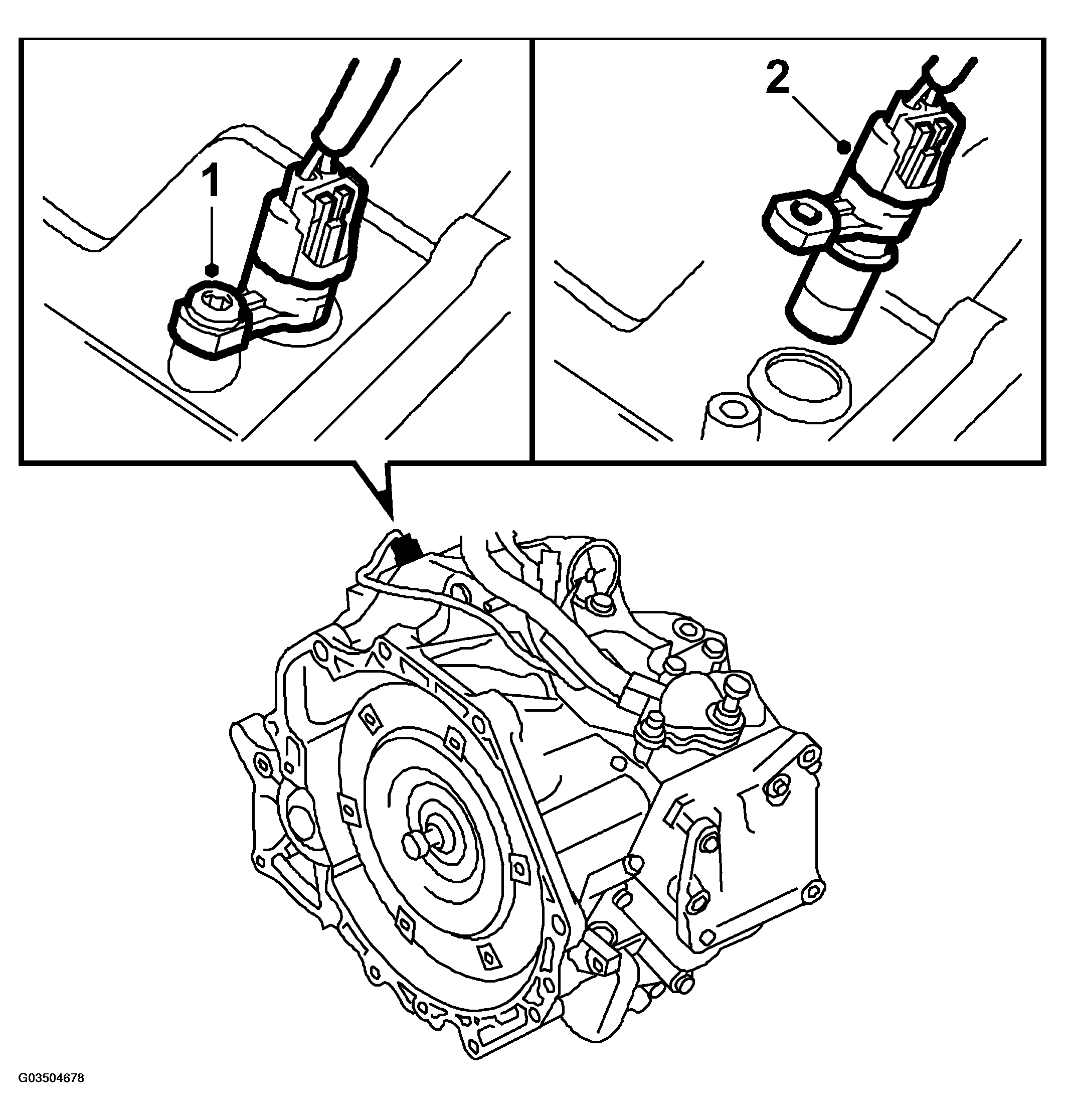

    Fig 1: Illustration For Steps 1-2
    G03504678Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the sensor's connector.
