Testing For Open Circuits By Measuring Resistance

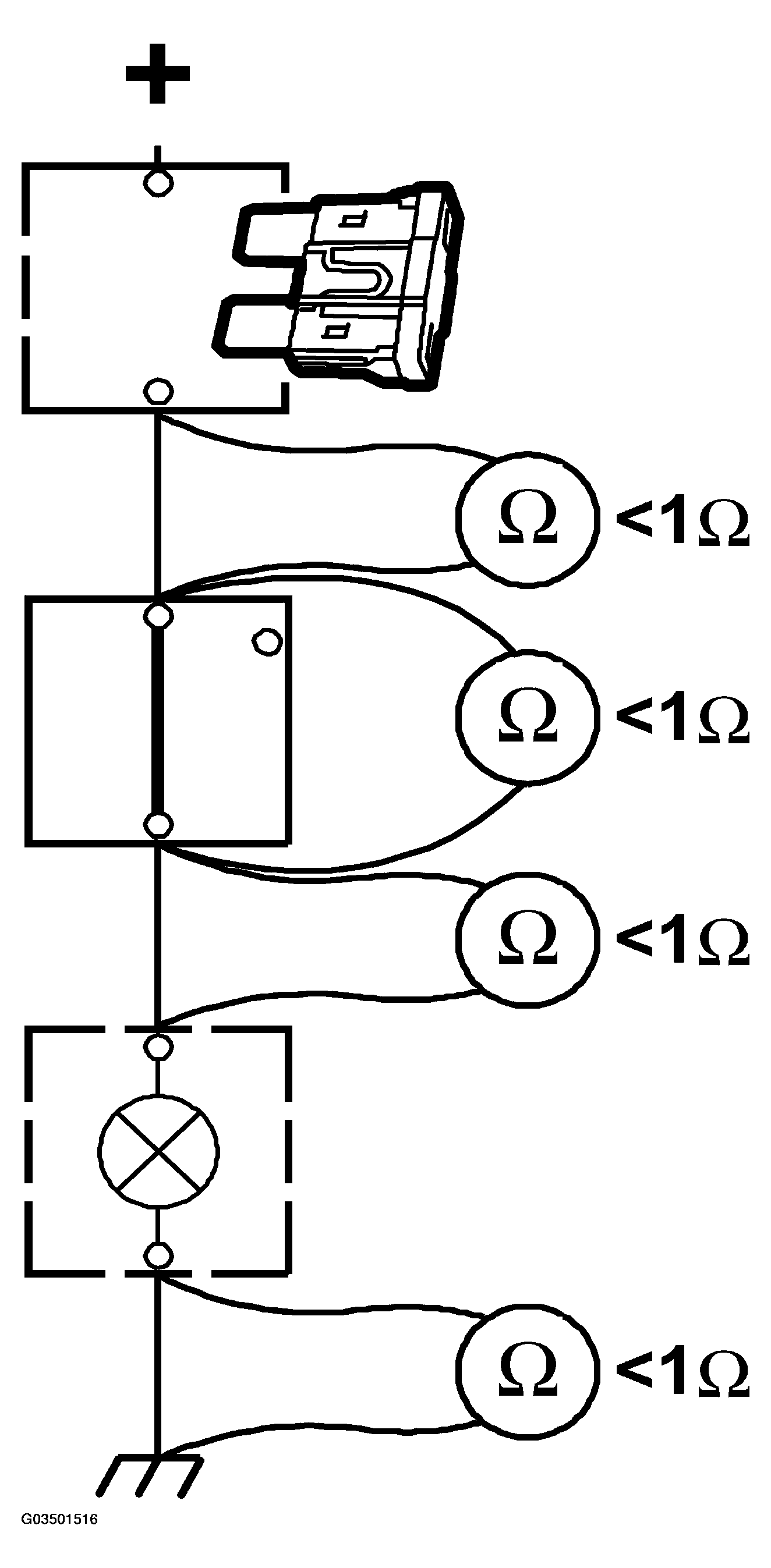

Fig 1: Measuring Open Circuit Resistance
G03501516

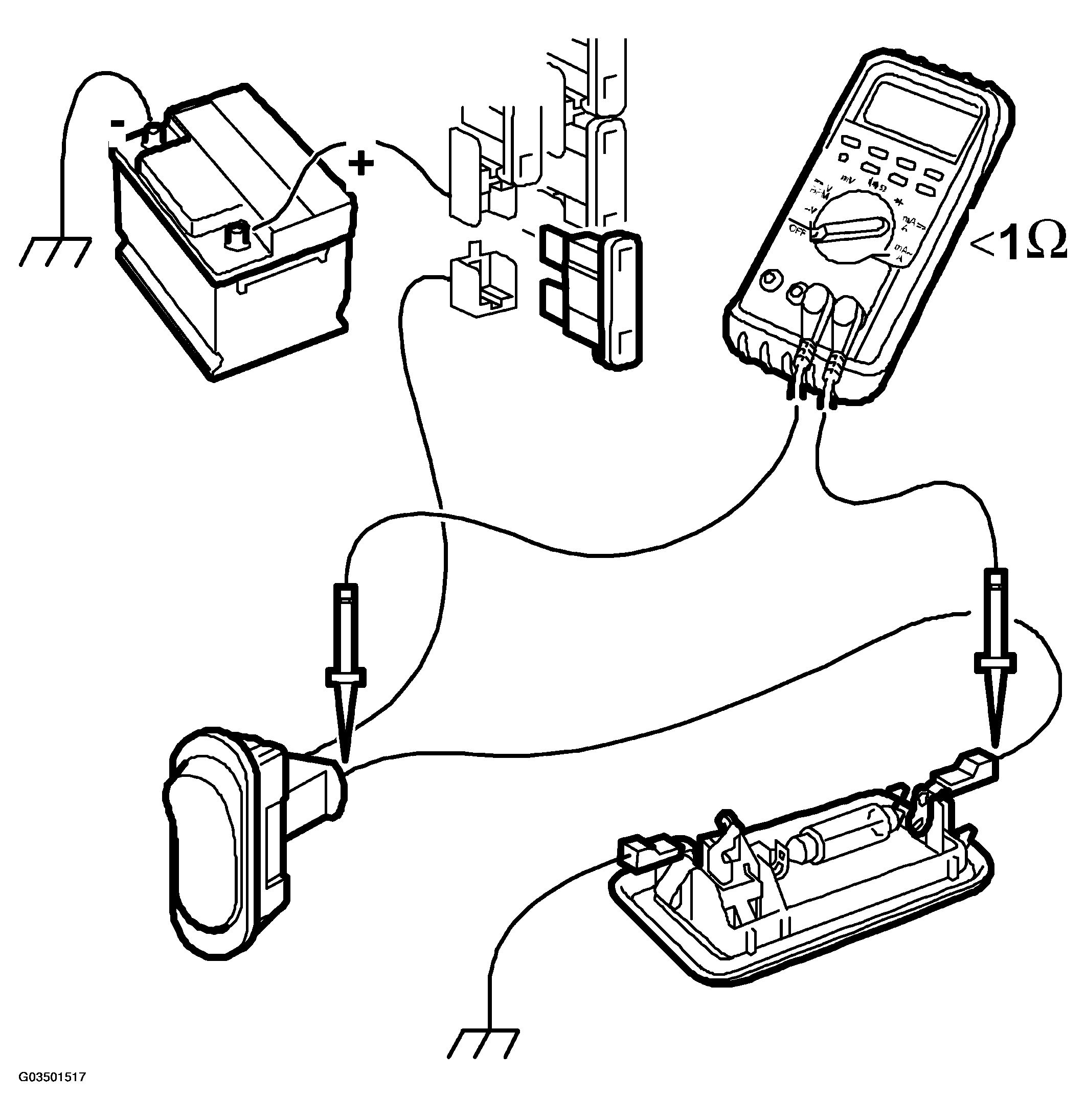

Fig 2: Testing For Open Circuit
G03501517
  1. Make sure the component or lead to be tested is not under tension (e.g. by removing the relevant fuse).
  2. Set the multimeter for measuring ohms and connect the ohmmeter to each end of the component/lead to be tested.
  3. Jiggle the relevant wiring harness while observing the ohmmeter.

    Normally, the resistance of a wiring harness is less than 1 ohm. Specified values apply to components.
