Trionic T7 control module 4-cyl LEV/OBDII (589b)

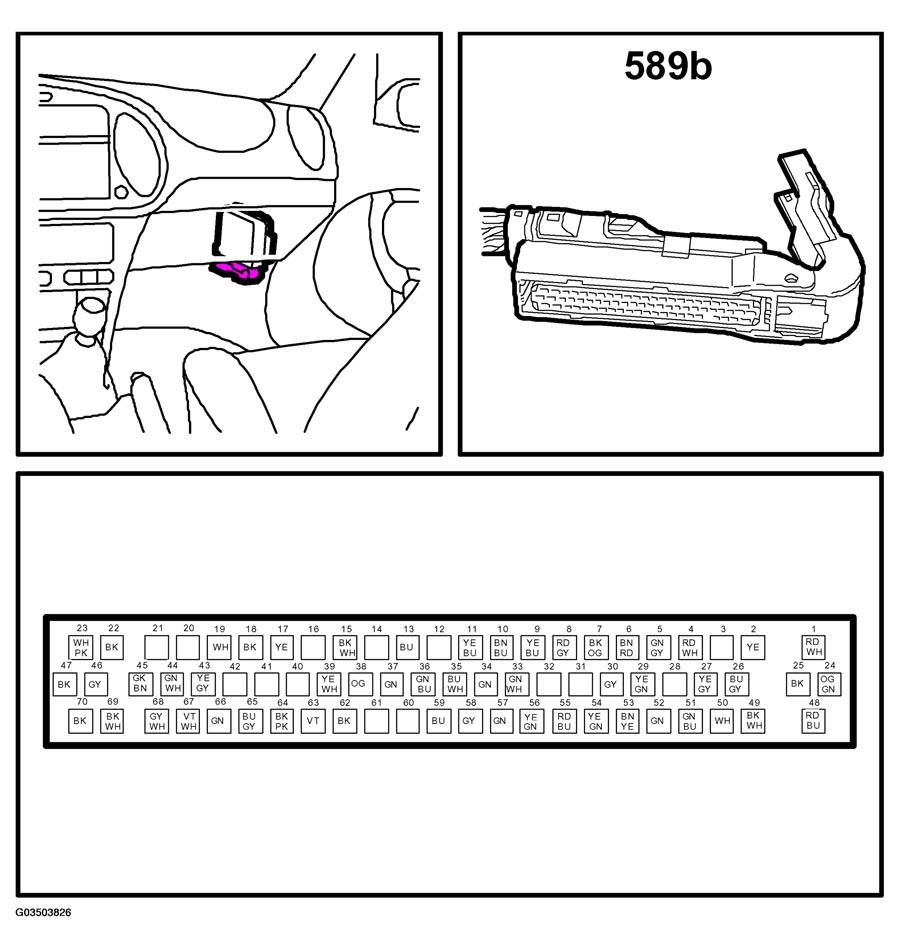

Fig 1: Identifying Trionic T7 Control Module
G03503826Courtesy of SAAB-SCANIA OF AMERICA, INC.
