To fit

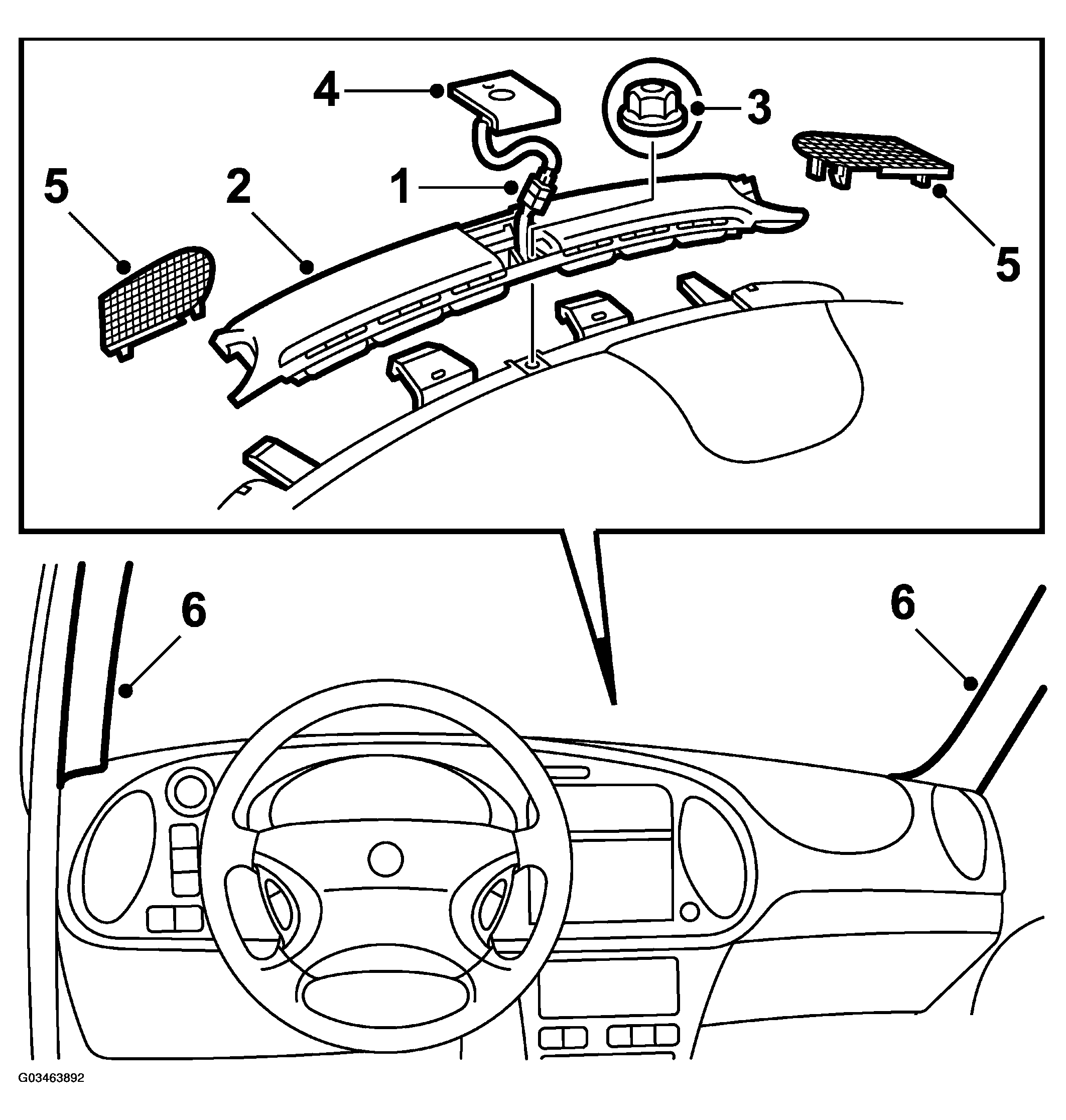

Fig 1: Installing LED (Light Emitting Diode)
G03463892Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the LED on the plate and attach the connector to the LED. Ensure that the connector is correctly positioned underneath the defroster cover.
  2. Fit the defroster cover at the front edge first and then with the clips at the rear edge.
  3. Fit the nut.
  4. Push the plate with the LED into position.
  5. Fit the loudspeaker grille.
  6. Fit the trim on the A-pillar.
