To remove

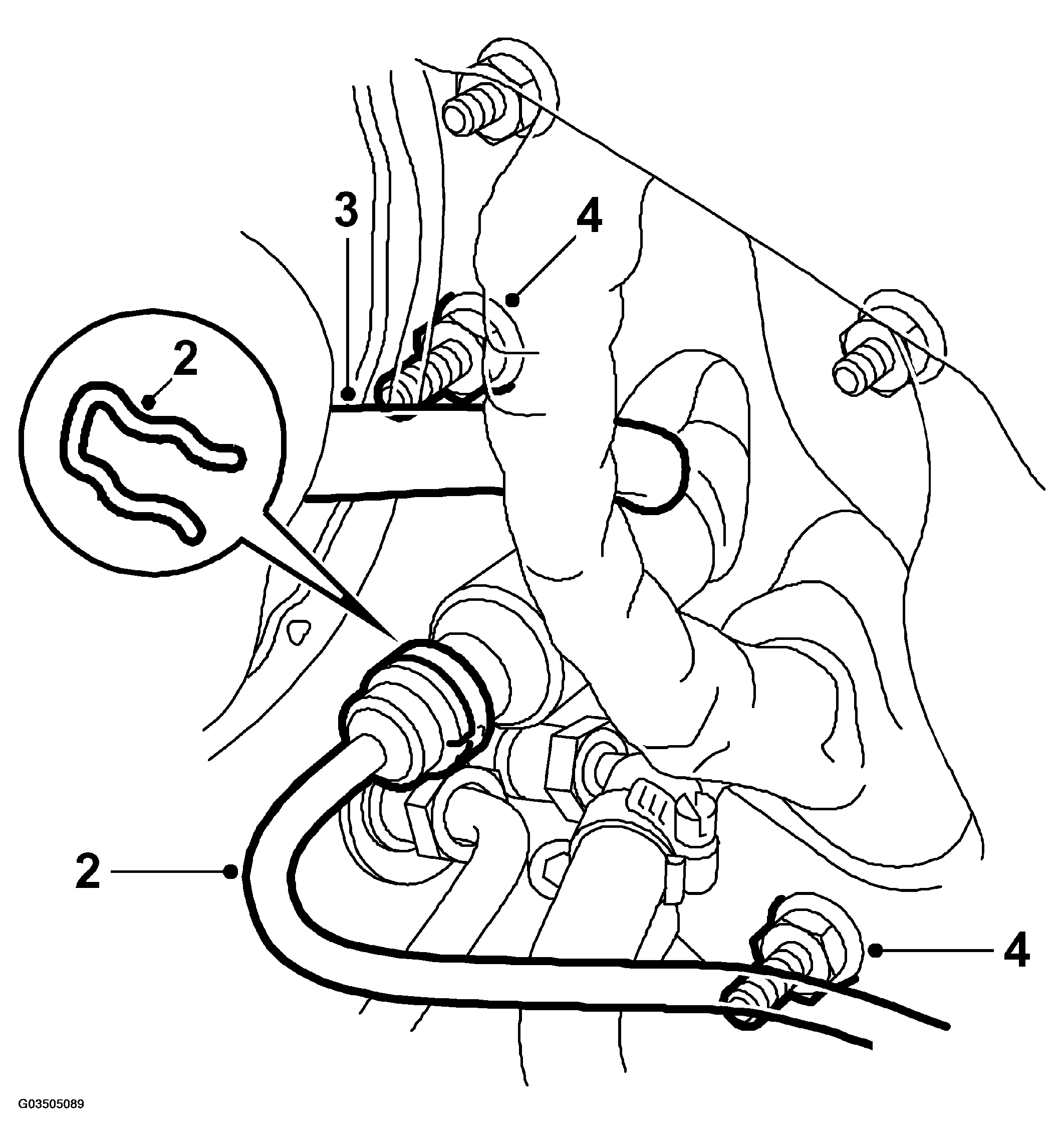

Fig 1: Illustration For Step 2-4
G03505089Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Drain the clutch system (brake fluid) through the bleed nipple on the slave cylinder using 88 19 096 BLEEDING EQUIPMENT
  2. Detach the clip and then the delivery line from the master cylinder.
  3. Detach the supply hose from the master cylinder.
  4. From the engine bay, remove the nuts holding the clutch pedal bracket to the scuttle panel.
  5. Remove the steering wheel, steering column and lower panel. See STEERING COLUMN .
  6. Detach the main fuse box and the pedal switch.

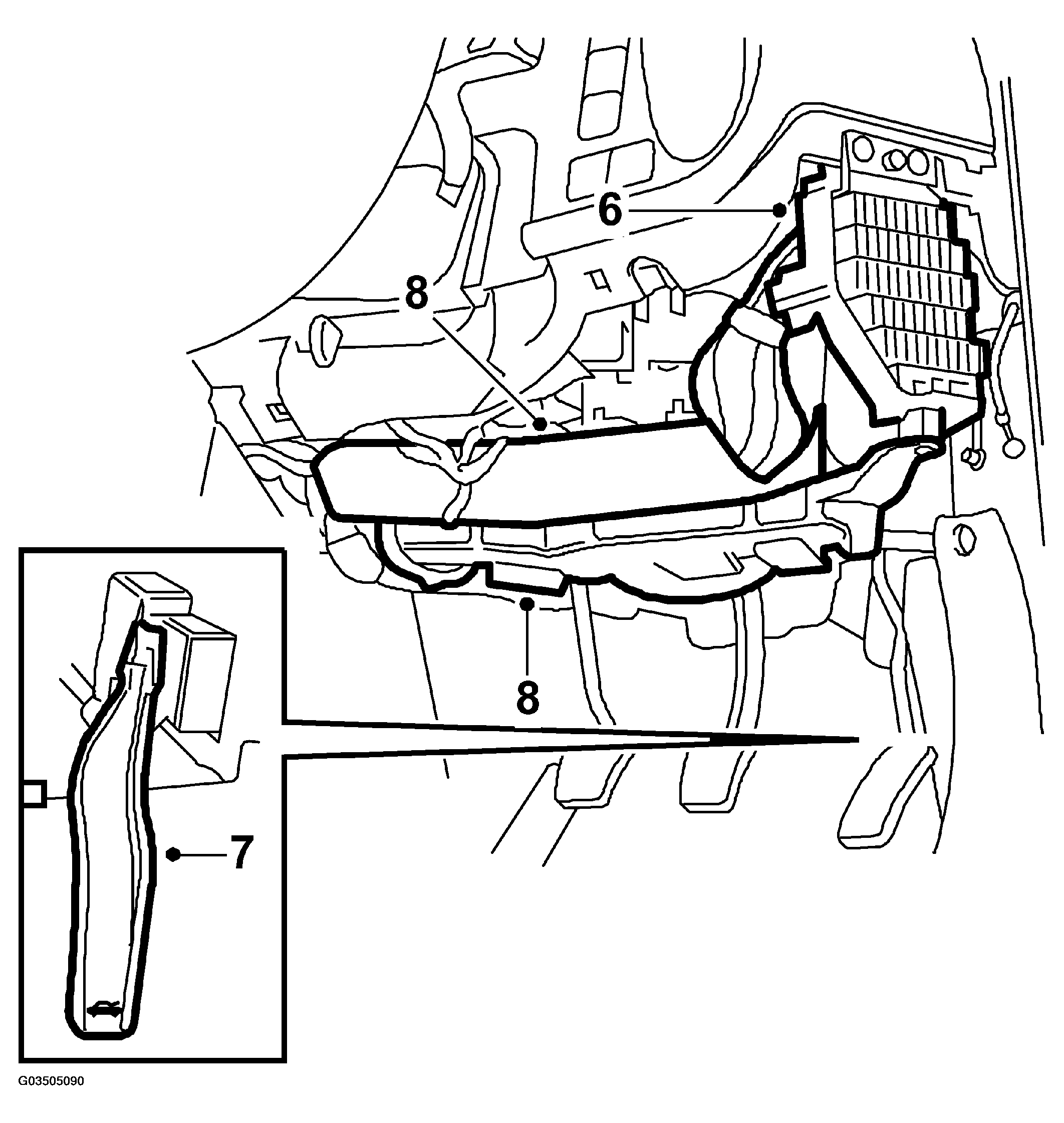

    Fig 2: Illustration For Step 6-8
    G03505090Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the bonnet release by using a little screwdriver to detach the 2 small hooks.
  8. Remove the air ducts (side defroster and floor air) and the cable ties of the wiring harness that site on the pedal bracket.
  9. Slightly loosen the nuts in the passenger compartment.

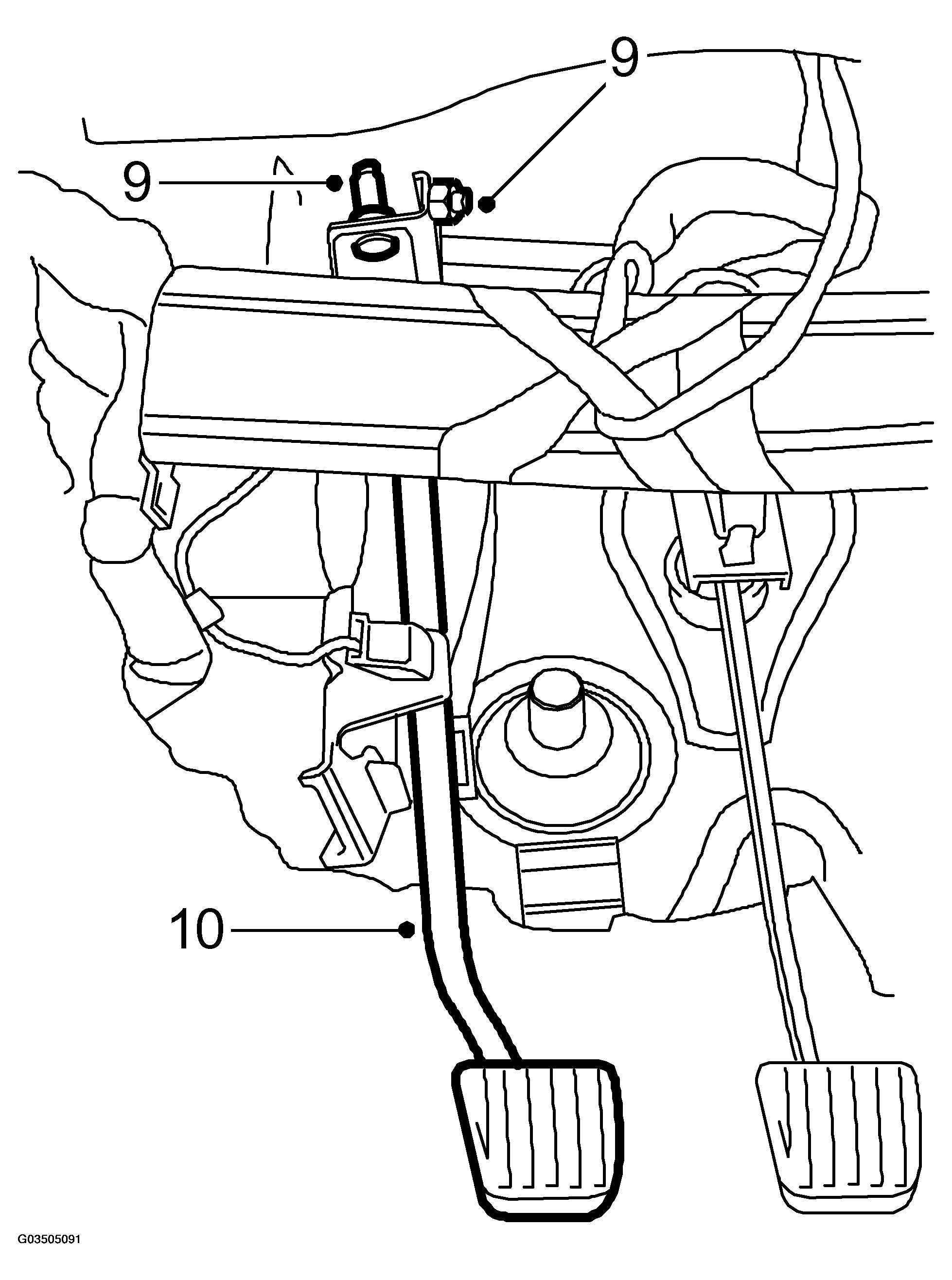

    Fig 3: Illustration For Step 9-10
    G03505091Courtesy of SAAB-SCANIA OF AMERICA, INC.
  10. Lift out the pedal bracket.
