Delivery pipe RHD: Fitting

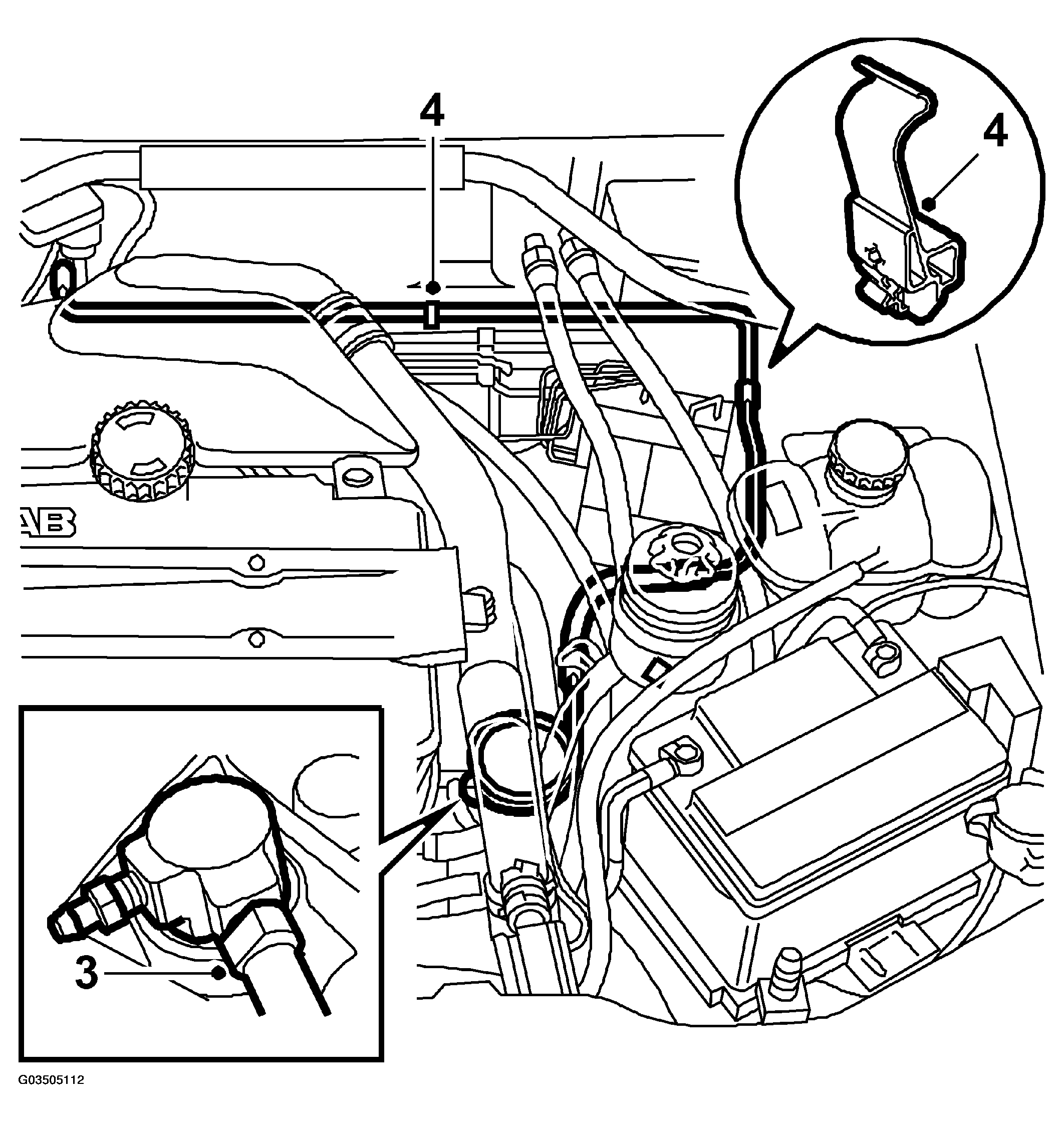

Fig 1: Illustration For Step 2-3

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Blow clean the pipe and put it in place.
Press the delivery pipe into the master cylinder.
Connect the delivery pipe to the slave cylinder and tighten the nut. Press back the locking clip. Make sure that the pipe does not come into contact with the gearbox.
Tightening torque 15 N.m (11 lbf ft).
Press the pipe into the plastic clip.

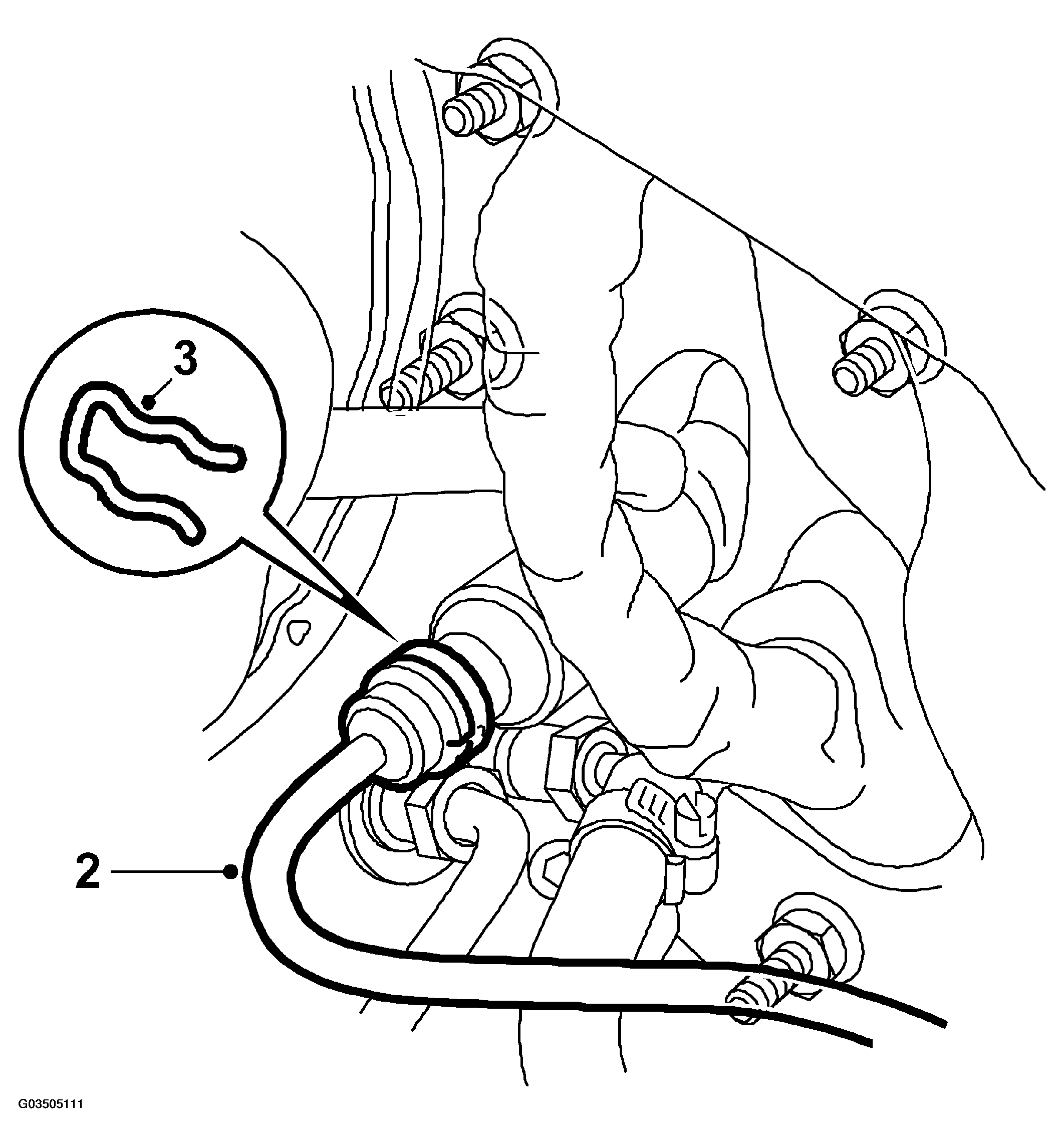

Fig 2: Illustration For Step 3-4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Top up with brake fluid and bleed the system, see BLEEDING THE HYDRAULIC CLUTCH SYSTEM IN THE CAR .
Make sure all the connections are tight.
Test the clutch.
