Control buttons on the remote control

REMOTE CONTROL BUTTONS

LOCK Used to lock the car with the central locking and arm the anti-theft alarm.
UNLOCK Used to unlock the car with the central locking and disarm the anti-theft alarm.
BOOT LID/TAILGATE Used to unlock the luggage compartment only and disarm the tailgate.

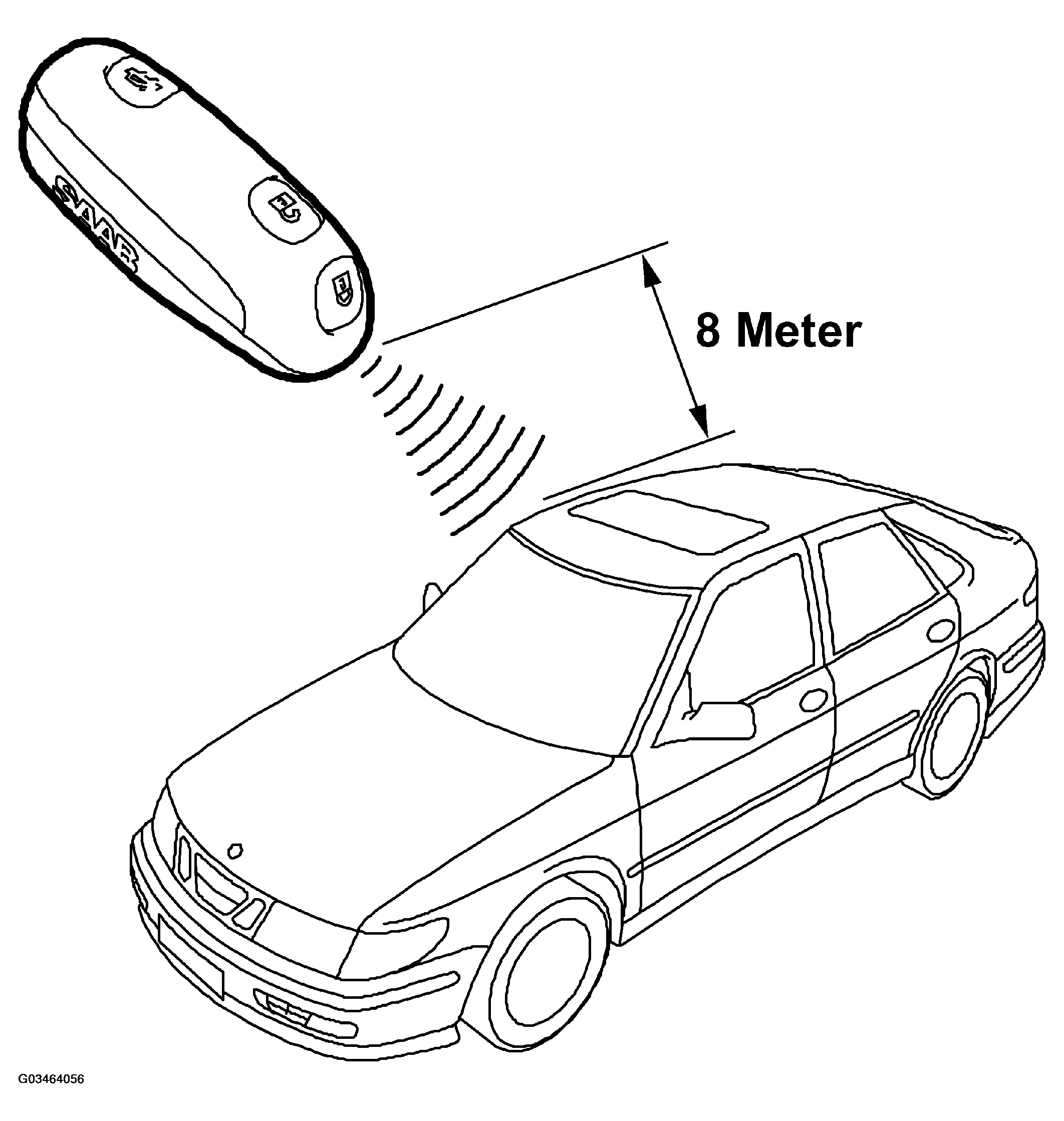

Fig 1: Identifying Remote Control Range
G03464056Courtesy of SAAB-SCANIA OF AMERICA, INC.
