To Fit

  1. Fit the screws securing the control module to the mounting bracket.

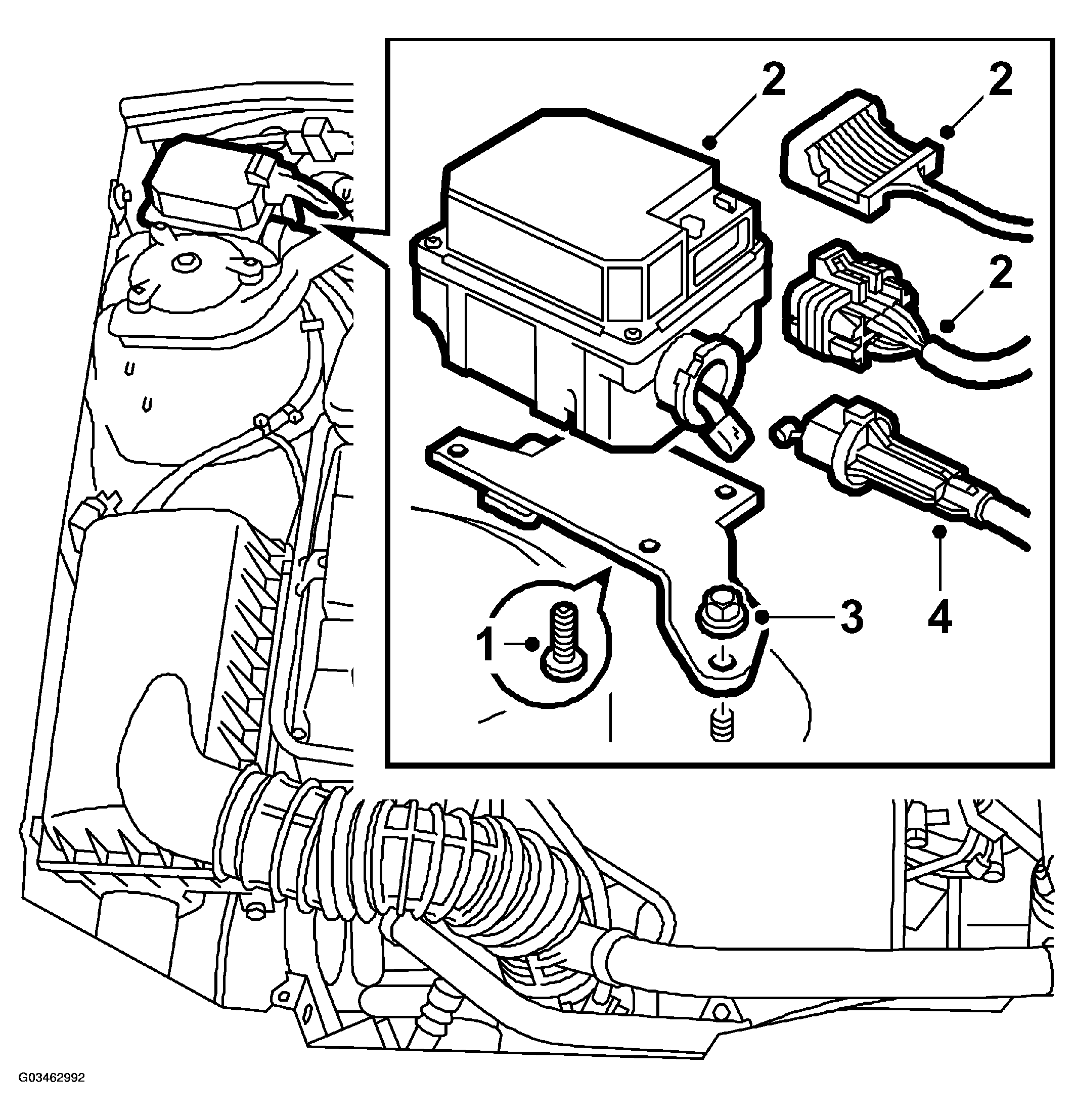

    Fig 1: Fitting Screws Securing Control Module To Mounting Bracket
    G03462992
  2. Plug in the connector and position the control module and mounting bracket.
  3. Fit and tighten the control module bracket retaining bolt.
  4. Attach the cable to the control module.
