Control module inputs for the immobilizer, bus

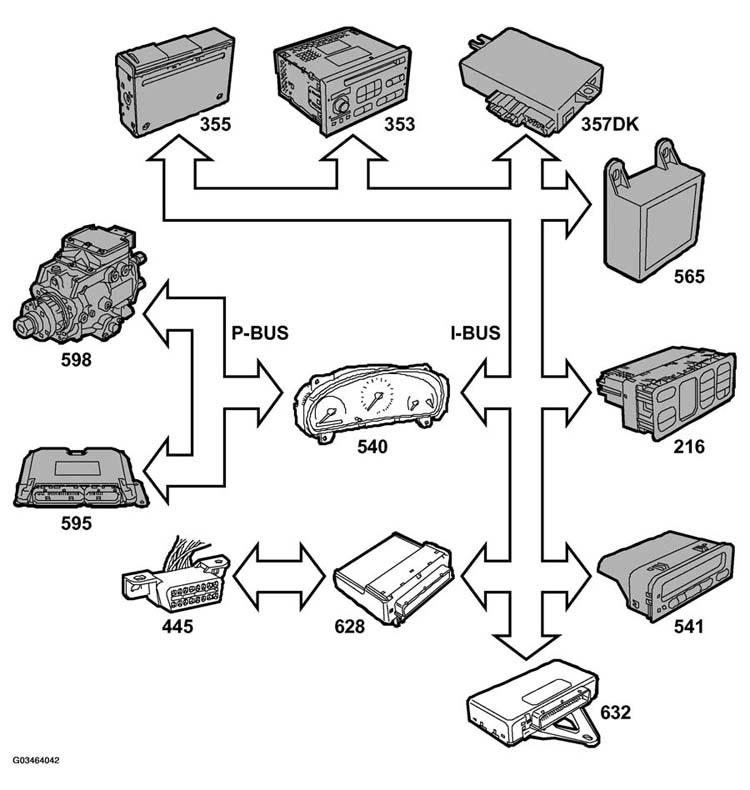

Fig 1: Identifying Control Module Inputs For Immobilizer, Bus

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Theft-protection information from MIU (540)
Diagnostics communication

For a more detailed description of the control module's input information from the bus, see BUS COMMUNICATION .
