Home >> Saab >> 2000 >> 9-3 Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Component location >> Connector H33-4

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Connector H33-4

LHD

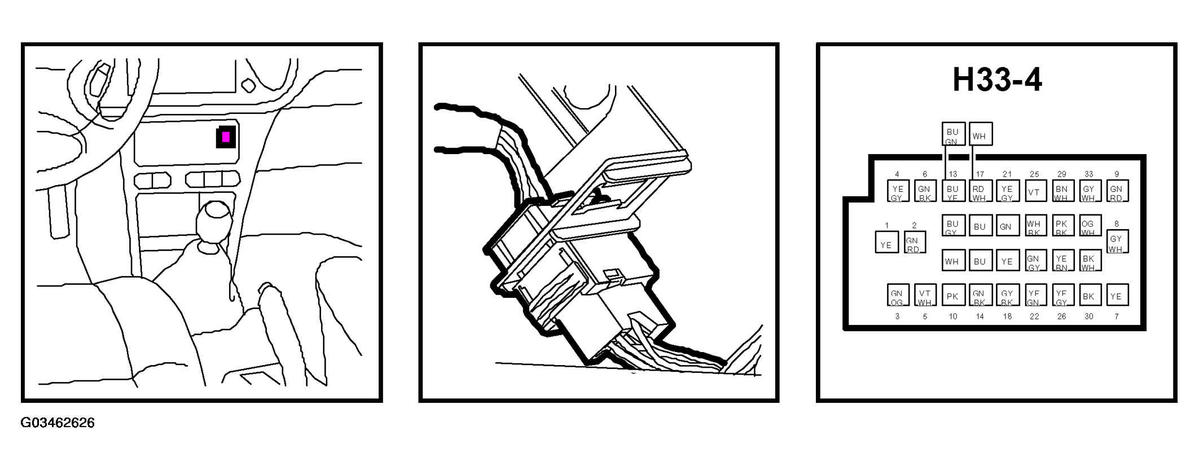

Fig 1: Identifying Connector H33-4 (LHD)

G03462626

RHD

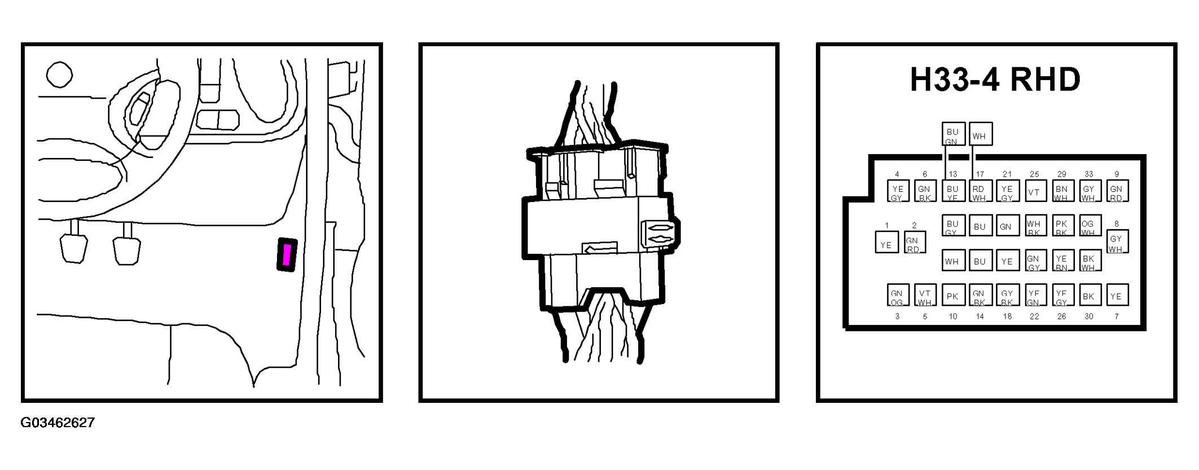

Fig 2: Identifying Connector H33-4 (RHD)

G03462627
