Coolant Temperature Sensor/Switch (For Computer): Service and Repair

WARNING: Hot coolant escaping under pressure can cause serious injury.

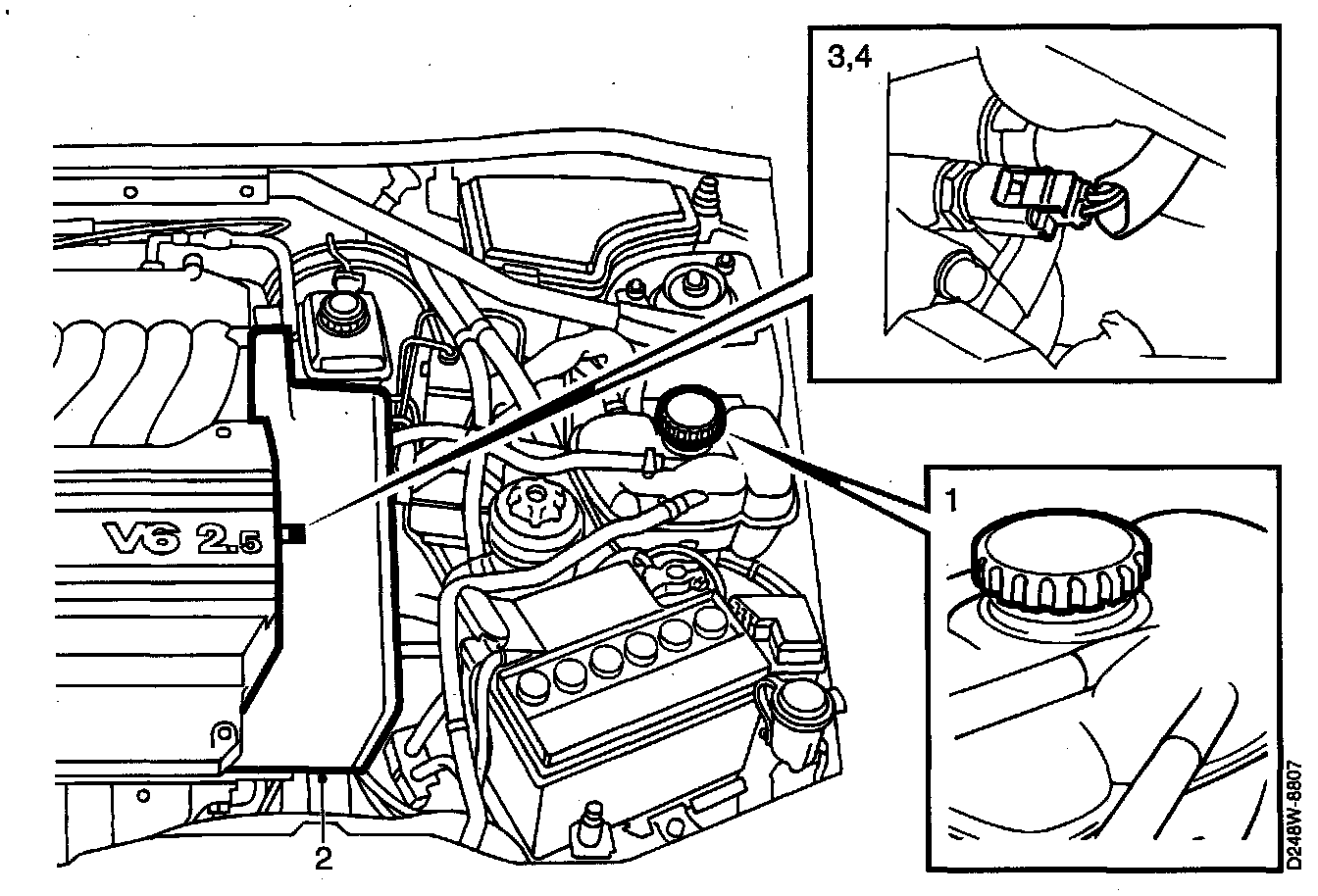

To Remove
1. Release the pressure in the cooling system by undoing the cap on the expansion tank. Screw the cap back in place.
2. Remove the two engine covers.
3. Unplug the connector.
4. Remove the sensor.

To Install
Install in reverse order.

Tightening torque: 13 Nm (9.6 ft lbs).
Top up with coolant as necessary.
