ISAT Scan Tool Menu Structure

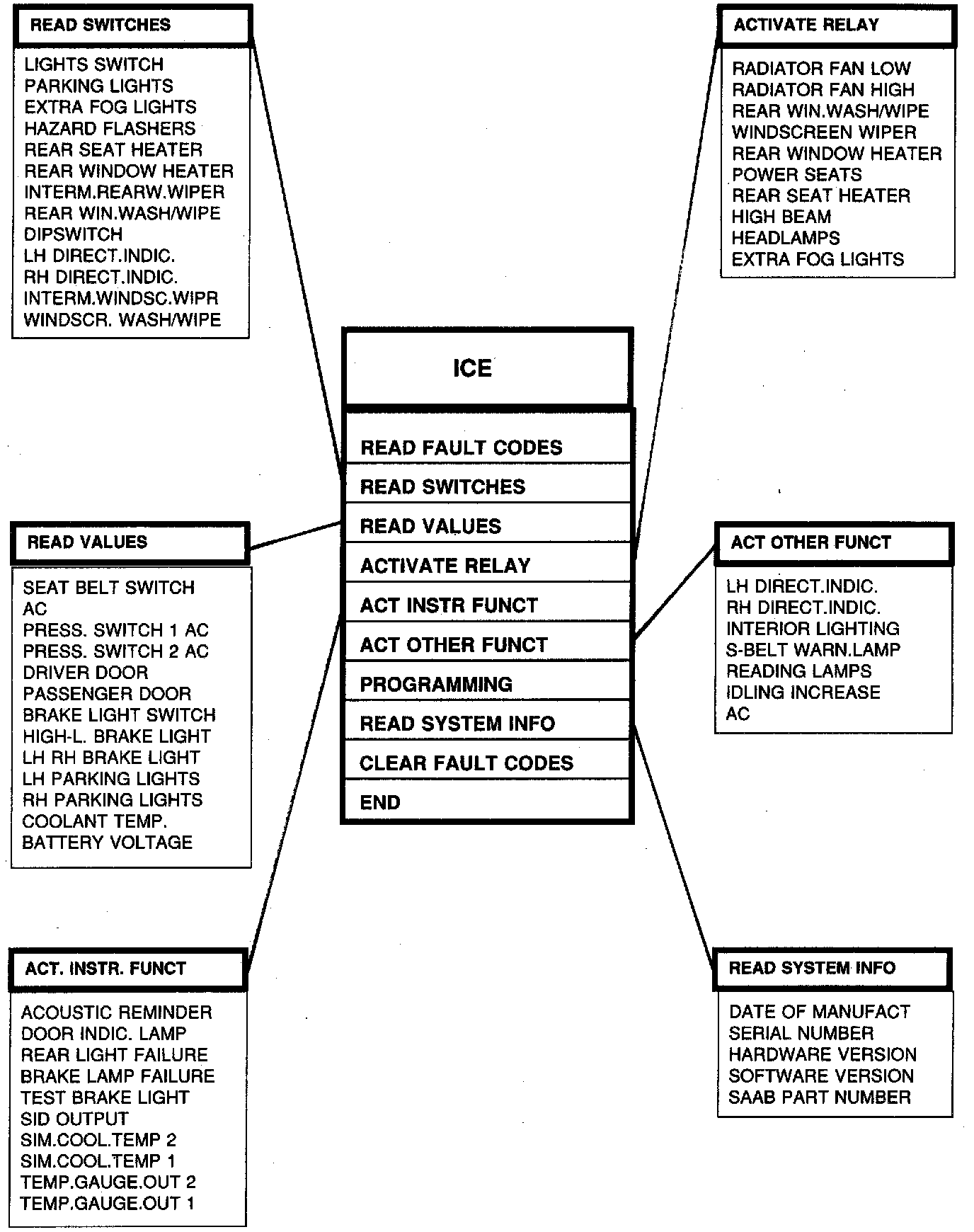

Menu Structure


When selecting activation commands, press "ON" for activation and "OFF" for deactivation. To return to normal operation it will be necessary to leave the activation menu

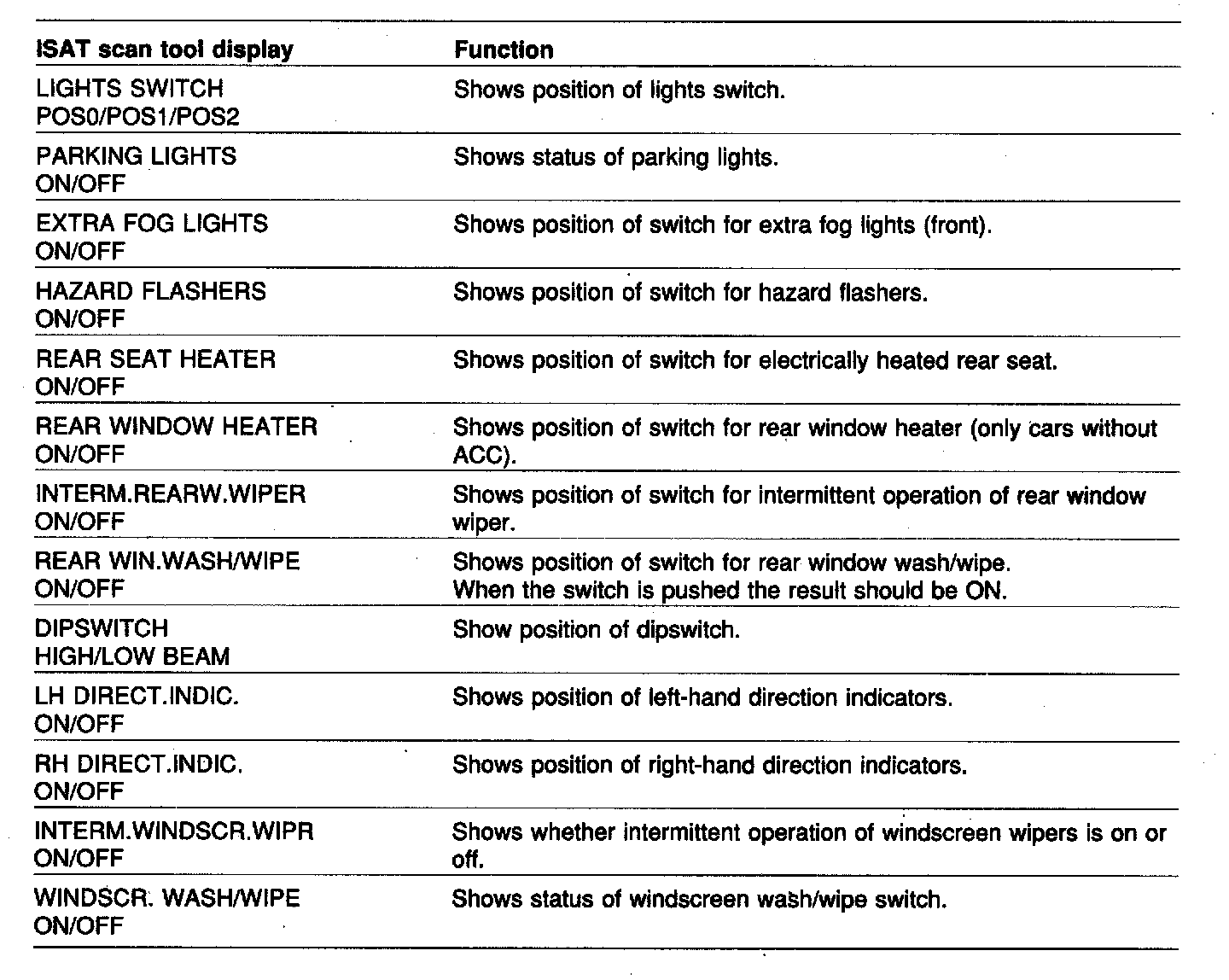

Read Switches

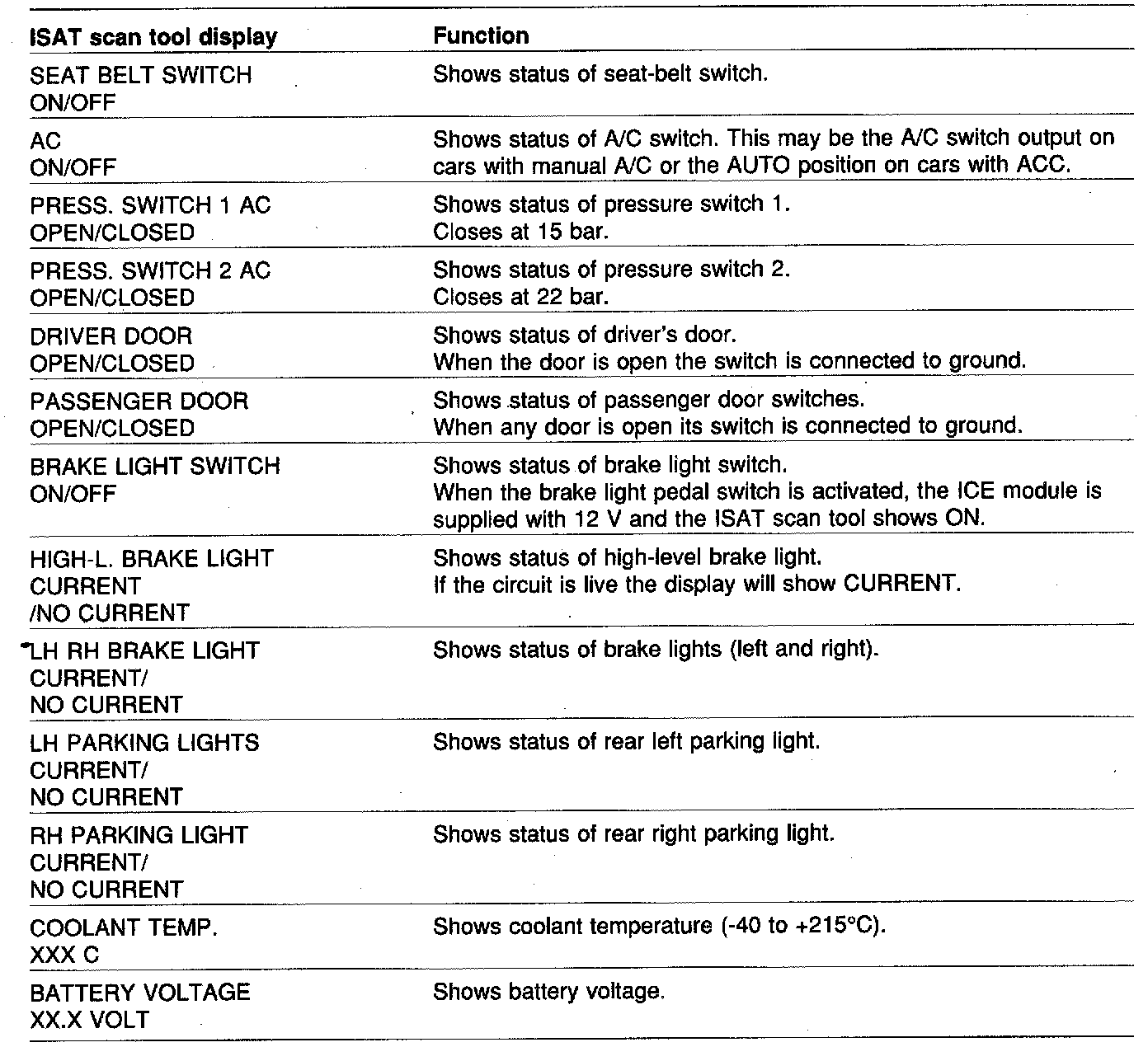

Read Values

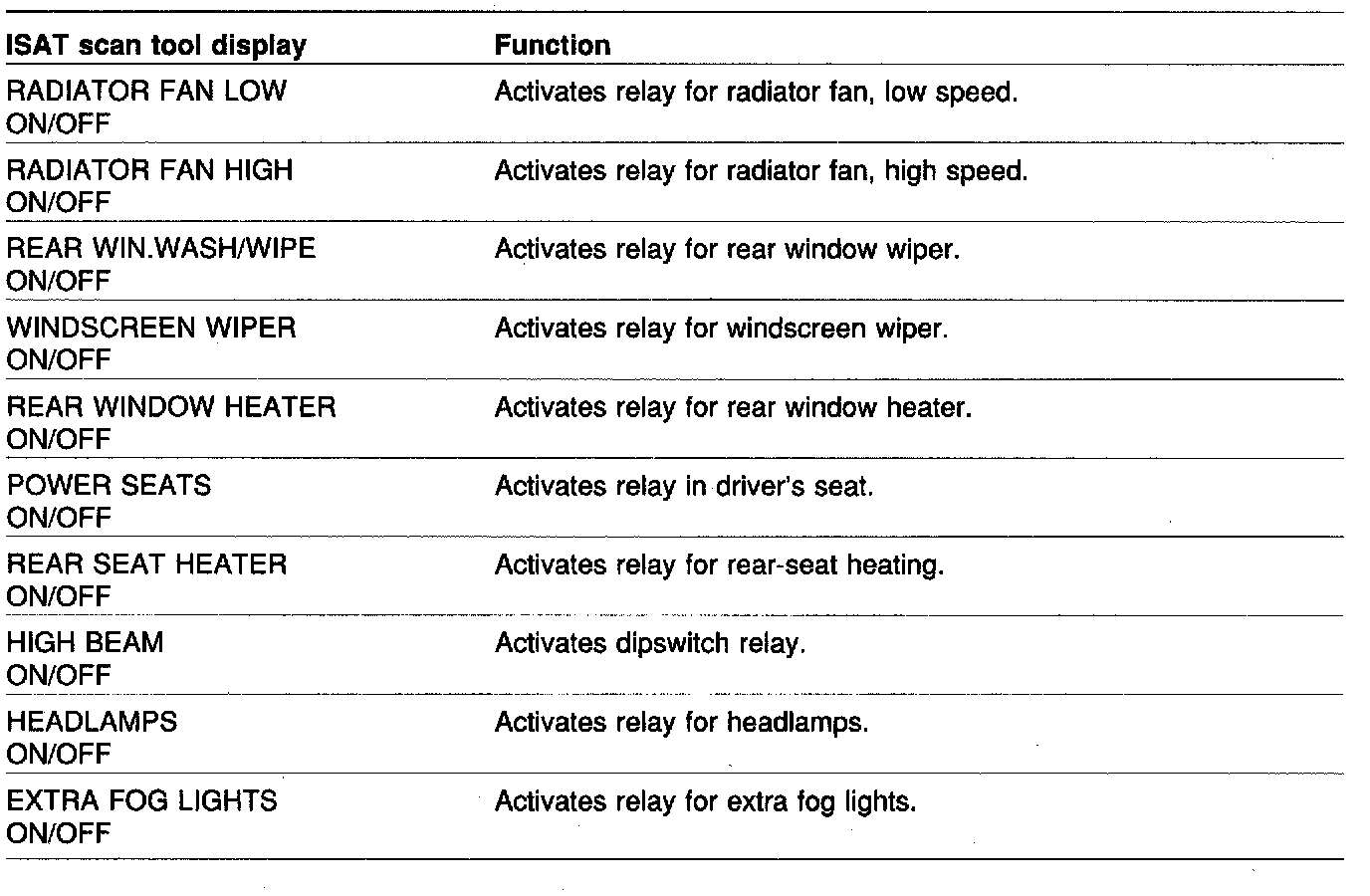

Active Relay

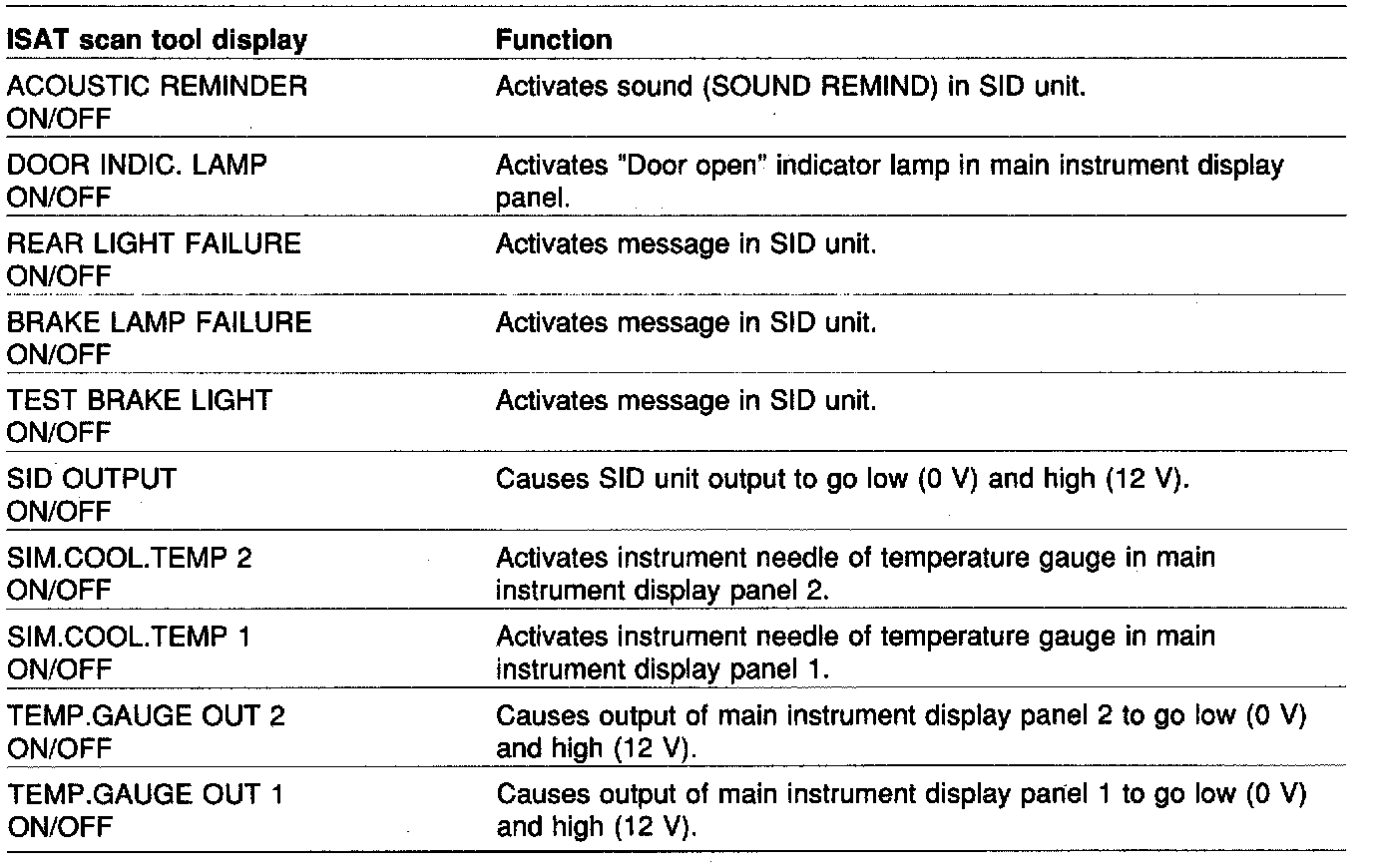

Act. Instr. Funct







Act. Other Funct







Read System Info.
