Engine Control Module
Chart 1 of 4, Pins 1-7

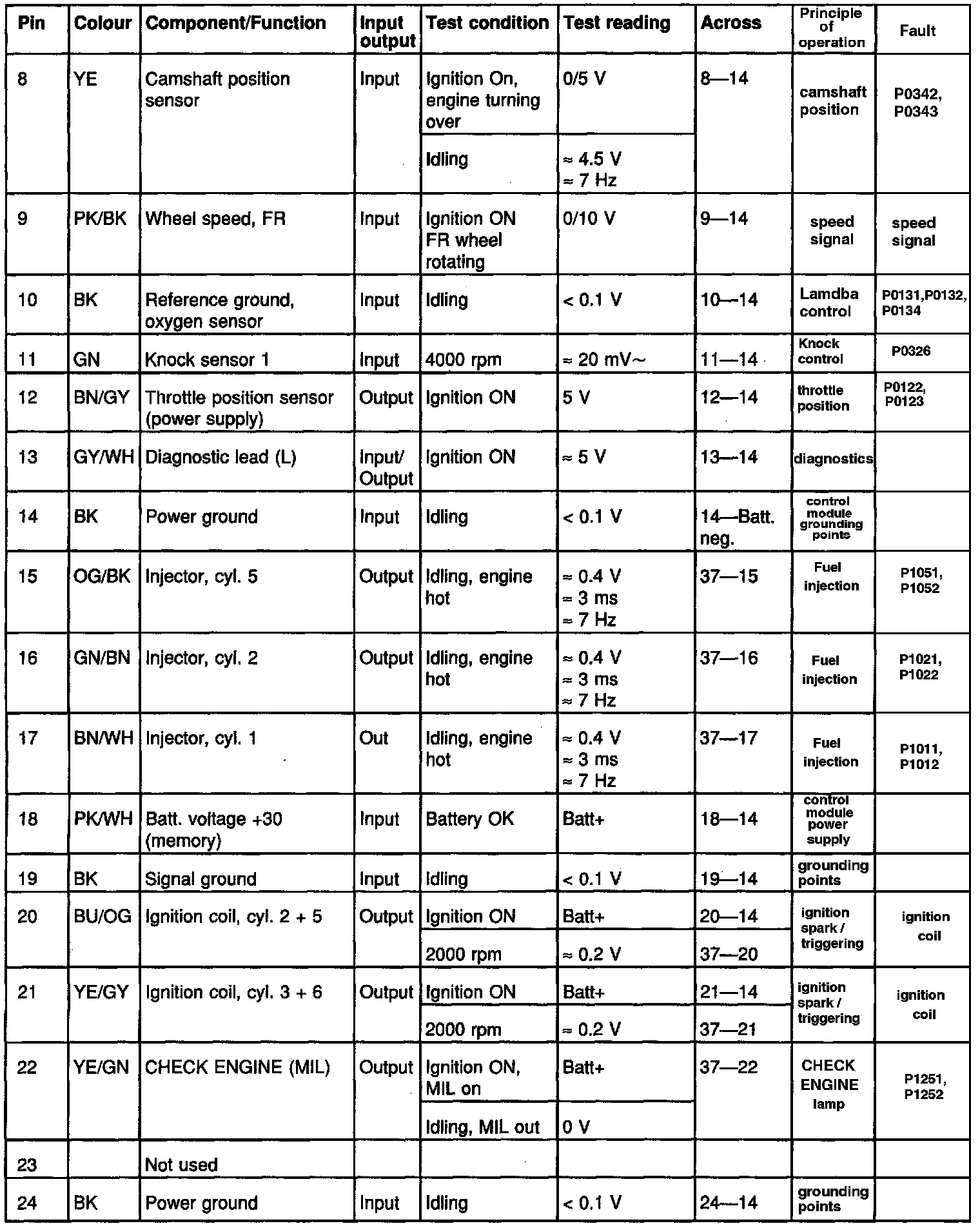

Chart 2 of 4, Pins 8-24
Chart 3 of 4, Pins 25-42
Chart 4 of 4, Pins 43-55
