Home >> Saab >> 1995 >> 900 SE Convertible V6-2498cc 2.5L DOHC >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Body Control Module >> Testing and Inspection >> Component Tests and General Diagnostics >> Test Readings, Control Module Connections >> Pin-Out Test 46-70

April 5, 2026: LEMON Manuals is launched! Read the announcement.

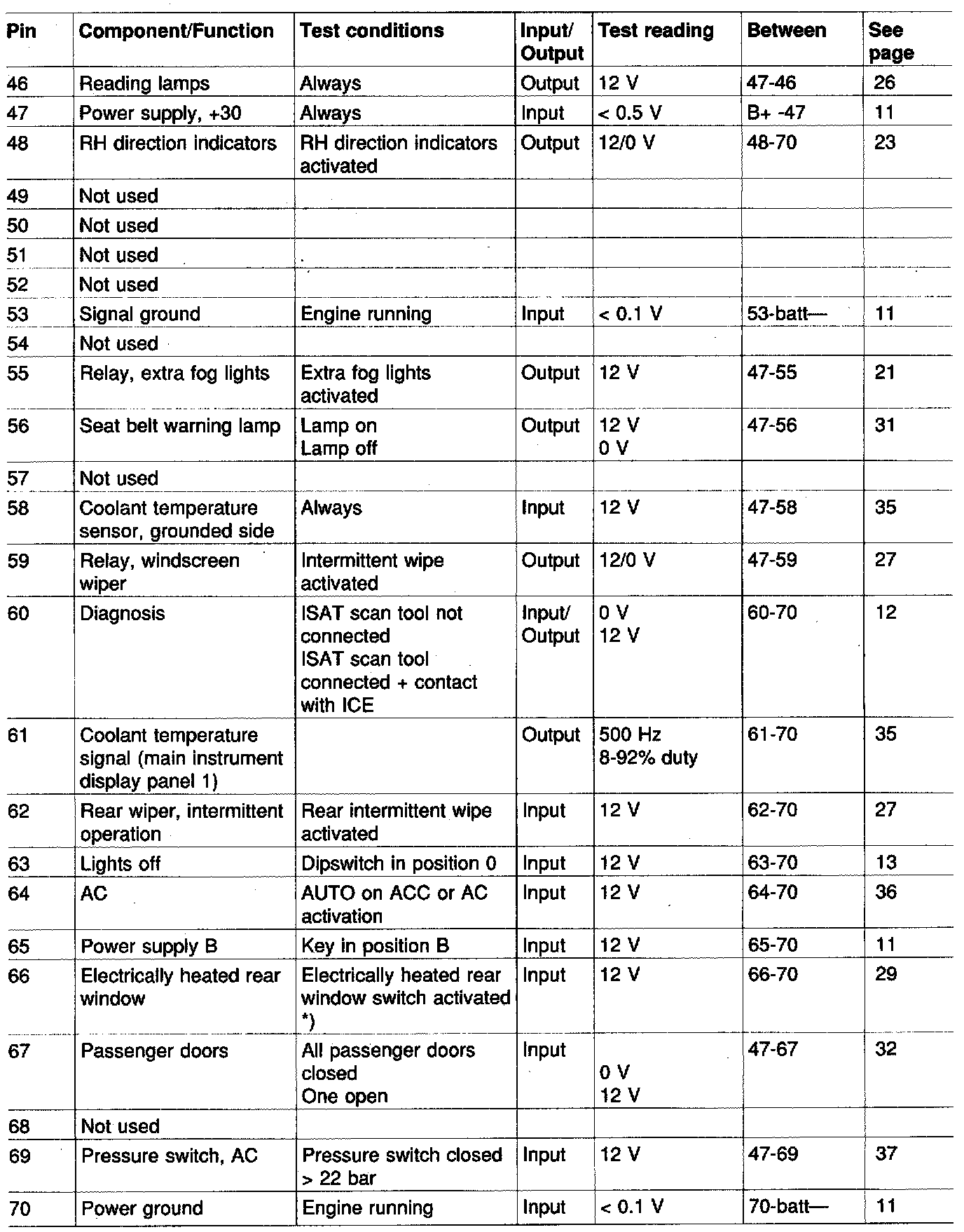

Pin-Out Test 46-70
