Fuse Box In Engine Bay

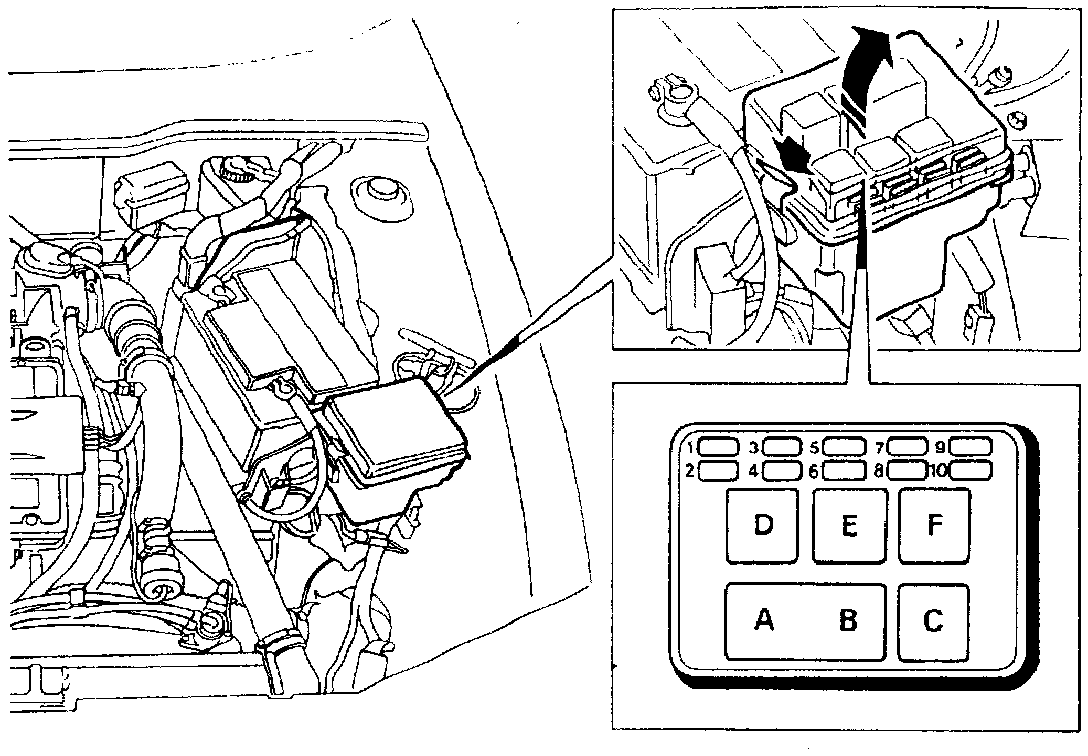

Electrical Distribution Box (Engine Compartment):

Table of fuses

Fuse No. Rating Function
1 15A Dipped beam, LH
2 15A Dipped beam, RH
3 15A Main beam, LH
4 15A Main beam, RH
5 15A Extra fog lights
6 5A Radiator fan
7 30A Radiator fan/2-speed radiator fan with low speed
8 30A 2-speed radiator fan with high speed
9 15A Ignition system
10 7.5A Wiring for mobile telephone
(Max. installation (Optional accessory)
20A)

Table of relays

Location No. Function
A 8 Main and dipped beams
B 8 Main and dipped beams
C 228B Filament monitor
D 78 Dim dipped beam
E 155 2-speed radiator fan with low speed
F 81 2-speed radiator fan with high speed
